1
Engine displacement
650
2
Year
1988
3
Trim
SWE 650 SKS - S880558
4
Parts Catalog
FRONT SUSPENSION AND SKI CLASSIC, 400 AND 650 (4914131413007A)
5
Parts Diagram
Parts Catalog
CONSOLE CLASSIC, 400 AND 650 (4914131413006A)
by
STEERING 400 AND 650 (4914131413009A)
FRONT SUSPENSION AND SKI CLASSIC, 400 AND 650 (4914131413007A)
1
BOLT
7512551
9999999
Not Available
2
BOLT
7512656
9999999
Not Available
3
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
4
SCREW
7515415
9999999
Not Available
5
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
6
SPRING COIL RED IFS
7041193
7041194-093
Not Available
7
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
8
SHOCK FR.SUSP.
7041144
9999999
Not Available
9
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
10
BOLT
7512404
$7,34 Unit Price incl. VAT
11
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
12
SLIDE-SWAYBAR
5410384
9999999
Not Available
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
9999999
Not Available
16
PIVOT-TRAILING ARM
5410382
9999999
Not Available
17
BOLT
7512557
9999999
Not Available
18
ARM-TRAILING RH
1822052
9999999
Not Available
18
ARM-TRAILING LH
1822053
9999999
Not Available
19
STOP-STEERING R.H.
5220238
9999999
Not Available
19
STOP-STEERING L.H.
5220237
9999999
Not Available
20
ARM STEERING Substituted by 5220326-067
5220326
Not Available
21
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
22
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
23
DECAL;GOLD;IFS
7072469
9999999
Not Available
23
DECAL IFS SILVER [No Longer Available]
7072468
Not Available
24
SPINDLE GREASABLE Substituted by 5130919-067
6230055
Not Available
25
FITTING-LUBE.
7080220
9999999
Not Available
26
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
27
STOP-RUBBER
5521094
9999999
Not Available
28
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
29
SCREW
7515462
9999999
Not Available
30
SKI SKAG WELD
1820267
$40,94 Unit Price incl. VAT
30
SUBSTITUTED BY 2870693
1820266
$99,74 Unit Price incl. VAT
31
SKI INDY(SWED)
1820258
9999999
Not Available
32
SCREW
7512410
7515540
$9,44 Unit Price incl. VAT
33
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
34
ROD RADIUS Substituted by 1822055-067 (Trail Special)
1822055
Not Available
35
ROD RADIUS Substituted by 1822054-067 (Trail Special)
1822054
Not Available
36
NUT JAM(10)
7542520
9999999
Not Available
37
ROD END RH
7060126
9999999
Not Available
38
STRAP-SPACER
5220178
9999999
Not Available
39
NUT FLEXLOCK
7542503
9999999
Not Available
40
BRACE; PAN
5223997
9999999
Not Available
41
NUT FLEXOC;
7542703
9999999
Not Available
42
ROD END
7060127
9999999
Not Available
43
STRAP-SPACER BOTTOM
5220227
9999999
Not Available
44
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
45
NUT LOCK(10) Substituted by 7542411
7542415
Not Available
46
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
47
BUSHING
7556509
$3,14 Unit Price incl. VAT
48
SWAY BAR
5224240
9999999
Not Available
49
BUSHING-SWAYBAR
5410383
9999999
Not Available
50
RIVET
7621433
$2,09 Unit Price incl. VAT

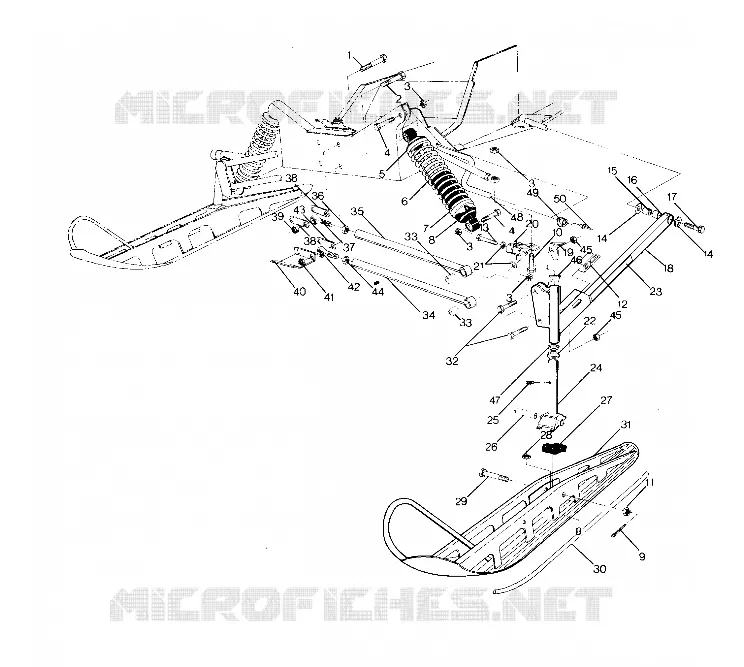

Find the detailed FRONT SUSPENSION AND SKI CLASSIC, 400 AND 650 (4914131413007A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
