1
Engine displacement
650
2
Year
1988
3
Trim
SWE 650 SKS - S880558
4
Parts Catalog
ENGINE MOUNTING 650 (4914131413019A)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING CLASSIC AND 400 (4914131413017A)
by
COOLING SYSTEM CLASSIC AND 400 (4914131413021A)
ENGINE MOUNTING 650 (4914131413019A)
1
BAFFLE ASSEMBLY
1253102
$120,74 Unit Price incl. VAT
2
WELL NUT
7541923
$10,49 Unit Price incl. VAT
3
SILENCER [No Longer Available]
5430954
Not Available
4
DECAL COOLING SYSTEM [No Longer Available]
7072131
Not Available
5
BOOT
5410403
9999999
Not Available
6
SILENCER COVRE
5430920
9999999
Not Available
7
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
8
FUEL FILTER
2530008
9999999
Not Available
9
CLAMP-HOSE
7080134
9999999
Not Available
10
CABLE-THROTTLE W/OIL
7080262
9999999
Not Available
11
HANDLE-RECOIL
5430520
Not Available
12
ENG.EC65PL-01
1211452
1211478
Not Available
13
SUPPORT;MUFFLER;REAR
5220720
9999999
Not Available
14
BOLT-CARRIAGE
7512275
9999999
Not Available
15
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
16
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
17
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
18
WASHER RUBBER
5410436
9999999
Not Available
19
BUSHING
5010192
$12,59 Unit Price incl. VAT
20
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
21
STINGER OUTLET [No Longer Available]
1260485
Not Available
22
RIVET
7621431
$2,09 Unit Price incl. VAT
23
RESONATOR [No Longer Available]
1260528
Not Available
24
SPRING; EXHAUST
7042031
7041687
$12,59 Unit Price incl. VAT
25
GASKET EXHAUST
3082510
9999999
Not Available
26
LOCK WASHER
3080530
9999999
Not Available
27
NUT
3080285
9999999
Not Available
28
MANIFOLD WELD Substituted by 1260477
1260526
Not Available
29
MUFFLER Substituted by 1260519
1260527
Not Available
30
EXHAUST MOUNT BALL
5430687
9999999
Not Available
31
BRACKET
5220486
9999999
Not Available
32
RIVET
7621429
$2,09 Unit Price incl. VAT
33
PLATE ENG. RH
5220705
9999999
Not Available
34
PLATE ENG. LH
5220704
Not Available
35
SCREW
7512533
9999999
Not Available
36
WASHER
7555740
$3,14 Unit Price incl. VAT
37
MOUNT ENGINE
5410390
9999999
Not Available
38
SPACER (MTR.MT.)
5332778
9999999
Not Available
39
WASHER
7555801
$7,34 Unit Price incl. VAT
40
FLEX LOC NUT
7542507
9999999
Not Available
41
MOUNT
3110022
9999999
Not Available
42
NUT LOCK(10) Substituted by 7542411
7542415
Not Available
43
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
44
NUT LOCK
7542403
9999999
Not Available
45
WASHER
7555721
$2,09 Unit Price incl. VAT
46
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
47
BOLT
7512539
$7,34 Unit Price incl. VAT
48
MOUNT FRONT Substituted by 1011502-067
1011502
Not Available
49
BOLT(10) Substituted by 7512457
7512491
Not Available
51
STOP
3110023
9999999
Not Available
52
NUT JAM
7542432
$7,34 Unit Price incl. VAT
53
BRKT INTAKE SILENCER [No Longer Available]
5210928
Not Available
54
RIVET
7661625
7661638
$2,09 Unit Price incl. VAT
55
BRKT AIR SILENCER BLK. Substituted by 5223973-067
5223973
Not Available
56
SCREW
7512279
$1,56 Unit Price incl. VAT
57
WASHER
7552604
$3,14 Unit Price incl. VAT
58
BRACKET
5220418
9999999
Not Available
59
BOLT
7512232
$2,09 Unit Price incl. VAT
60
BOLT
7512240
9999999
Not Available
61
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
62
HOSE;IMPULSE
5521132
9999999
Not Available
63
BUSHING
5430261
$13,64 Unit Price incl. VAT
64
WASHER
5210748
$7,34 Unit Price incl. VAT
65
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
66
BOLT
7512565
9999999
Not Available
67
TANK OIL
5430921
9999999
Not Available
68
CAP-OIL TANK [No Longer Available]
5430594
Not Available
69
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
70
VENT-TANK
5430579
9999999
Not Available
71
KIT-TANK VENT
2200190
9990000
Not Available
72
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
74
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
75
GROMMET RUBBER
5410021
9999999
Not Available
76
BRACKET
5223985
Not Available
77
SCREW
7512116
9999999
Not Available
78
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
79
DECAL OIL LEVEL [No Longer Available]
7072160
Not Available
80
LIMITER Substituted by 1011503-067
1011503
Not Available
82
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
83
PRESSURE CAP
2511155
9999999
Not Available
84
FUEL SHUT OFF VALVE
7052039
9999999
Not Available
85
DECAL SHUT-OFF VALVE [No Longer Available]
7072151
Not Available
86
DECAL SPEC.(650) [No Longer Available]
7072497
Not Available
87
BRACKET INT.SILENCER [No Longer Available]
5210977
Not Available
88
FOAM INTAKE
5810377
1253107
$68,24 Unit Price incl. VAT
89
CLIP
7080278
9999999
Not Available
90
AIR BOX CLIP
7670055
$11,54 Unit Price incl. VAT

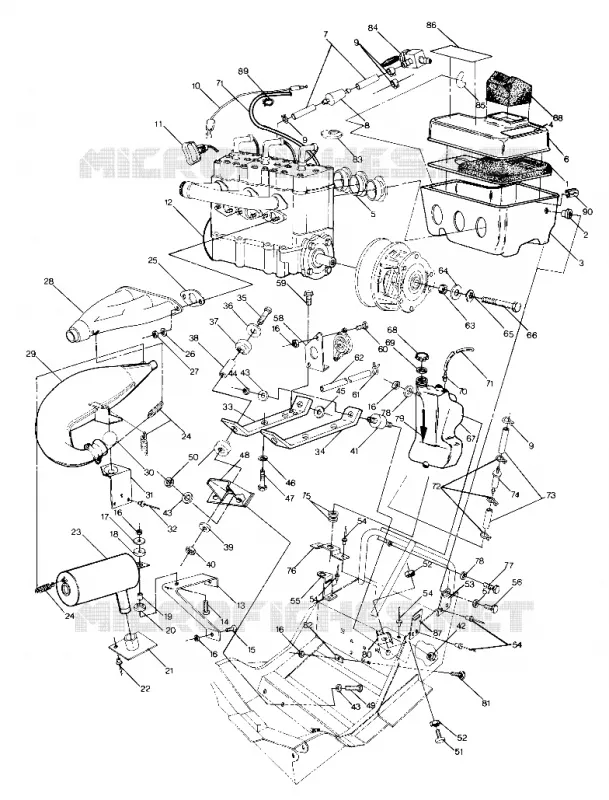

Find the detailed ENGINE MOUNTING 650 (4914131413019A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
