1
Engine displacement
700
2
Year
1996
3
Trim
SLT 700 - B964166
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CYLINDER MANIFOLD SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392B014)
by
STARTING MOTOR SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392C006)
COOLING SYSTEM
1
FITTING; PIPE
7052071
9999999
Not Available
2
CLAMP HOSE SS
7080475
9999999
Not Available
3
HOSE WATER OUTLET
5411140
9999999
Not Available
4
HOSE PUMP OUTLET
5411049
9999999
Not Available
5
FITTING TEE
5431784
9999999
Not Available
6
CLAMP HOSE S.S.
7080476
$11,54 Unit Price incl. VAT
7
FITTING SCREEN
7052128
9999999
Not Available
8
HOSE INLET
5411050
9999999
Not Available
9
FITTING INJECTOR
5020747
9999999
Not Available
10
FITTING WATER INLET
5020668
9999999
Not Available
11
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
12
CONDUIT;FLEX;1.250ID
552128763
Not Available
13
BOLT
7516727
9999999
Not Available
14
BOLT S.S(10)
7516725
9999999
Not Available
15
FLUSH KIT(NON-FICHT ENGINES)
2871443
9999999
Not Available
16
WASHER; FLAT; S.S.
7555856
9999999
Not Available
17
WASHER LOCKSS.
7552611
9999999
Not Available
18
BOLT S.S.(10)
7517004
9999999
Not Available
19
GASKET EXH.FLNG
5811045
9999999
Not Available
20
FITTING DRAIN
5020746
9999999
Not Available
21
MANIFOLD EXH.
1260694
Not Available
22
HOSE WATER
8450054100
Not Available
23
SCREW SHOULDER S.S.
7515149
9999999
Not Available
24
WASHER
7555836
9999999
Not Available
25
SEAL O-RING/THERMO/FITTING
5410860
9999999
Not Available
26
VALVE; POP-OFF
5431588
9999999
Not Available
27
THERMOSTAT; (143 F.)
7051008
9999999
Not Available
28
GASKET; THERMOSTAT
5410781
9999999
Not Available
29
SPRING COMPRESSION
7041310
9999999
Not Available
30
COVER THERMOSTAT
5131008
9999999
Not Available

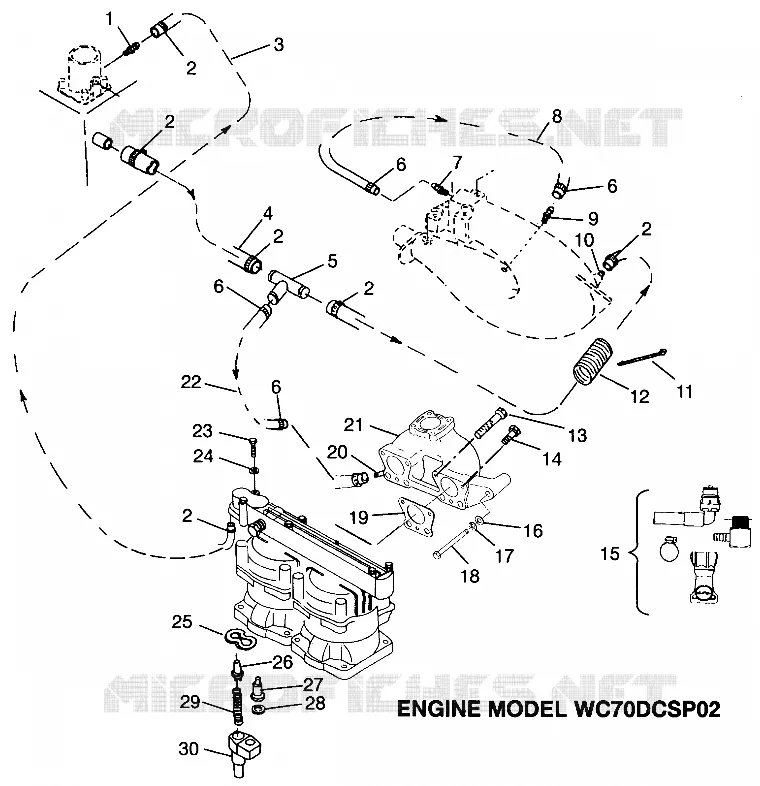

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
