1
Engine displacement
700
2
Year
1996
3
Trim
SLT 700 - B964166
4
Parts Catalog
FUEL TANK W/COMBINATION FUEL PICK-UP AND SENDER SLT 700 B964166 AND INTL. (4933923392A009)
5
Parts Diagram
Parts Catalog
by
FUEL SYSTEM SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A010)
FUEL TANK W/COMBINATION FUEL PICK-UP AND SENDER SLT 700 B964166 AND INTL. (4933923392A009)
1
BOLT SS.
7512045
9999999
Not Available
2
SENDER/PICKUP ASM;FUEL;SLT
2410046
9999999
Not Available
3
GASKET
5810858
9999999
Not Available
4
FUELTANK 11 GAL.
5432233
Not Available
5
STRAP RUBBER
5410854
9999999
Not Available
6
HOOK D S.S.
5224577
9999999
Not Available
7
PAD; FUEL TANK
5810926
9999999
Not Available
8
RIVET
7621479
$3,66 Unit Price incl. VAT
9
CLIP;STRAP
5240134
9999999
Not Available
10
CLAMP HOSE S.S.(10)
7080451
$13,64 Unit Price incl. VAT
11
HOSE FUEL-FILL
5410936
9999999
Not Available
12
SEAL FUEL INLET
5810931
9999999
Not Available
13
WASHER; FLAT; S.S.
7555837
9999999
Not Available
14
INLET FUEL BLK(PWC)
5432613070
Not Available
15
RIVET (50)
7621491
9999999
Not Available
16
GASKET FUEL CAP
5810871
9999999
Not Available
17
CAP ASMFUEL
2653009
9999999
Not Available
18
COUPLING
7080442
Not Available
19
CHAIN
7080440
9999999
Not Available
20
INLET ASM;FUEL CAP
2872029
9999999
Not Available
20
SCREW
7511873
9999999
Not Available

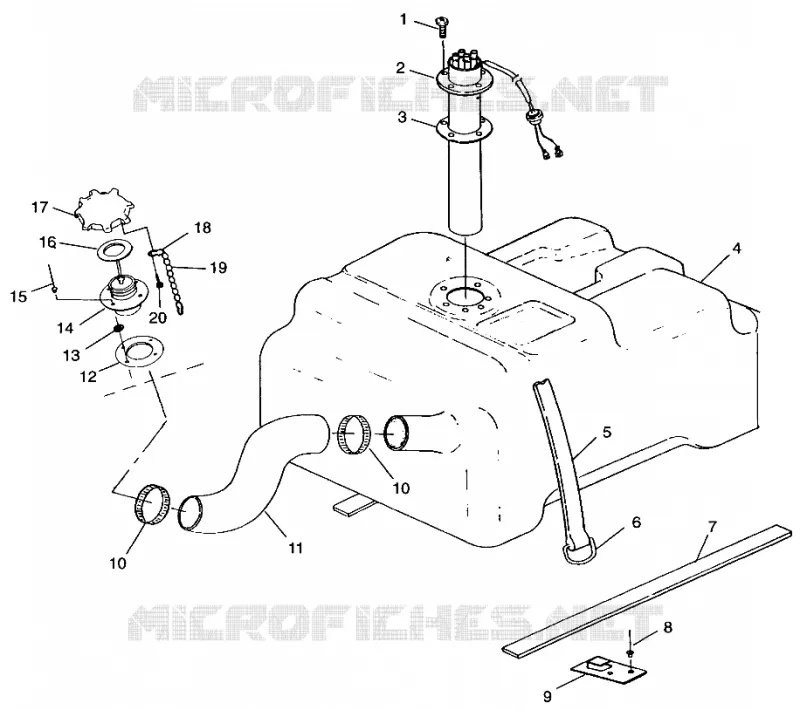

Find the detailed FUEL TANK W/COMBINATION FUEL PICK-UP AND SENDER SLT 700 B964166 AND INTL. (4933923392A009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
