1
Engine displacement
700
2
Year
1996
3
Trim
SLT 700 - B964166
4
Parts Catalog
STEERING SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A012)
5
Parts Diagram
Parts Catalog
SEAT SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A011)
by
EXHAUST SYSTEM SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392B004)
STEERING SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A012)
1
PIN; RETAINING
7661628
9999999
Not Available
2
LEVER THROTTLE CONTROL
5431397
9999999
Not Available
3
BLOCKTHROTTLE CONTROL
5431396
9999999
Not Available
4
CABLE THROTTLE
7080577
9999999
Not Available
5
ALARM HI-TEMP/LO-OIL
4040059
9999999
Not Available
6
PAD H BAR CARIB.BLUE
5431629196
Not Available
7
SCREW; SS.
7512047
9999999
Not Available
8
SW. STOP W/TETHER
4110154
Not Available
9
GRIP;HBAR;PURP.VELVET
5410638194
Not Available
10
PLUG HANDGRIP BLK.
7010082070
Not Available
11
CAPLUG
7080467
9999999
Not Available
12
SCREW
7516602
9999999
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
SCREW; S.S.
7516601
9999999
Not Available
15
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
16
BOLT SHOULDER(10)
7515387
9999999
Not Available
17
PLATE GROMMET
5240334
9999999
Not Available
18
WASHER; FLAT; S.S.
7555831
9999999
Not Available
19
NUT HEX S.S.(10)
7542335
Not Available
20
GROMMET CABLE 3-HOLE
5411028
9999999
Not Available
21
BUSHING STRG.SUPPORT
5431382
9999999
Not Available
22
SUPPORT STRG.HUB BLK.
5130974067
Not Available
23
PLATE BOLT
1060112
9999999
Not Available
24
ARM STRG.
5131127
Not Available
25
WASHER LOCK S.S.
7552610
9999999
Not Available
26
BOLT; S.S.
7515375
9999999
Not Available
27
NUT HEX S.S.
7542454
9999999
Not Available
28
WASHER FLAT
7555841
9999999
Not Available
29
CUSHION PLUNGER
5521341
Not Available
30
PLUNGER LATCH
5020753
9999999
Not Available
31
BUSH.
7555875
9999999
Not Available
32
POST STEERING W/H BAR
1823175
9999999
Not Available
33
RING RETAINING EXT. S.S.
7710426
9999999
Not Available
34
WASHER; FLAT; S.S.
7555840
9999999
Not Available
35
SCREW; SET; S.S.
7515115
9999999
Not Available
36
THROTTLE CONTROL ASM.
2010122
9999999
Not Available

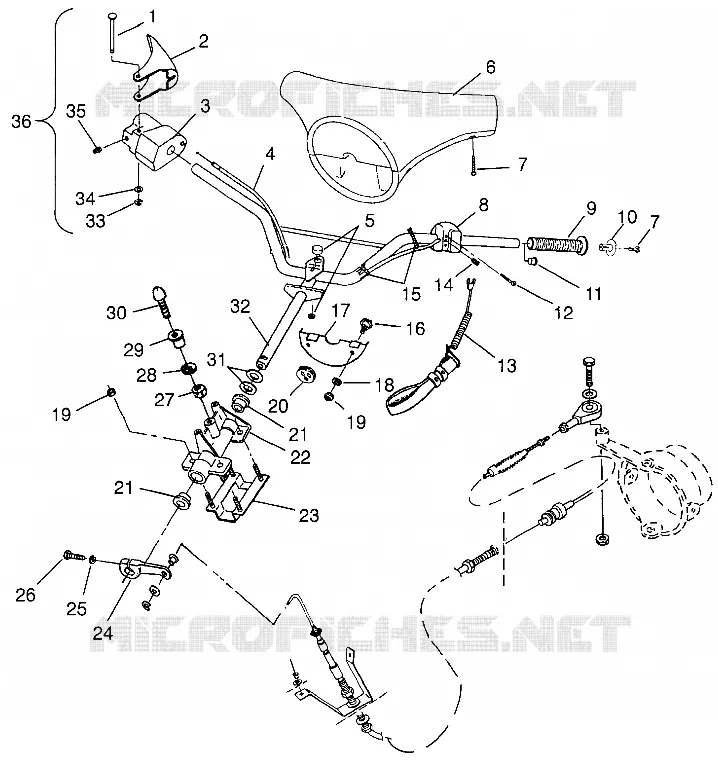

Find the detailed STEERING SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
