1
Engine displacement
1000
2
Year
2017
3
Trim
RANGER XP 1000 ALL OPTIONS
4
Parts Catalog
DASHBOARD
5
Parts Diagram
Parts Catalog
CENTER MIRROR
by
DECALS, COMMON
DASHBOARD
1
1
1
2
2
2
3
3
4
5
5
5
6
7
8
9
10
10
10
11
12
12
13
14
15
15
15
15
16
17
18
19
1
2
3
4
5
6
7
8
1
STORAGE DASH; GLOSS BLACK;
5439017070
Not Available
1
DASH-STORAGE RANGER ROUTERED
5452228070
Not Available
1
DASH-STORAGE RNGR ROUTERED BLK
5439824070
Not Available
2
PANEL-DASH CONTROL HTR RTR BLK
5451956070
Not Available
2
PANEL-DASH CONTROLS ROUTER BLK
5451955070
Not Available
2
CONTROLS DASH PANEL; GLOSS BLACK
5439013070
Not Available
3
DASH PANEL KIT; LOWER;
2207130
9999999
Not Available
3
K-DASH PANEL LWR RGR NSTAR
2207261
9999999
Not Available
4
GLOVEBOX COVER; TEXTURED; GLOSS BLACK
5453543070
Not Available
5
DASH PANEL KIT; UPPER; RGR HIGH LIFTER
2207133
$309,74 Unit Price incl. VAT
5
DASH PANEL KIT; UPPER; XP
2207132
$293,99 Unit Price incl. VAT
5
DASH PANEL KIT; UPPER; RGR NORTHSTAR
2207260
$293,99 Unit Price incl. VAT
6
BRKT-MNT DASH GALV
5258201
9999999
Not Available
7
BRKT-MNT DASH GALV
5258205
9999999
Not Available
8
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
9
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
10
BOLT
7519650
$7,34 Unit Price incl. VAT
11
RUBBER GROMMET; MOUNT; 25 IN.
5412504
$7,34 Unit Price incl. VAT
12
CUP HOLDER
5436836
$36,74 Unit Price incl. VAT
13
GLOVEBOX SEAL
5521937
9999999
Not Available
14
SCREW
7512026
$2,09 Unit Price incl. VAT
15
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
16
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
17
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
18
SHIFT LEVER GROMMET
5414249
$41,99 Unit Price incl. VAT
19
HVAC COVER; GLOSS BLACK
5439648070
Not Available

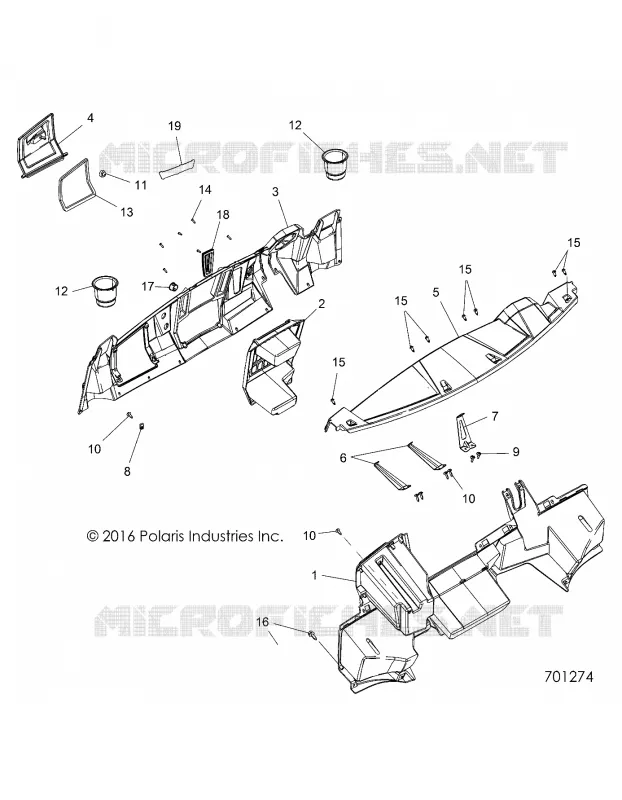

Find the detailed DASHBOARD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
