CHASSIS, CAB FRAME for POLARIS RANGER XP 1000 ALL OPTIONS from 2017

CHASSIS, CAB FRAME

1

CAB FRAME WELD; REAR; MUD; MATTE BLACK

1021899458

Not Available

1

CAB FRAME WELD; REAR; MATTE BLACK

1021852458

Not Available

2

CAB FRAME WELD; FRONT; LEFT; MATTE BLACK

1022353458

Not Available

2

CAB FRAME WELD; FRONT; LEFT; MUD; MT BLK

1022415458

Not Available

3

CAB FRAME WELD; FRONT; RIGHT; 17; MT BLK

1022354458

Not Available

3

CAB FRAME WELD FRONT RIGHT MUD MT BLK

1022416458

Not Available

4

HIP BOLSTER TUBE; MATTE BLACK

5338917458

Not Available

5

BOLSTER WELD; RIGHT; MATTE BLACK

1022617458

Not Available

6

BOLSTER WELD; LEFT; MATTE BLACK

1022616458

Not Available

6

WELD-BOLSTER SEAT BLK

1022618458

Not Available

7

WINDSHIELD PLATE WELD; UPPER; CAB; BLACK

1023302458

Not Available

7

WINDSHIELD MOUNT PLATE; UPPER; MT BLK

5262569458

Not Available

8

ROPS (ROPS) GRAB HANDLE GLOSS BLK

5450844070

Not Available

9

GLOSS BLACK HEADREST

5439110070

Not Available

10

HEX FLANGE SCREW 10 MM X 1.25 MM X 80 MM

7519363

7528444

$4,19 Unit Price incl. VAT

11

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

12

SOCKET HEAD SCREW 10 MM X 1.5 MM X 35 MM

7519959

$3,14 Unit Price incl. VAT

13

NYLOC NUT; 10 MM X 1.5 MM

7547268

$2,09 Unit Price incl. VAT

14

HEX FLANGE SCREW; 8 MM X 1.25 MM X 20 MM

7519133

$3,14 Unit Price incl. VAT

15

FENDER PLUG; REAR

7671178

9999999

Not Available

16

BOLT

7519650

$7,34 Unit Price incl. VAT

17

RIVET

7621460

$2,09 Unit Price incl. VAT

18

HEX FLANGE BOLT; 10 MM X 1.5 MM X 20 MM

7518460

$3,14 Unit Price incl. VAT

19

WASHER

7555923

$4,19 Unit Price incl. VAT

20

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

21

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

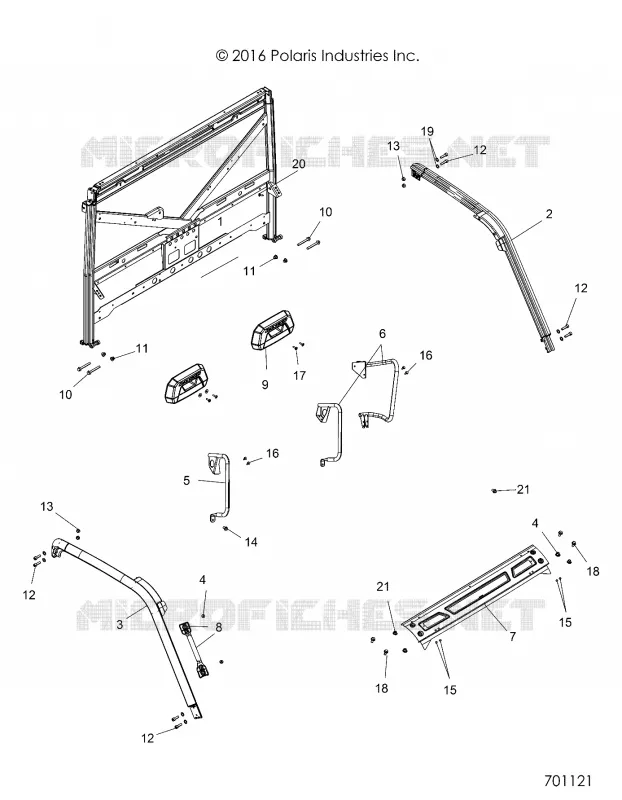

Find the detailed CHASSIS, CAB FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
