Engine displacement
1000
2
Year
2017
3
Trim
RANGER XP 1000 ALL OPTIONS
4
Parts Catalog
CHASSIS, MAIN FRAME
5
Parts Diagram
Parts Catalog
CHASSIS, CAB FRAME
by
DRIVE TRAIN, CLUTCH COVER AND DUCTING
CHASSIS, MAIN FRAME
1
1
1
2
3
4
5
6
7
7
7
7
8
9
10
10
11
12
13
14
15
16
17
17
18
19
20
21
1
2
3
4
5
6
6
7
8
9
9
10
10
11
12
13
14
15
16
1
MAIN FRAME WELD; MATTE BLACK
1022513458
Not Available
1
MAIN FRAME WELD; MUD; MATTE BLACK; RGR
1022614458
Not Available
1
MAIN FRAME WELD; MUD; MATTE BLACK; RGR
1023383458
Not Available
2
CAB AND SEAT BASE WELD; BLACK
1019513329
Not Available
3
CAB SUPPORT WELD; REAR; BLACK
1020588329
Not Available
4
FLOOR SUPPORT; LEFT; MATTE BLACK
1022619458
Not Available
5
FLOOR SUPPORT; RIGHT SIDE; MATTE BLACK
1022620458
Not Available
6
WINDSHIELD MOUNT PLATE LOWER GLOSS BLACK
5450344070
Not Available
7
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
8
HEX FLANGE SCREW 10 MM X 1.25 MM X 30 MM
7519059
$5,76 Unit Price incl. VAT
9
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
10
HEX FLANGE SCREW 10 MM X 1.25 MM X 80 MM
7519363
7528444
$4,19 Unit Price incl. VAT
11
ROCKER WELD; LEFT; BLACK
1019087329
Not Available
12
ROCKER WELD; RIGHT; BLACK
1019088329
Not Available
13
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
14
BRKT-PLATE CTR PIN MT TTN
5260353
9999999
Not Available
15
BRKT-ROUTING TRAY;BLK
5257333329
Not Available
16
TRAY-ROUTING BLK
5450841070
Not Available
17
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
18
WASHER
7556153
$3,66 Unit Price incl. VAT
19
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
20
GROMMET-ELEC CAB SLIT
5415049
$7,34 Unit Price incl. VAT
21
SCR-TFTX-M8X1.25X30 ZOD
7520121
$10,49 Unit Price incl. VAT

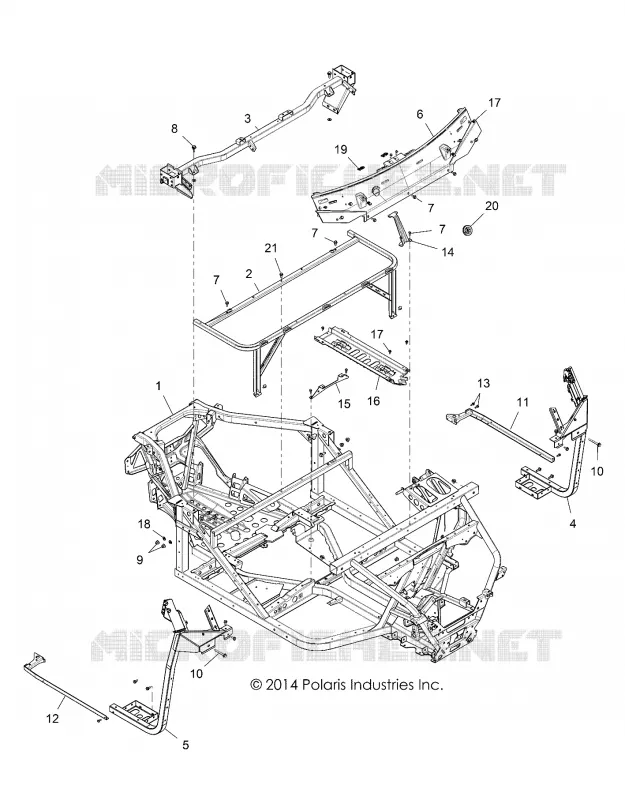

Find the detailed CHASSIS, MAIN FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
