Parts Catalog
WIRE HARNESS
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
HEADLIGHT AND TAILLIGHT
WIRE HARNESS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
1
CHASSIS HARNESS; CAB
2413141
9999999
Not Available
2
FUSIBLE LINK KIT; 0.8 MM
2202607
$73,49 Unit Price incl. VAT
3
NUT HEX S.S.
7541931
$9,44 Unit Price incl. VAT
4
FUSIBLE KIT LINK; 2 MM; 6 MM; RING
2203632
9999999
Not Available
5
DECAL-FUSEBLOCK BRUTUS
7181558
9999999
Not Available
6
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
7
GROMMET-CHASSIS HARNESS
5414435
$68,24 Unit Price incl. VAT
8
SEALED CIRCUIT BREAKER; 40 AMP
4013881
$125,99 Unit Price incl. VAT
9
TVS-30VOLT
4013200
$157,49 Unit Price incl. VAT
10
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT
11
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
12
RELAY-SPST SEALED
4011407
$104,99 Unit Price incl. VAT
13
SINGLE POLE DOUBLE THROW RELAY
4011284
$68,24 Unit Price incl. VAT
14
STRAP-PANDUIT DBL LOOP 260MM
7081916
$9,44 Unit Price incl. VAT
15
BOOT-CIRCUT BREAKER;RED
4010778
$10,49 Unit Price incl. VAT
16
FUSE PARK 20 AMP (10)
2434017
4012811
$15,74 Unit Price incl. VAT
17
MAIN FUSE; 30 AMP
2434015
$15,74 Unit Price incl. VAT
18
DIODE-6AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
19
FUSE-MINI BLADE;15 AMP
2410280
4010859
$15,74 Unit Price incl. VAT
20
BOX HARNESS; BOBCAT SUPPLY
2412932
9999999
Not Available
21
BOX HARNESS
2412229
$272,99 Unit Price incl. VAT
22
MICRO RELAY 35A
4010948
$62,99 Unit Price incl. VAT
23
SEALED CIRCUT BREAKER; 20 AMP
2410881
$141,74 Unit Price incl. VAT
24
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
25
RELAY SOLID STATE 9A
4012829
4081742
$141,74 Unit Price incl. VAT
26
BOLT-M6X1.0X35 HXFLG/SH-OLV D
7518612
$9,44 Unit Price incl. VAT
27
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
28
HARNESS-HEADLIGHT
2412227
$47,24 Unit Price incl. VAT
29
PLASTIC DART CLIP; NYLON
7670088
$3,14 Unit Price incl. VAT
30
ELECTRONIC CONTROL UNIT (ECU) BASE
4012838
$892,49 Unit Price incl. VAT
31
BOOT-OIL PRESSURE SWITCH
5451468
9999999
Not Available
32
X-MAS TREE CLIP
7670101
$4,19 Unit Price incl. VAT
33
HARNESS-KEY SWITCH
2412226
9999999
Not Available
34
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT

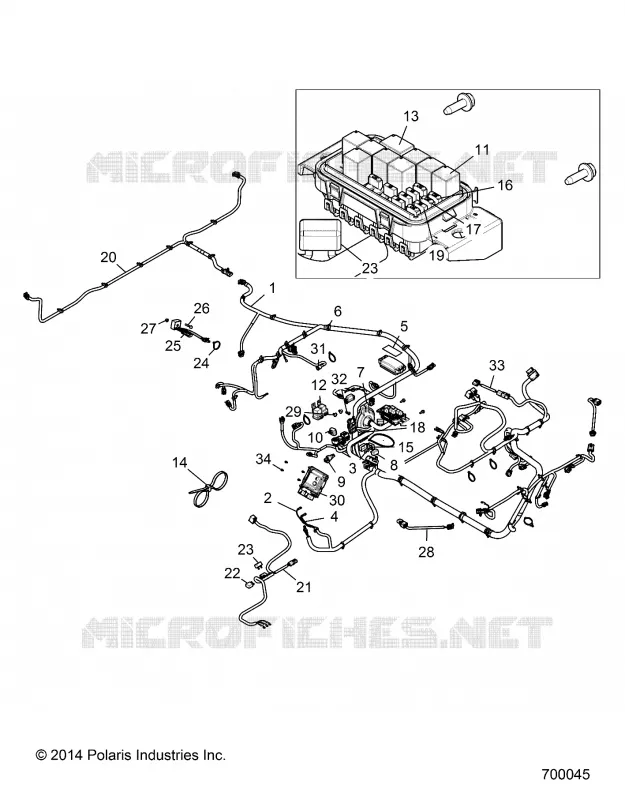

Find the detailed WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
