Parts Catalog
DRIVE TRAIN, HYDROSTAT MOUNTING AND LINES
5

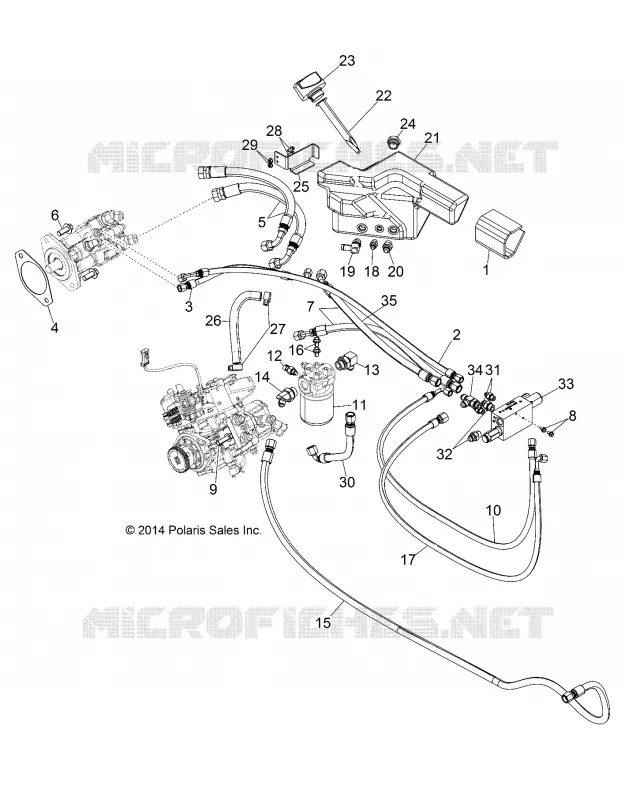

Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, SHIFT LEVER AND CABLE
DRIVE TRAIN, HYDROSTAT MOUNTING AND LINES
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
18
20
33
34
35
1
FOAM
3120056
9999999
Not Available
2
HOSE-DRIVEN MOTOR-MANIFOLD
3120810
9999999
Not Available
3
HOSE-DRIVEN MOTOR-TANK
3120809
9999999
Not Available
4
DRIVEN MOTOR GASKET
3120086
9999999
Not Available
5
HOSE-WORK VALVE-AUX VALVE
3120095
$246,74 Unit Price incl. VAT
6
SCR-HXFL-M14X2.0X35 8.8 ZOD
7519729
$20,99 Unit Price incl. VAT
7
HOSE-MANIFOLD
3120164
9999999
Not Available
8
HEX FLANGE SCREW; 6 MM X 1.0 MM X 12 MM
7519145
$7,34 Unit Price incl. VAT
9
HEX FLANGE SCREW 12 MM X 1.75 MM X 40 MM
7519730
$17,84 Unit Price incl. VAT
10
HOSE-MANIFOLD-TORQUE GEN
3120173
9999999
Not Available
11
FILTER-HYD;ASM
3120042
9999999
Not Available
11
HYDRAULIC OILFILTER
3120212
$55,11 Unit Price incl. VAT
12
SENDER-HYD TEMP
3120043
9999999
Not Available
13
FITTING-8 37DEGX-12 ORING90DE
3120069
9999999
Not Available
14
FITTING-8 37DEGX-12 ORING45DE
3120070
9999999
Not Available
15
HOSE-FILTER-COOLER
3120812
9999999
Not Available
16
SCR-HEXFLGHD M10X16 0600086
7517951
$10,49 Unit Price incl. VAT
17
HOSE-MANIFOLD-TORQUE GEN
3120811
9999999
Not Available
18
FITTING-6 37DEG X -6 ORING
3120010
9999999
Not Available
19
FITTING-90DEG BARB
3120020
9999999
Not Available
20
FITTING-8 37DEG X -8 ORING
3120049
9999999
Not Available
21
TANK-HYDRAULIC OIL
3120057
9999999
Not Available
22
OIL TANK SCREEN
3120058
$83,99 Unit Price incl. VAT
23
HYDRAULIC CAP
3120059
$152,24 Unit Price incl. VAT
24
GUAGE-BALL
3120060
9999999
Not Available
25
BRKT-TANK MOUNT
3120061
9999999
Not Available
26
HOSE-FILTER PUMP
3120837
9999999
Not Available
27
HOSE CLAMP SPRING; 24 MM
7081825
$14,69 Unit Price incl. VAT
28
SCR-M6X1.0X16.0MM HEX-FL-Y/D
7518637
$7,34 Unit Price incl. VAT
29
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
30
HOSE-HYD 5/8 IN X 311 MM
3120838
9999999
Not Available
31
FITTING-6 37DEG X -6 ORING
3120010
9999999
Not Available
32
FITTING-8 37DEG X -8 ORING
3120049
9999999
Not Available
33
VALVE-MANIFOLD
3120211
9999999
Not Available
34
FTG-8X-8 37DEGX-8 ORINGTEE
3120088
9999999
Not Available
35
HOSE-PUMP VALVE
3120842
9999999
Not Available
