DRIVE TRAIN, THROTTLE PEDAL for POLARIS RANGER HST from 2015

DRIVE TRAIN, THROTTLE PEDAL

1

PEDAL BUSHING

3120102

$24,14 Unit Price incl. VAT

2

O-RING-HYDRAULIC

3120103

$5,76 Unit Price incl. VAT

3

PIN-PEDAL

3120105

9999999

Not Available

4

PROPEL CABLE

3120106

$278,24 Unit Price incl. VAT

5

PEDAL MOUNT

3120815

9999999

Not Available

6

FORWARD PEDAL

3120121

9999999

Not Available

7

CONTROLS COVER

3120148

9999999

Not Available

8

GROMMET-.50X1.25X.13 GROOVE

5414504

9999999

Not Available

9

U-CLIP SPEED NUT

7081305

$3,66 Unit Price incl. VAT

10

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

11

CLIP-P 7/16X.343 HOLE

7081722

$7,34 Unit Price incl. VAT

12

SCREW

7516732

$3,14 Unit Price incl. VAT

13

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

14

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

$6,29 Unit Price incl. VAT

15

SCR-TXBH-M8X1.25X25 10.9 ZB

7519728

$9,44 Unit Price incl. VAT

16

NUT-M8X1.25 HXFLG NYLON INS

7547317

7548028

$5,24 Unit Price incl. VAT

17

NUT-HXFL M8X1.25 ZOD

7547440

$6,29 Unit Price incl. VAT

18

WSHR-FLAT 8.4X1.6

7556211

$9,44 Unit Price incl. VAT

19

RING-RETAINING E CLIP 7.0

7710701

$9,44 Unit Price incl. VAT

20

THROTTLE CABLE

3120828

9999999

Not Available

21

ROUTING CLIP

7670109

$4,19 Unit Price incl. VAT

22

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518702

$7,34 Unit Price incl. VAT

23

WASHER

7555935

$4,19 Unit Price incl. VAT

24

SPRING BRACKET

3120875

9999999

Not Available

25

BRKT-CABLE

3120876

9999999

Not Available

26

SPRING-THROTTLE ASSIST

3120877

3120910

$36,74 Unit Price incl. VAT

27

CABLE TIE; 11 IN

7080492

$5,24 Unit Price incl. VAT

28

NUT-HXFL-M8X1.25 10 ZY3 P30

7547502

9999999

Not Available

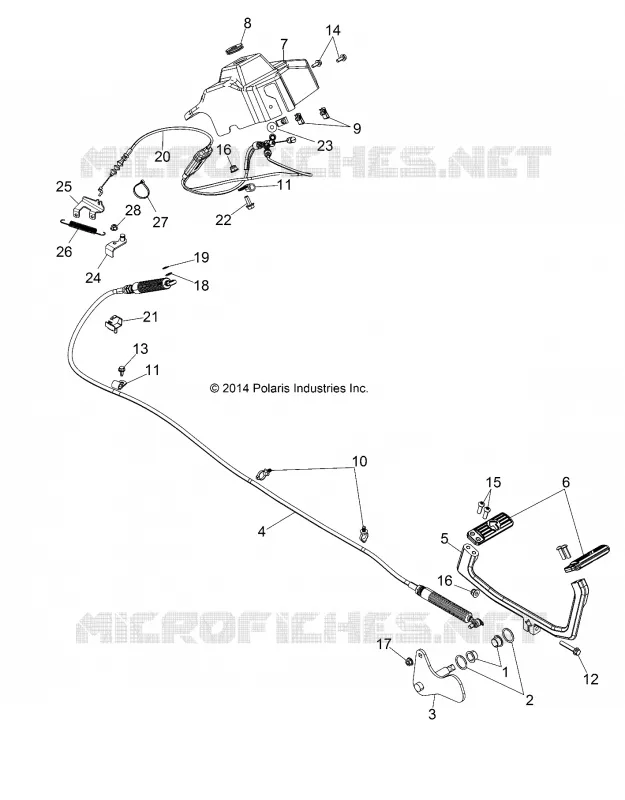

Find the detailed DRIVE TRAIN, THROTTLE PEDAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
