SWING ARM SHOCK for POLARIS XPLORER 400 - A01CG38CA from 2001

SWING ARM SHOCK

1

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

2

COMPRESSION SPRING; REAR; GS BLK

7041204067

Not Available

3

CAM ADJUSTMENT SPRING

5630551

$68,24 Unit Price incl. VAT

4

SHOCK-REAR 1-3/8 ATV

7041775

9999999

Not Available

4

SHOCK-RR CDS HVY

7041961

9999999

Not Available

5

RETAINER SHOCK

5241147

5251753

$19,94 Unit Price incl. VAT

6

SCREW

7515415

9999999

Not Available

7

POP RIVET 3/16

7661046

9999999

Not Available

8

CHAIN PAD GUIDE

5432727

9999999

Not Available

9

ZERK FITTING

7080510

$10,49 Unit Price incl. VAT

10

HEX NUT JAM

7547082

9999999

Not Available

11

FLAT WASHER

7556035

9999999

Not Available

12

BUSHING SWNGARM RHHYBRID

5433412

5434546

$16,79 Unit Price incl. VAT

13

SWINGARM PIVOT BOLT

5131697

$68,24 Unit Price incl. VAT

14

PIVOT BUSHING; RIGHT

5133167

9999999

Not Available

15

ARM ASMSWING

1580111

9999999

Not Available

16

Decal #Chain Free Play#

7078572

Not Available

17

CHAIN GUARD

5432854

9999999

Not Available

18

FLANGED SCREW

7515304

9999999

Not Available

19

BUSHING

5332828

9999999

Not Available

20

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

21

FLANGE NUT

7542321

$2,09 Unit Price incl. VAT

22

NYLOK NUT; 7-16-20

7547066

$3,14 Unit Price incl. VAT

23

WASHER

7555883

$7,34 Unit Price incl. VAT

24

DECAL HITCH Substituted by 7078261

7072533

Not Available

25

HITCH ATV CHAIN DRVN

2873036

9999999

Not Available

26

BOLT

7512576

9999999

Not Available

27

BOLT

7515438

$9,44 Unit Price incl. VAT

28

BUSHING SWNGARM LHHYBRID

5433411

5434545

$16,79 Unit Price incl. VAT

29

PIVOT BUSHING LEFT

5133166

9999999

Not Available

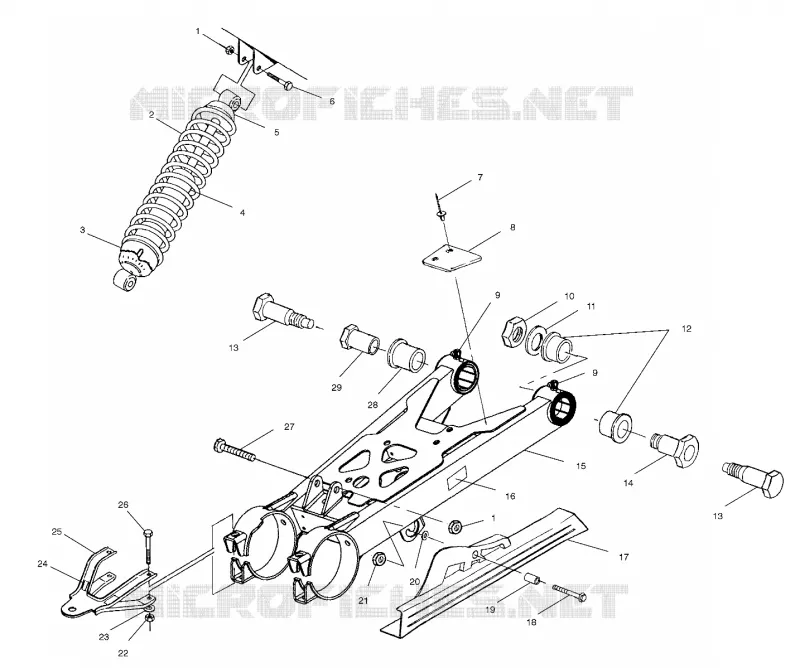

Find the detailed SWING ARM SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
