BRAKES, LINES AND MASTER CYLINDER for POLARIS RANGER 1000 DIESEL from 2015

FRONT BRAKE CALIPER

CHASSIS, FRAME AND FRONT BUMPER

BRAKES, LINES AND MASTER CYLINDER

1

BRAKE LINE; REAR; LEFT

1911733

$173,24 Unit Price incl. VAT

2

TEE FITTING BRAKE

7052293

$110,24 Unit Price incl. VAT

3

ASM-MASTER CYLINDER;UV;GS

1911515

1912463

$482,99 Unit Price incl. VAT

4

TANDEM MASTER CYLINDER CAP KIT; 3/4 IN

2203455

$89,24 Unit Price incl. VAT

5

BRAKE LINE; FRONT LEFT

1911734

$141,74 Unit Price incl. VAT

6

KIT-NUTS CLEVIS M/C TANDEM

2203457

$62,99 Unit Price incl. VAT

7

SWITCH

4014225

$167,99 Unit Price incl. VAT

8

FRONT RIGHT BRAKE LINE

1911735

$141,74 Unit Price incl. VAT

9

KIT-CLEVIS M/C TANDEM HB 3/4

2203456

$62,99 Unit Price incl. VAT

10

SCREW

7512025

$9,44 Unit Price incl. VAT

11

SEAL

5413212

9999999

Not Available

12

LINE-BRAKE M/C REAR BRD

1912085

$120,74 Unit Price incl. VAT

13

CLIP

7670102

$4,19 Unit Price incl. VAT

14

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

15

BRAKELINE; REAR; RIGHT; BRAIDED

1911736

$178,49 Unit Price incl. VAT

16

BANJO BOLT; 10 MM X 1.00

1910499

$10,49 Unit Price incl. VAT

17

BANJO BOLT; 10 MM X 1.25-6G

1910958

$14,69 Unit Price incl. VAT

18

ROSEBUD CLIP

4020149

$12,59 Unit Price incl. VAT

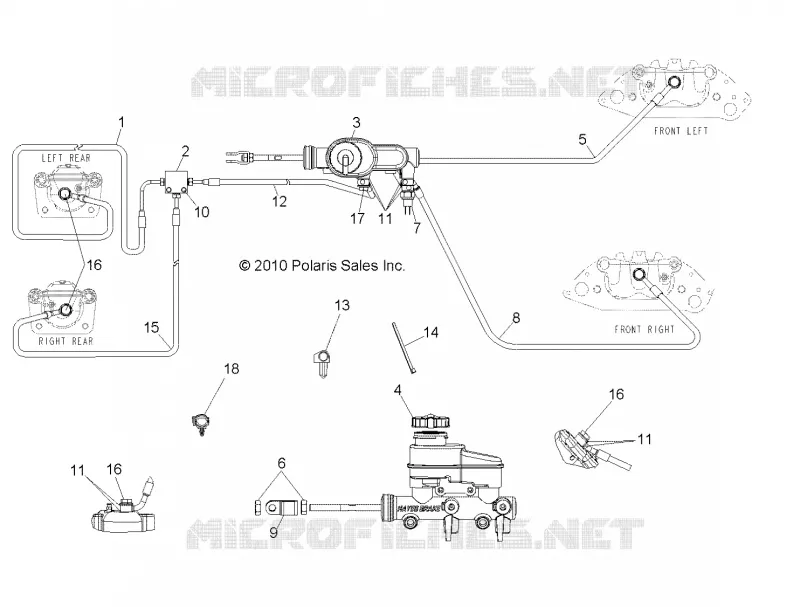

Find the detailed BRAKES, LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
