STEERING for POLARIS RANGER 1000 DIESEL from 2015

STEERING

1

BOOT SEAL ROD END 10MM

5411920

5412929

$20,99 Unit Price incl. VAT

2

ROD END 10MM 1/2-20LH 42 DEG

7061054

7061138

$104,99 Unit Price incl. VAT

3

NUT JAM; LEFT

7547028

$4,19 Unit Price incl. VAT

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

BOOT CLAMP; SMALL

7080978

$4,19 Unit Price incl. VAT

6

PASSENGER SIDE BOOT RACK

5412013

$104,99 Unit Price incl. VAT

7

BOOT CLAMP; LARGE

7080979

$10,49 Unit Price incl. VAT

8

HEX BOLT; 8 MM X 1.25 MM X 95 MM

7518935

$3,14 Unit Price incl. VAT

9

HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM

7518644

$9,44 Unit Price incl. VAT

10

OIL LOCKING SHOCK ASSEMBLY

7044098

$178,49 Unit Price incl. VAT

11

BOLT-SHOULDER M8-15 M6X1.0-BLK

7519980

$13,64 Unit Price incl. VAT

12

BOLT-M10X1.25X130 HXFLG-OLIVED

7518665

$25,19 Unit Price incl. VAT

13

ASM-TILT STEERING RVTD M10

1824317

1824420-458

$283,49 Unit Price incl. VAT

14

STEERING WHEEL

1823622

$246,74 Unit Price incl. VAT

15

NUT-M16X2-6G

7547188

$10,49 Unit Price incl. VAT

16

STEERING WHEEL CAP

5438865

$9,44 Unit Price incl. VAT

17

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518702

$7,34 Unit Price incl. VAT

18

STEERING GEAR BOX ASSEMBLY

1823902

$1 018,49 Unit Price incl. VAT

19

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

20

SHAFT-STEERING UPPER/LOWER

1823844

$346,49 Unit Price incl. VAT

21

NUT-NY INS;M10X1.5;HEX;ZINC;YW

7547385

$2,09 Unit Price incl. VAT

22

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

23

DRIVER SIDE BOOT RACK

5412012

$115,49 Unit Price incl. VAT

24

BOLT 10 MM X 1.25 MM X 65 MM

7517909

$10,49 Unit Price incl. VAT

25

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

26

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

27

STEERING BUSHING

7556675

$24,14 Unit Price incl. VAT

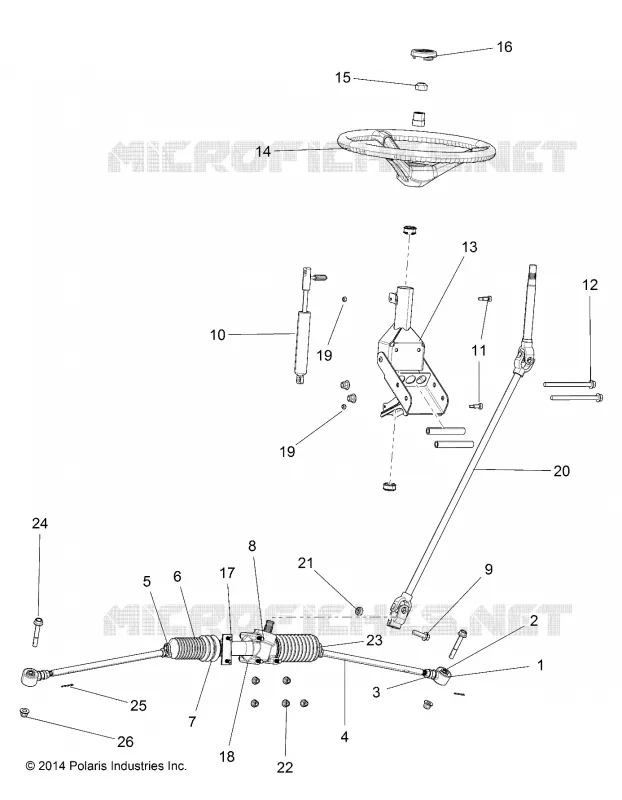

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
