EXHAUST for POLARIS RANGER 1000 DIESEL from 2015

EXHAUST

1

HEADPIPE ASSEMBLY; DSL

1262548

$456,74 Unit Price incl. VAT

2

HEAT SHIELD EXHAUST CLAMP

7081156

$13,64 Unit Price incl. VAT

3

ASM-WELD SILENCER

1262549

1262577

$524,99 Unit Price incl. VAT

4

PLUG-3/8 NPT

7520332

$17,84 Unit Price incl. VAT

5

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

6

SILENCER SHIELD

5259416

9999999

Not Available

7

SCREW

7515197

$2,09 Unit Price incl. VAT

8

MIDPIPE DIESEL ASSEMBLY

1262581

$388,49 Unit Price incl. VAT

9

WSHR-SILENCER MOUNT

5415398

$7,34 Unit Price incl. VAT

10

EXHAUST SOCKET SEAL

3610181

$57,74 Unit Price incl. VAT

11

BUSHING

5010192

$12,59 Unit Price incl. VAT

12

VIBRATION DAMPER

5414946

$9,44 Unit Price incl. VAT

13

ISOLATOR MOUNT

5415027

$52,49 Unit Price incl. VAT

14

SPRING

7041789

$16,79 Unit Price incl. VAT

15

SCR-CAR M8X1.25 40 8.8 ZOD

7519305

9999999

Not Available

16

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

17

WASHER

7555716

$3,14 Unit Price incl. VAT

18

HEAT SHIELD; FOIL; BOTTOM

5813763

$89,24 Unit Price incl. VAT

19

FOIL-CLOSEOFF FRONT

5813944

9999999

Not Available

20

FOIL-CLOSEOFF

5813945

9999999

Not Available

21

FOIL-CLOSEOFF FRONT

5813950

9999999

Not Available

22

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

23

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

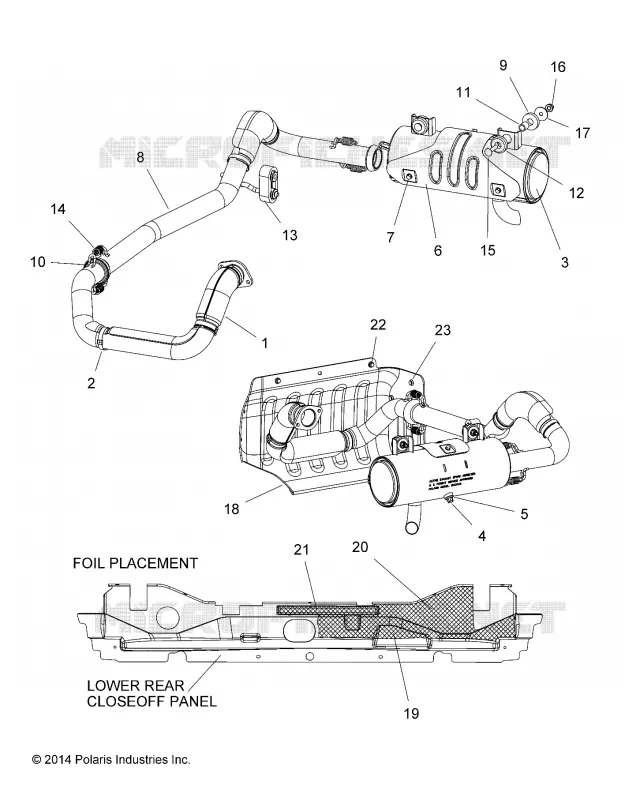

Find the detailed EXHAUST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
