Engine displacement
500
2
Year
2013
3
Trim
RANGER 500 CREW MIDSIZE - R13WH50AG/AH/AR/AX
4
Parts Catalog
HOOD, DASH AND GRILL
5
Parts Diagram
Parts Catalog
FUEL TANK ASM.
by
TAILGATE ASM.
HOOD, DASH AND GRILL
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
15
16
17
1
HOOD POLARIS PURSUIT CAMO
5438258587
Not Available
1
HOOD; SAGEBRUSH GREEN METALLIC
5437949498
Not Available
1
BASIC HOOD; SOLAR RED
5437949342
Not Available
1
HOOD-RNGR PNTD SUEDE MET
5439146577
Not Available
2
HOOD GRILL; GLOSS BLACK
5437818070
Not Available
3
RETAINER STRAP
5412606
9999999
Not Available
4
EFI DASH; GLOSS BLACK;
5438547070
Not Available
5
SCREW
7517685
$3,14 Unit Price incl. VAT
6
SCREW
7512095
$9,44 Unit Price incl. VAT
7
HITCH PIN
7661644
$4,19 Unit Price incl. VAT
8
CLEVIS PIN; 1/4 X 3/4
7661843
$4,19 Unit Price incl. VAT
9
BASIC GLOVEBOX COVER; GLOSS BLACK
5438046070
Not Available
10
SEAL-GLOVEBOX
5521789
$10,49 Unit Price incl. VAT
11
RUBBER GROMMET; MOUNT; 25 IN.
5412504
$7,34 Unit Price incl. VAT
12
NUT-HXFL M8X1.25 ZOD
7547440
$6,29 Unit Price incl. VAT
13
CLIP-HOOD MNT
7661976
$13,64 Unit Price incl. VAT
14
SCREW
7512026
$2,09 Unit Price incl. VAT
15
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
16
SPACER-HOOD CLAMP
5438280
$10,49 Unit Price incl. VAT
17
HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM
7519097
$3,14 Unit Price incl. VAT

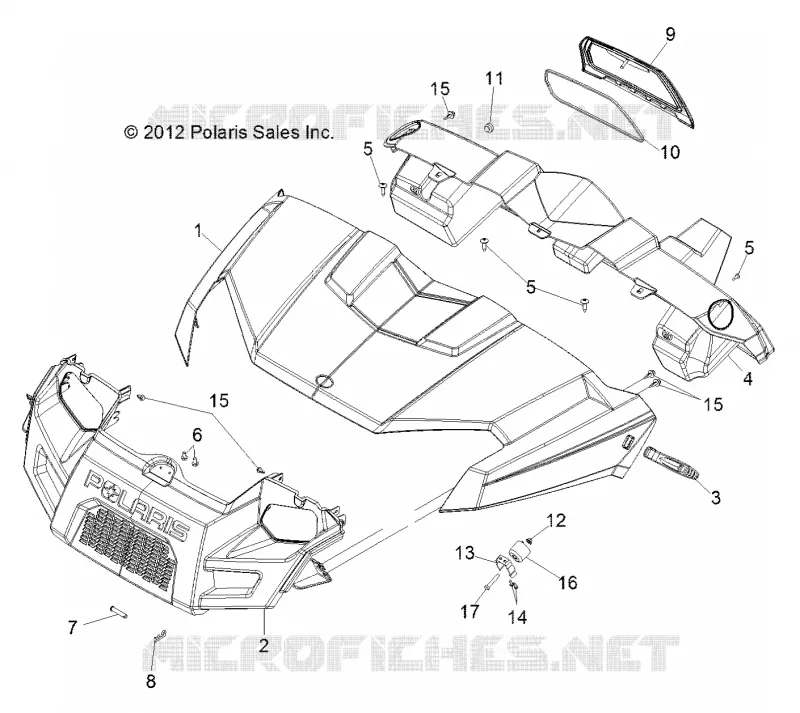

Find the detailed HOOD, DASH AND GRILL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
