THROTTLE BODY
5
Parts Diagram
Parts Catalog
ENGINE, STARTING MOTOR
by
THROTTLE PEDAL
THROTTLE BODY
6
7
8
9
10
11
12
6
7
8
9
10
11
11
12
12
1
THROTTLE BODY ASSEMBLY
3131684
$1 028,99 Unit Price incl. VAT
2
O-RING
3131682
9999999
Not Available
3
SENSOR-THROTTLE POSITION
3140173
3131705
$367,49 Unit Price incl. VAT
4
SCREW
3131628
$9,44 Unit Price incl. VAT
5
IDLE AIR CONTROL HARNESS KIT
2878507
$272,99 Unit Price incl. VAT
5
IDLE SPEED CONTROL (ISC) STEPPING MOTOR
3131629
$320,24 Unit Price incl. VAT
6
COVER
3131685
3131648
$46,48 Unit Price incl. VAT
7
NUT
3131644
$41,99 Unit Price incl. VAT
8
ADJUST SCREW
3131645
9999999
Not Available
9
O-RING
3131646
3131649
$7,49 Unit Price incl. VAT
10
GUIDE CABLE
3130543
$62,99 Unit Price incl. VAT
11
SCREW
3131647
3130924
$3,14 Unit Price incl. VAT
12
O-RING
3131501
9999999
Not Available

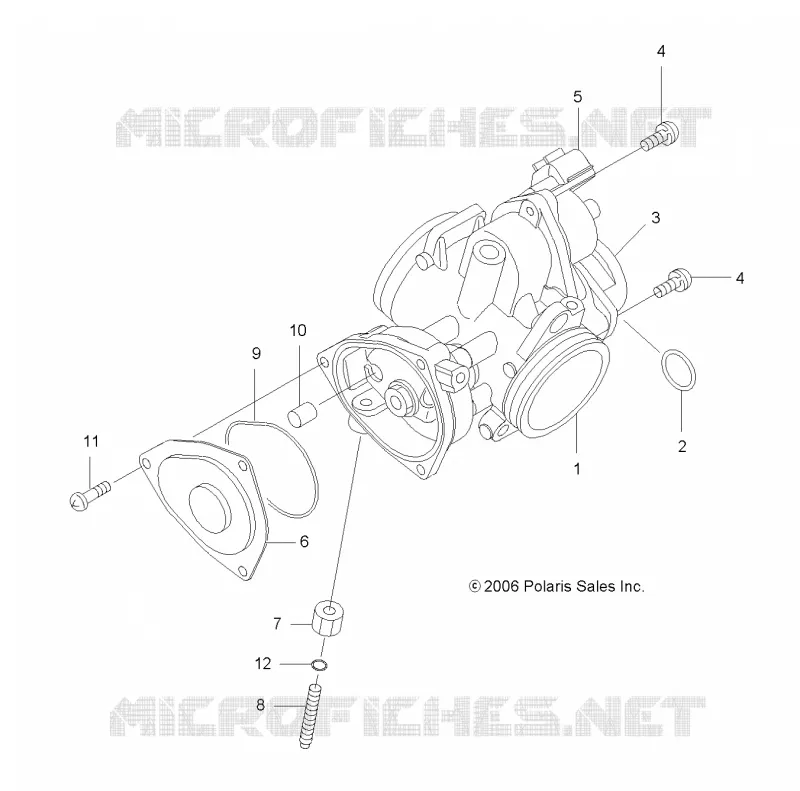

Find the detailed THROTTLE BODY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
