DRIVE TRAIN, GEAR SELECTOR
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, MAIN GEARCASE
DRIVE TRAIN, GEAR SELECTOR
1
2
3
4
5
6
7
8
9
10
11
12
13
1
SHIFT KNOB COVER
5412003
$23,09 Unit Price incl. VAT
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
KNOB-GEAR SELECTOR SHIFT
5411007
9999999
Not Available
4
NYLOK NUT; 8 MM X 1.25 MM
7547144
$6,29 Unit Price incl. VAT
5
SHIFT CABLE; CREW
7081615
$293,99 Unit Price incl. VAT
6
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
7
CLIP PIN; 14 MM
7661140
$2,09 Unit Price incl. VAT
8
WELD-SHIFT LEVER
1542672
9999999
Not Available
9
E-RING
7710901
$15,74 Unit Price incl. VAT
10
PEDAL BUSHING PIVOT
5439274
$24,14 Unit Price incl. VAT
11
SHIFT CABLE CLIP
7081639
9999999
Not Available
12
GROMMET-SHIFT
5413725
$12,59 Unit Price incl. VAT
13
WASHER
7555919
$7,34 Unit Price incl. VAT

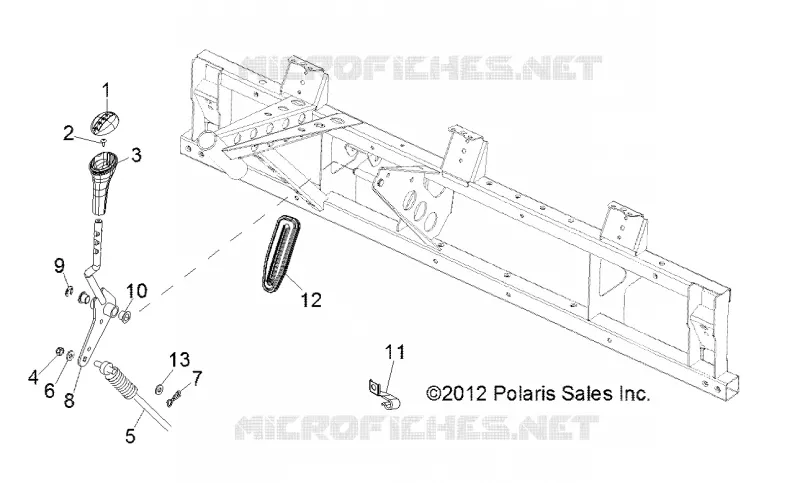

Find the detailed DRIVE TRAIN, GEAR SELECTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
