1
Engine displacement
500
2
Year
1998
3
Trim
SWEDISH SPORTSMAN 500 - S98CH50EB
4
Parts Catalog
DRIVE CLUTCH
5
Parts Diagram
Parts Catalog
STEERING POST
by
DRIVEN CLUTCH
DRIVE CLUTCH
1
ONE WAY DRIVE CLUTCH
1520231
9999999
Not Available
2
WASHER
7556009
9999999
Not Available
3
SPACER
5131646
9999999
Not Available
4
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
5
BUTTON CLUTCH (10)
5431936
5439254
$14,69 Unit Price incl. VAT
6
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
7
BEARING / BUSHING
3585712
$54,59 Unit Price incl. VAT
8
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
9
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
10
BOLT
7512176
7512163
$7,34 Unit Price incl. VAT
11
CLUTCH SPRING
7041157
$89,24 Unit Price incl. VAT
12
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
13
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
14
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
15
WT SHIFT 10MH(3)
5630513
5632281
$62,99 Unit Price incl. VAT
16
BRAKING DRIVE CLUTCH ASSEMBLY
1321706
$1 081,49 Unit Price incl. VAT
17
WASHER
7556008
9999999
Not Available

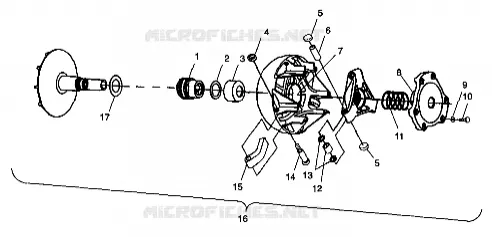

Find the detailed DRIVE CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
