1
Engine displacement
500
2
Year
1998
3
Trim
SWEDISH SPORTSMAN 500 - S98CH50EB
4
Parts Catalog
REAR CAB SEAT
5
Parts Diagram
Parts Catalog
by
CABIN
REAR CAB SEAT
1
RIVET
7661645
9999999
Not Available
2
SCREW(10)
7511930
$4,19 Unit Price incl. VAT
3
WASHER
7555792
$9,44 Unit Price incl. VAT
4
FOIL REAR
5811107
9999999
Not Available
5
GROMMET
5411042
5412507
$12,59 Unit Price incl. VAT
6
CAB REAR GEN 4 P.RED
5432117136
Not Available
6
CAB REAR GEN 4 OLV.GRN.
5432117191
Not Available
7
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
8
RETAINER SEAT LATCH
5224592
9999999
Not Available
9
FOIL TAPE 3 X 12
5811308
9999999
Not Available
10
SCREW
7512242
$4,19 Unit Price incl. VAT
11
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
12
SCREW
7512085
9999999
Not Available
13
TOOLBOX
5431786
9999999
Not Available
14
BLIND RIVET
7621403
$2,09 Unit Price incl. VAT
15
BRACKET; LEVER RETAINER
5211033
9999999
Not Available
16
SEAT LATCH
1040387
9999999
Not Available
17
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
18
COVER SEAT BLK.
2681747070
Not Available
18
FOIL SEATBASE LG.
5811104
9999999
Not Available
18
SEAT ASMBLACK
2682360070
Not Available
18
FOIL SEATBASE SM.
5811105
9999999
Not Available
19
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
20
SCREW
7517312
$2,09 Unit Price incl. VAT
21
WASHER
7555748
$9,44 Unit Price incl. VAT
22
COVER TOOLBOX
5431787
9999999
Not Available
23
CAP DRAIN (10)
5410896
9999999
Not Available
24
FITTING VENT 1/8
7052192
9999999
Not Available
25
WELL NUT
7541923
$10,49 Unit Price incl. VAT
26
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
27
GUARD-CLUTCH BLK
5241403067
Not Available
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
30
SCREW
7512492
$2,09 Unit Price incl. VAT
30
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
31
CLAMP HOSE 1 IN NYLON
7080653
$9,44 Unit Price incl. VAT
32
SCREW
7512024
$9,44 Unit Price incl. VAT
33
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
34
FOOTWELL SPACER
5432280
9999999
Not Available
35
SCREW
7517377
$9,44 Unit Price incl. VAT
36
FRAME MAIN BLK.
1012758067
Not Available
36
FRAME MAIN BLK
1040439067
Not Available
37
GROMMET
5410770
9999999
Not Available
38
DECAL HITCH Substituted by 7078261
7072533
Not Available
38
DECAL HITCH Substituted by 7078261 (US)(Swed) (B)
7077542
Not Available
39
SCREW
7517376
7512279
$1,56 Unit Price incl. VAT
40
LEFT FOOTWELL NY; GLOSS BLACK
5432221070
Not Available
40
FOOTWELL RH BLK NYLON
5432118070
Not Available
41
FOIL
5811111
9999999
Not Available
42
FOIL FRONT
5811106
9999999
Not Available
43
NUT; LOCK
7541929
7541925
$1,56 Unit Price incl. VAT
44
DECAL CARB.INFO.
7073761
Not Available
45
DECAL FILT.ELEMENT 4-S
7077446
Not Available
46
FOIL (6X1)
5811087
9999999
Not Available
47
BOLT
7512232
$2,09 Unit Price incl. VAT
48
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
49
MUDGUARD RH R.BLK.
5431797
9999999
Not Available
49
MUDGUARD LH R.BLK.
5431796
9999999
Not Available

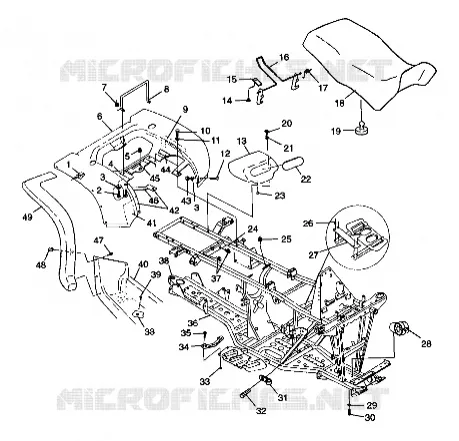

Find the detailed REAR CAB SEAT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
