Parts Catalog
GEAR SELECTOR
5
Parts Diagram
Parts Catalog
GEARCASE (INTERNAL COMPONENTS)
by
GEARCASE (CASES AND SNORKEL)
GEAR SELECTOR
-
SELECTOR ASMGEAR500LT
1341215
9999999
Not Available
1
KNOB ASM;HI/LO/REV.
3233195
9999999
Not Available
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
WIRE STRAP
3233131
9999999
Not Available
4
CLAMP
3233132
9999999
Not Available
5
GEAR SELECTOR BOOT
3233368
9999999
Not Available
6
SCREW; MAGNICARD COATED
3233498
9999999
Not Available
7
COVER GEAR SELECTOR
3233213
Not Available
8
SPRING HOLDING
3233158
9999999
Not Available
9
HANDLE SUBASM (GS MAGNUM)
3233227
Not Available
10
CUP; BEARING
3233063
9999999
Not Available
11
SPRING CENTERING
3233083
9999999
Not Available
12
PIN STOP
3233062
9999999
Not Available
13
DETENT SPRING
3233069
9999999
Not Available
14
DETENT BULLET
3233060
9999999
Not Available
15
SWITCH GEARSELECT DATA
3233208
9999999
Not Available
16
STRAP WIRE
3233090
9999999
Not Available
17
ROD END; RIGHT; 6 MM
7061014
9999999
Not Available
18
BOLT
7546702
9999999
Not Available
19
HI RANGE SHIFT LINKAGE ROD
5020823
$125,99 Unit Price incl. VAT
20
ROD END; LEFT; 6 MM
7061013
$120,74 Unit Price incl. VAT
21
NUT
7546707
7546703
$2,09 Unit Price incl. VAT
22
LOW RANGE SHIFT LINKAGE ROD
5020824
9999999
Not Available
23
NUT
7546701
9999999
Not Available
24
O-RING
3233076
$11,54 Unit Price incl. VAT
25
SLIDE LOW
3233500
9999999
Not Available
26
SLIDE HIGH/REV
3233499
9999999
Not Available
27
BODY GEAR SELECTOR
3233343
Not Available
28
SCREW
7515181
9999999
Not Available
29
INTERLOCK BUTTERFLY
3233084
9999999
Not Available
30
PIN INTERLOCK
3233070
9999999
Not Available

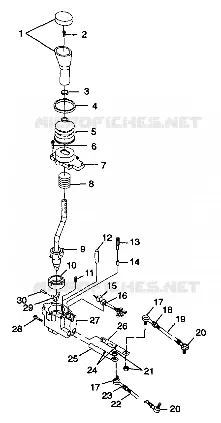

Find the detailed GEAR SELECTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
