1
Engine displacement
1000
2
Year
2018
3
Trim
RANGER XP 1000 EPS NORTHSTAR HVAC EDITION
4
Parts Catalog
THROTTLE BODY AND VALVE COVER
5
Parts Diagram
Parts Catalog
OIL PUMP
by
FRONT SUSPENSION SHOCK MOUNTING
THROTTLE BODY AND VALVE COVER
1
2
3
4
5
6
7
8
9
10
11
12
1
SPARK PLUG
3022662
$17,84 Unit Price incl. VAT
2
VALVE COVER ISOLATOR
5413806
$15,74 Unit Price incl. VAT
3
2 CYLINDER SEAL VALVE COVER
5415011
$94,49 Unit Price incl. VAT
4
COVER-VALVE; CAST; 2CYL; DOHC
5633264
5634650
$194,24 Unit Price incl. VAT
5
SHOULDER BOLT; 6 MM X 12 MM X 15 MM
7519165
$25,19 Unit Price incl. VAT
6
GROUNDING WASHER
7556750
$7,34 Unit Price incl. VAT
7
OIL FILL CAP ASSEMBLY
1205012
$68,24 Unit Price incl. VAT
8
O-RING FILL CAP
5414362
$6,81 Unit Price incl. VAT
9
THROTTLE BODY ADAPTER
1205301
3023789
$83,99 Unit Price incl. VAT
10
SCREW
7519297
$7,34 Unit Price incl. VAT
11
SPARKPLUG WIRE
4016939
$104,99 Unit Price incl. VAT
12
SPARK PLUG WIRE
4016940
$99,74 Unit Price incl. VAT

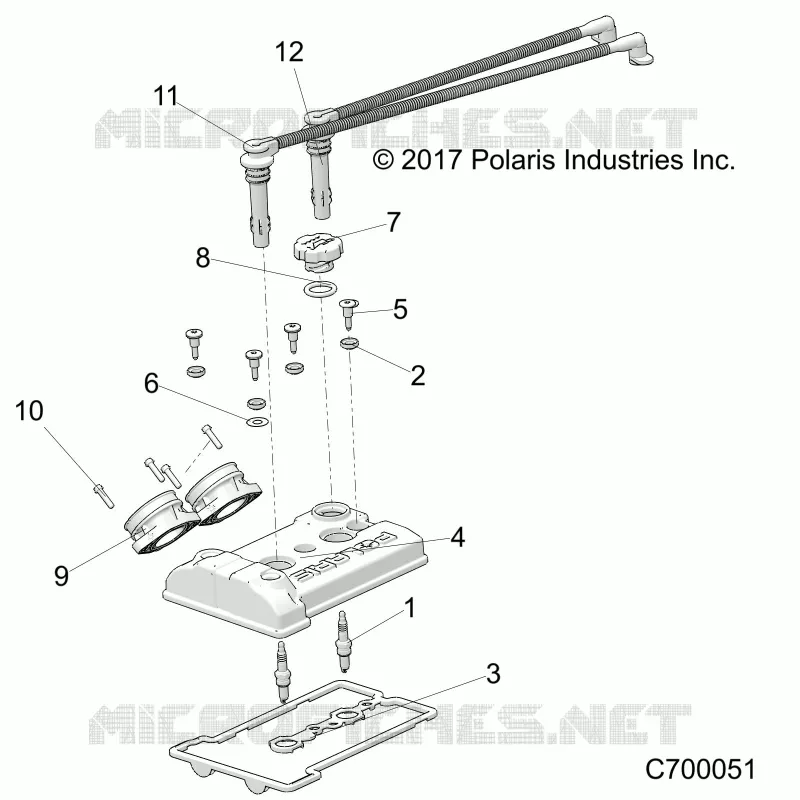

Find the detailed THROTTLE BODY AND VALVE COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
