1
Engine displacement
1000
2
Year
2018
3
Trim
RANGER XP 1000 EPS NORTHSTAR HVAC EDITION
4
Parts Catalog
CHASSIS, CAB
5
Parts Diagram
Parts Catalog
BRAKES, PEDAL
by
DRIVE TRAIN, FRONT HALF SHAFT
CHASSIS, CAB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
CAB FRAME WELD; REAR; MATTE BLACK
1022909458
Not Available
2
CAB FRAME WELD; FRONT; LEFT; MATTE BLACK
1022910458
Not Available
3
CAB FRAME WELD; FRONT; RIGHT; MT BLK
1022911458
Not Available
4
BOLSTER SEAT WELD; MATTE BLACK
1023194458
Not Available
5
BOLSTER WELD; RIGHT; MATTE BLACK
1023166458
Not Available
6
GLOSS BLACK HEADREST
5439110070
Not Available
7
WINDSHIELD MOUNT PLATE KIT; UPPER; CREW
2207932
$335,99 Unit Price incl. VAT
8
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
9
SCR-HEXFLGHD M12X90 0600086
7518705
$16,79 Unit Price incl. VAT
10
HEX FLANGE NUT; 12 MM X 1.75 MM
7547441
$9,44 Unit Price incl. VAT
11
BOLT M10 X 1.5 X 45
7519906
$9,44 Unit Price incl. VAT
12
HEX NUT; 10 MM X 1.5 MM
7547746
$5,24 Unit Price incl. VAT
13
HEX HEAD NUT; 8 MM X 1.25 MM
7547080
$13,64 Unit Price incl. VAT
14
ROPS (ROPS) GRAB HANDLE GLOSS BLK
5450844070
Not Available
15
BOLT
7519650
$7,34 Unit Price incl. VAT
16
RIVET
7621460
$2,09 Unit Price incl. VAT
17
HEX FLANGE SCREW; 10 MM X 1.5 MM X 20 MM
7519905
$4,19 Unit Price incl. VAT
18
HEX FLANGE SCREW; 8 MM X 1.25 MM X 20 MM
7519133
$3,14 Unit Price incl. VAT
19
HEX FLANGE NUT; 10 MM X 1.5 MM
7520117
$12,59 Unit Price incl. VAT

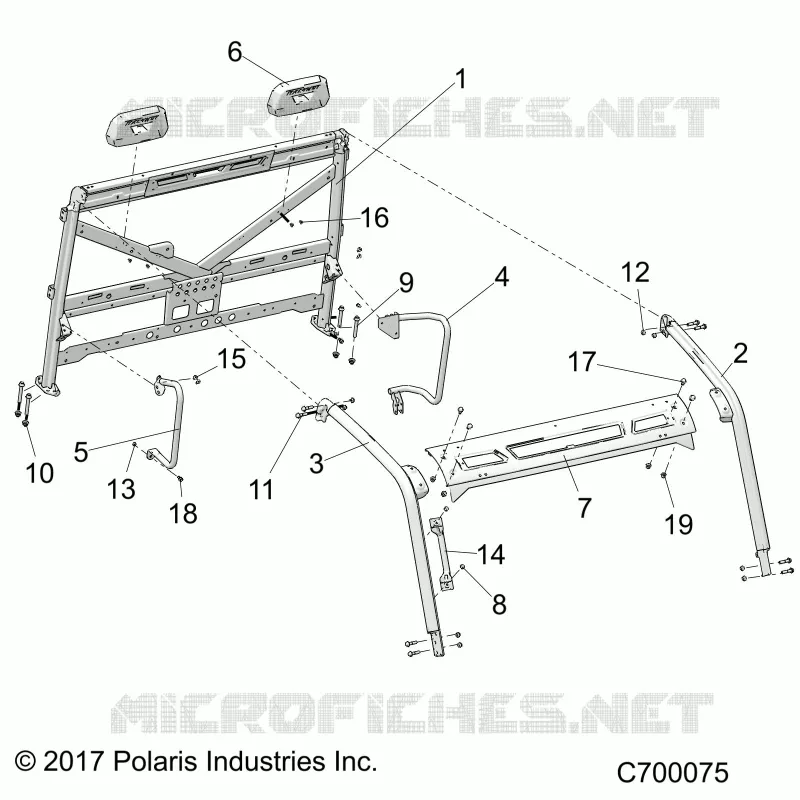

Find the detailed CHASSIS, CAB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
