Parts Catalog
HOOD ASM. AND WINDSHIELD
5
Parts Diagram
Parts Catalog
DECALS
by
SEAT ASM.
HOOD ASM. AND WINDSHIELD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
PLASTI-LOCK RIVET
7621509
$2,09 Unit Price incl. VAT
2
WINDSHIELD FRONT LEFT RIGHT 20 IN CLEAR
5433168
$216,29 Unit Price incl. VAT
3
INSTRUMENT HOUSING ASSEMBLY
2632596
9999999
Not Available
4
PRE-FILTER FOAM
5811625
$40,94 Unit Price incl. VAT
5
SCREW .75
7517441
$4,19 Unit Price incl. VAT
6
RIVET
7621334
$2,09 Unit Price incl. VAT
7
HOOD LATCH CUP
5430733
9999999
Not Available
8
WINDSHIELD RETAINER
5410970
$2,09 Unit Price incl. VAT
9
RIVET
7621485
$2,09 Unit Price incl. VAT
10
CLAMP-1 IN UMPCO#AN735016
7080833
9999999
Not Available
11
WASHER
7555904
$1,56 Unit Price incl. VAT
12
CLIP PIGTAIL
5242893
$10,49 Unit Price incl. VAT
13
RIVET (10)3/16(.251-.375)
7661084
$2,09 Unit Price incl. VAT
14
CABLE-HOOD 21.60
7081732
9999999
Not Available
15
POP RIVET
7621402
$2,09 Unit Price incl. VAT
16
SCREW
7512068
$4,19 Unit Price incl. VAT
17
DEFLECTOR-AIR
5243393
9999999
Not Available
18
CLIP ROSEBUD GRAY
7080886
9999999
Not Available
19
FOAM-HEADLIGHT SEAL W/PSA
5811687
9999999
Not Available
20
HOOD ASSEMBLY WHITE LIGHTNING
2633394599
Not Available

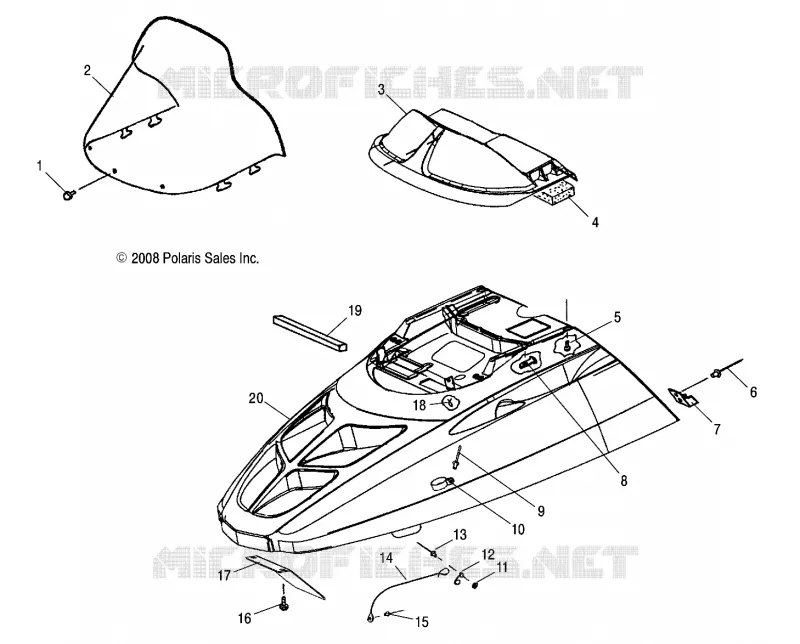

Find the detailed HOOD ASM. AND WINDSHIELD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
