DRIVE TRAIN, DRIVE SHAFT AND JACK SHAFT for POLARIS 500 WIDETRAK LX from 2014

DRIVE TRAIN, CLUTCH, SECONDARY

DRIVE TRAIN, GEARCASE (1 OF 2)

DRIVE TRAIN, DRIVE SHAFT AND JACK SHAFT

1

O-RING

5410630

9999999

Not Available

2

SCREW

7517446

$15,74 Unit Price incl. VAT

2

COUPLER ASM LONG 19 TOOTH W/ GREASE

1332219

$220,49 Unit Price incl. VAT

2

GREASE ZERK

7080437

9999999

Not Available

3

JACKSHIFT ASSEMBLY; LONG KEY

1332256

9999999

Not Available

4

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

5

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

6

FLANGETTE

5222393

5270869

$36,74 Unit Price incl. VAT

7

BEARING

3514525

$54,59 Unit Price incl. VAT

8

KEY-1/4 X 3/16 X 2.25

7721132

9999999

Not Available

9

GASKET JACKSHAFT 2-BOLT

5830135

$5,24 Unit Price incl. VAT

10

FLANGETTE; GREASABLE

5222647

$47,24 Unit Price incl. VAT

11

CARRIAGE BOLT

7512377

$9,44 Unit Price incl. VAT

12

ADAPTER DRIVE W/ ZERK

3280540

$188,99 Unit Price incl. VAT

12

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

13

SPEEDOMETER SQUARE KEY

3280017

9999999

Not Available

14

GASKET DRIVE ADAPTOR

5830012

$4,19 Unit Price incl. VAT

15

OFFSET FLANGETTE WITH HOLE

5243529

9999999

Not Available

16

SPEEDO METAL BUSHING

3280019

$20,99 Unit Price incl. VAT

17

BEARING-25MM SPH OD LUBE

3514448

3514617

$54,59 Unit Price incl. VAT

17

FLANGETTE W/ SCREWS ASSEMBLY

1012945

9999999

Not Available

18

DRIVE SHAFT

1590450

$939,74 Unit Price incl. VAT

19

COUPLER W/ GREASE ZERK ASM 19 TOOTH

1332260

$325,49 Unit Price incl. VAT

19

GREASE ZERK

7080437

9999999

Not Available

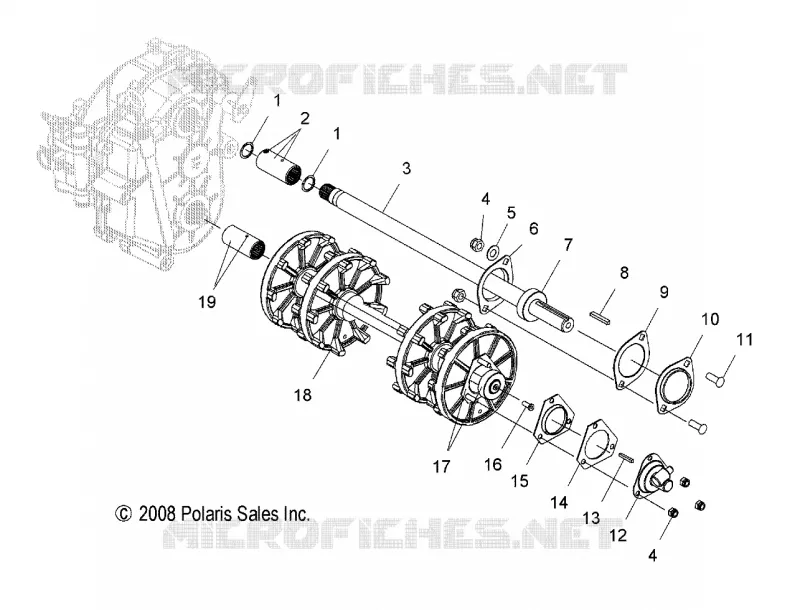

Find the detailed DRIVE TRAIN, DRIVE SHAFT AND JACK SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
