Parts Catalog
CHASSIS, SEAT RISER
5
Parts Diagram
Parts Catalog
CHASSIS, RACK ASM. AND SNOW FLAP
by
CHASSIS, TUNNEL
CHASSIS, SEAT RISER
1
2
3
3
3
3
4
5
6
7
8
9
10
1
ASM-SEAT RISER;WTRAK;BLK
1015633458
Not Available
2
RETAINER-TANK REAR
5251674
$52,49 Unit Price incl. VAT
3
RIVET
7661637
$2,09 Unit Price incl. VAT
4
CLIP HALF(10)
7080393
$6,29 Unit Price incl. VAT
5
FOAM-.50 X.50 W/PSA;82 CM
552176982
Not Available
6
SEAL SHORT SEAT RISER
5410563
9999999
Not Available
7
SEAL SEAT RISER
5410562
9999999
Not Available
8
PROTECTOR-RISER
5413186
9999999
Not Available
9
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
10
PAD-RUBBER 4 X 1.5 X 3
5813519
9999999
Not Available

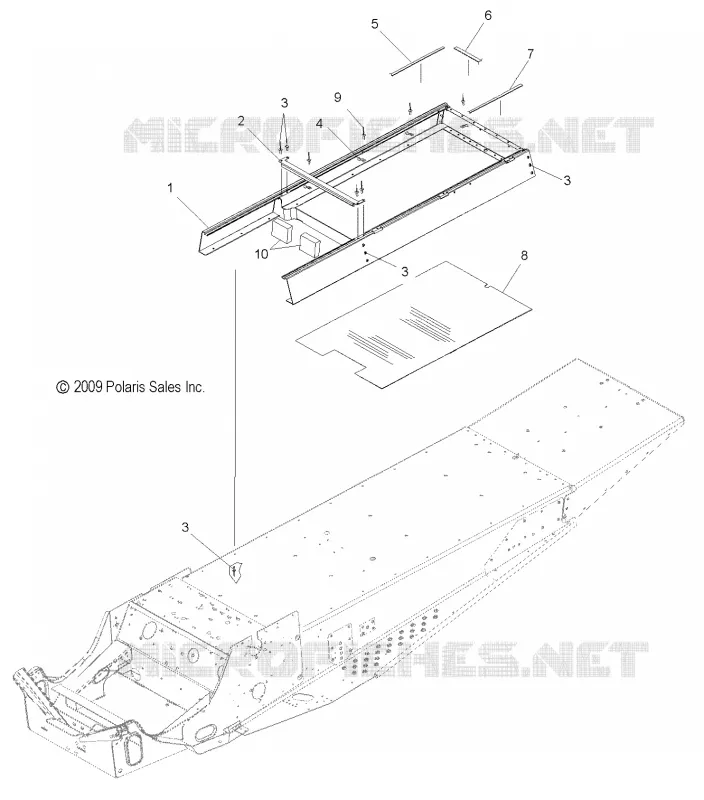

Find the detailed CHASSIS, SEAT RISER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
