1
Engine displacement
autre
2
Year
1994
3
Trim
EURO STORM SKS - E940582
4
Parts Catalog
SEAT GAS TANK ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440003)
5
Parts Diagram
Parts Catalog
by
BACKREST STORM SKS E940582 (49274427440004)
SEAT GAS TANK ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440003)
1
GROMMET GAS TANK
5410745
9999999
Not Available
2
GAS CAP GASKET
5810513
$15,74 Unit Price incl. VAT
3
CAP FUEL W/GAUGE
2511227
2511248
$83,99 Unit Price incl. VAT
4
SEAT (STORM 94)
2681691
9999999
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
COVER SEAT(94 STORM SKS)
2681694
9999999
Not Available
5
COVER SEAT(94 STORM) (Storm)
2681692
Not Available
6
TAILLIGHT BULB
4030024
9999999
Not Available
7
LENS TAILLIGHT
5430423
9999999
Not Available
8
REFLECTOR
5430781
Not Available
9
SCREW
7511856
9999999
Not Available
10
SCREW
7511840
9999999
Not Available
11
BULB
4030045
9999999
Not Available
12
HARNESS TAILLIGHT
2460398
Not Available
13
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
14
RIVET
7621467
$2,09 Unit Price incl. VAT
15
MOUNT REAR SEAT
1011855
9999999
Not Available
16
HOUSING TAILLIGHT
5431545
9999999
Not Available
17
COVER T/L PROTECTOR
5431436
9999999
Not Available
18
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
19
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
20
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
21
RIVET
7621460
$2,09 Unit Price incl. VAT
22
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
23
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
24
FUEL LINE; 1/4 ID
84500031525
Not Available
25
SPRING
7042029
$10,49 Unit Price incl. VAT
26
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
27
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
28
FUEL LINE; 600 CM
8450040600
Not Available
29
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
30
FITTING
7052077
9999999
Not Available
31
CABLE TANK RETENTION
7080473
9999999
Not Available
32
FOAM FILLER
5810201
Not Available

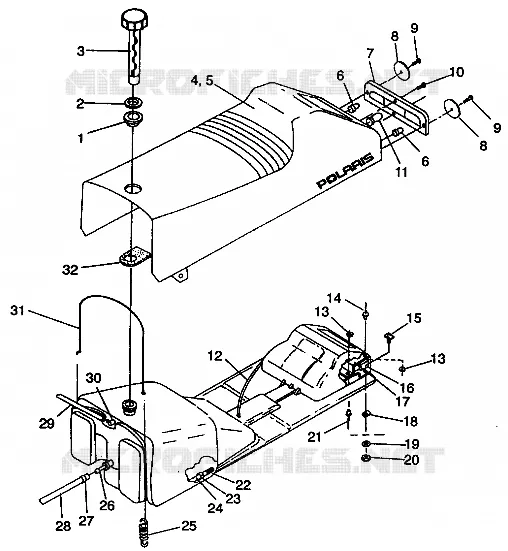

Find the detailed SEAT GAS TANK ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
