1
Engine displacement
autre
2
Year
1994
3
Trim
EURO STORM SKS - E940582
4
Parts Catalog
OIL TANK/AIR BOX STORM E940782 AND STORM SKS E940582 (49274427440029)
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM STORM E940782 AND STORM SKS E940582 (49274427440028)
by
TOOL KIT STORM E940782 AND STORM SKS E940582 (49274427440030)
OIL TANK/AIR BOX STORM E940782 AND STORM SKS E940582 (49274427440029)
1
OIL LEVER SENSOR
4110134
$141,74 Unit Price incl. VAT
2
OIL TANK CAP
5430779
$31,49 Unit Price incl. VAT
3
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
4
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
5
BOLT
7512240
9999999
Not Available
6
TANK;OIL;W/SEND.UNIT HOLE
5431687
2200874
Not Available
7
FITTING
7052077
9999999
Not Available
8
KIT-TANK VENT
2200190
9990000
Not Available
9
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
10
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
11
FITTING OUTLET
7052042
$13,64 Unit Price incl. VAT
12
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
13
GROMMET RUBBER
5410021
9999999
Not Available
14
BRKT;OIL TANK
5240330
9999999
Not Available
15
RIVET
7661637
$2,09 Unit Price incl. VAT
16
SCREW
7512279
$1,56 Unit Price incl. VAT
17
WASHER
7552604
$3,14 Unit Price incl. VAT
18
WELL NUT
7541923
$10,49 Unit Price incl. VAT
19
INTAKE ASMFOAMDBL.INLET
1253120
9999999
Not Available
20
PLENUM INLET
5410834
9999999
Not Available
21
PLENUM AIRBOX
5431683
9999999
Not Available
22
DECAL CAUTION(AIR BOX) [No Longer Available]
7072891
Not Available
23
Decal Adjustable Driven Clutch
7073820
Not Available
24
SEAL PLENUM
5810946
Not Available
25
NUT-WELL
7541918
9999999
Not Available
26
WASHER; LOCK
7571603
9999999
Not Available
27
SCREW
7511954
9999999
Not Available
28
BOX AIR CTR.
5431681
9999999
Not Available
29
CLAMP CABLE
7080535
9999999
Not Available
30
HSGVENTLINE FILTER
5431679
9999999
Not Available
31
FILTER VENTLINE
5810944
9999999
Not Available
32
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
33
DECAL; GREASING
7073426
9999999
Not Available
34
BOX AIR PTO.
5431682
Not Available
35
BRKT;AIR BOX
5240354
9999999
Not Available
36
BOOT
5410271
9999999
Not Available
37
FITTING TEE
7052048
$7,34 Unit Price incl. VAT
38
BOX AIR MAG.
5431680
9999999
Not Available

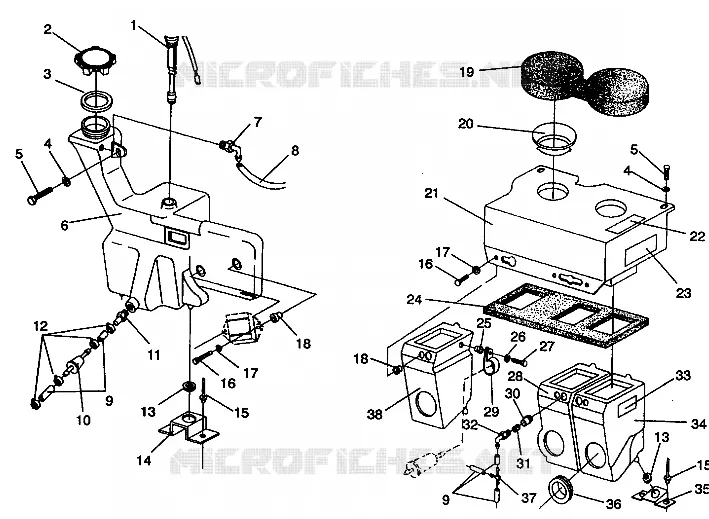

Find the detailed OIL TANK/AIR BOX STORM E940782 AND STORM SKS E940582 (49274427440029) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
