1
Engine displacement
autre
2
Year
1994
3
Trim
EURO STORM SKS - E940582
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
CONSOLE STORM E940782 AND STORM SKS E940582 (49274427440011)
by
STEERING ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440018)
STEERING
1
GRIP H BAR BLACK
5410272067
Not Available
2
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
3
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
4
LEVER-THROTTLE
5430638
9999999
Not Available
4
THROTTLE CONTROL ASM. [No Longer Available]
2010096
Not Available
5
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
6
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
7
BOLT
7512254
9999999
Not Available
8
PAD ASM H#BAR W/DECAL
2690081
Not Available
9
PAD HANDLEBAR
5810448
Not Available
10
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
11
HANDLEBAR BLK 1#RAISED
5224514067
Not Available
11
HANDLEBAR
5224413067
Not Available
12
DIMMER SWITCH
4110107
9999999
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
CAPLUG
7080467
9999999
Not Available
15
HEATER GRIP ASSEMBLY; HI/LO
2460311
$115,49 Unit Price incl. VAT
16
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
17
BOLT ;
7512239
7517377
$9,44 Unit Price incl. VAT
18
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
19
DESC NOT_AVAILABLE
1823153
Not Available
20
SCREW
7511848
$7,34 Unit Price incl. VAT
21
PLATE WIRE HOLDER
5240256
5432261
$47,24 Unit Price incl. VAT
22
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
23
WASHER
7555730
$7,34 Unit Price incl. VAT
24
SCREW SET
7512465
$7,34 Unit Price incl. VAT
25
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
26
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available

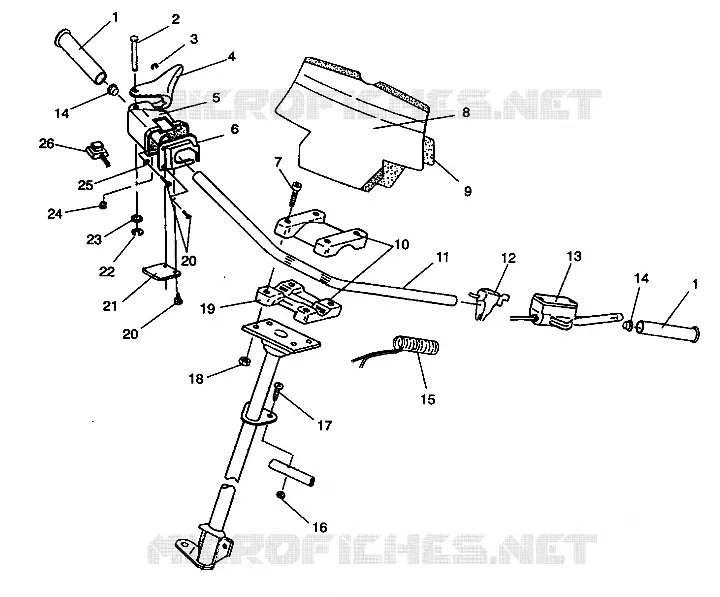

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
