1
Engine displacement
900
2
Year
2018
3
Trim
RZR S 900 60 INCH EPS EU / TRACTOR
4
Parts Catalog
ENGINE, STATOR AND COVER
5
Parts Diagram
Parts Catalog
OIL PUMP AND OIL COOLER
by
FRONT SUSPENSION CONTROL ARMS
ENGINE, STATOR AND COVER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
IGNITION COVER STARTER BEARING ASSEMBLY
1204518
1206299
$262,49 Unit Price incl. VAT
2
RING-SNAP DIN472 24X1.2MM
7710654
$41,99 Unit Price incl. VAT
3
BALL BEARING; 9 X 24 X 7
3514717
$15,74 Unit Price incl. VAT
4
SCREW
7519297
$7,34 Unit Price incl. VAT
5
STATOR
4014406
$944,99 Unit Price incl. VAT
6
SCR-M6X1.0X40 HX/SOC/CP-Y/D
7510005
$9,44 Unit Price incl. VAT
7
WIRE RETAINER BRACKET
5255473
$13,64 Unit Price incl. VAT
8
SCR-M5X0.8X10 SOC/CP-D
7517847
$5,76 Unit Price incl. VAT
9
COVER GASKET
5814160
$73,49 Unit Price incl. VAT
10
CRANK POSITION SENSOR
2411719
$194,24 Unit Price incl. VAT
11
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
12
HEX FLANGE SCREW 12 MM X 1.25 MM X 43 MM
7520178
$52,49 Unit Price incl. VAT
13
WSHR-32X12X4 HARD
7556885
$10,49 Unit Price incl. VAT
14
WOODRUFF KEY
7721122
$13,64 Unit Price incl. VAT
15
FLYWHEEL
4014404
$808,49 Unit Price incl. VAT

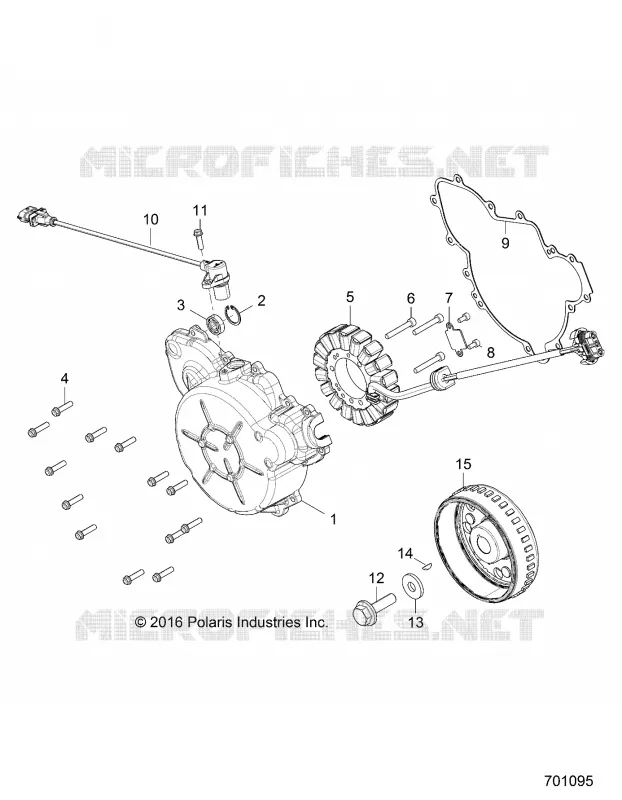

Find the detailed ENGINE, STATOR AND COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
