1
Engine displacement
900
2
Year
2018
3
Trim
RZR S 900 60 INCH EPS EU / TRACTOR
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
ENGINE, BALANCER
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
1
AIRBOX INTAKE DUCT
5450781
$99,74 Unit Price incl. VAT
2
PANEL-INTAKE SEPARATOR
5814168
$20,99 Unit Price incl. VAT
3
HOSE CLAMP
7080439
$17,84 Unit Price incl. VAT
4
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
5
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
6
INTAKE SEAL; AIRBOX
5415155
$10,49 Unit Price incl. VAT
7
AIRBOX COVER
5451097
$104,99 Unit Price incl. VAT
8
AIRBOX
5451098
$272,99 Unit Price incl. VAT
9
AIRBOX STRAP
5451099
$9,44 Unit Price incl. VAT
10
AIRBOX SEAL
5814054
5815300
$52,49 Unit Price incl. VAT
11
K-FILTER-AIR PERF RZX
2881063
2882233
$120,74 Unit Price incl. VAT
11
AIR FILTER
7082115
$57,63 Unit Price incl. VAT
12
DECAL-CAUT.AIR BOX
7182652
Not Available
13
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
14
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
15
BOLT
7519650
$7,34 Unit Price incl. VAT
16
INTAKE DUCT ASSEMBLY
1240871
$351,74 Unit Price incl. VAT
17
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
18
CLAMP-HOSE T-BOLT;72 DIA
7081978
$68,24 Unit Price incl. VAT
19
CLAMP-HOSE T-BOLT;66.4 DIA
7081979
$68,24 Unit Price incl. VAT
20
ENGINE VENT HOSE
5414896
$62,99 Unit Price incl. VAT
21
DECAL-INTAKE DUCT
7182087
$62,99 Unit Price incl. VAT

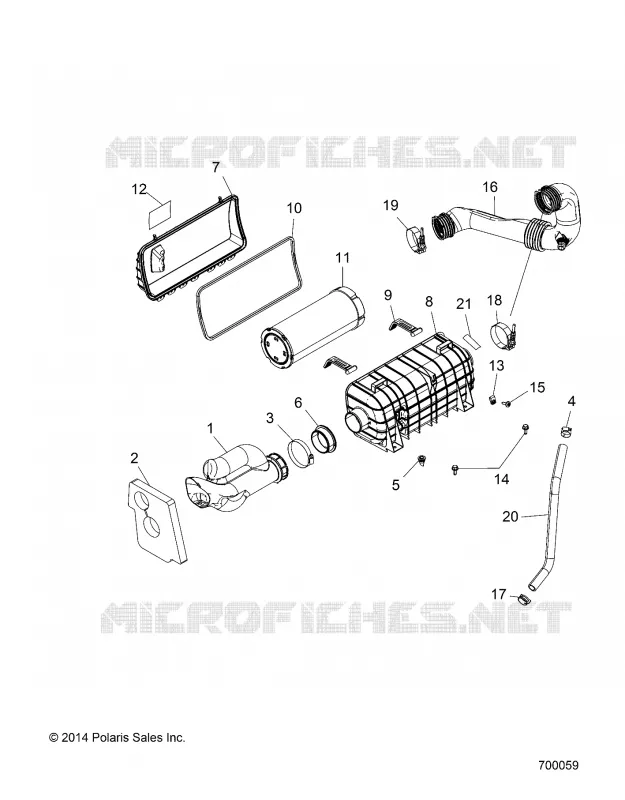

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
