1
Engine displacement
900
2
Year
2018
3
Trim
RZR S 900 60 INCH EPS EU / TRACTOR
4
Parts Catalog
POWER STEERING
5
Parts Diagram
Parts Catalog
OWNERS MANUAL AND TOOL KIT
by
DASHBOARD & GLOVEBOX
POWER STEERING
1
2
3
3
4
5
6
7
8
8
9
10
11
11
12
12
13
13
13
14
15
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
STEERING GEAR BOX ASSEMBLY
1823994
1824770
$1 049,99 Unit Price incl. VAT
2
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
3
NUT 12MM X 1.5MM
7547334
$9,44 Unit Price incl. VAT
4
STEERING SHAFT; UPPER
1823891
$272,99 Unit Price incl. VAT
5
HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM
7518644
$9,44 Unit Price incl. VAT
6
NUT-NY INS;M10X1.5;HEX;ZINC;YW
7547385
$2,09 Unit Price incl. VAT
7
ASM-TILT STEER RVTD M10 MT BLK
1824719458
Not Available
8
STEERING BEARING
3514686
$16,79 Unit Price incl. VAT
9
OIL LOCKING SHOCK ASSEMBLY; SHORT
7044337
$173,24 Unit Price incl. VAT
10
BOLT-M10X1.25X130 HXFLG-OLIVED
7518665
$25,19 Unit Price incl. VAT
11
BOLT-SHOULDER M8-15 M6X1.0-BLK
7519980
$13,64 Unit Price incl. VAT
12
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
13
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
14
STEERING WHEEL; 14 IN
1824212
$246,74 Unit Price incl. VAT
15
STEERING WHEEL CAP
5451356
$62,99 Unit Price incl. VAT
15
CAP-STEERING WHEEL;VLCTY BLUE
5451356689
Not Available
16
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
17
STEERING BUSHING
7556675
$24,14 Unit Price incl. VAT
18
EPS STEERING SHAFT; LOWER
1824012
$257,24 Unit Price incl. VAT
19
ASM-POWER STEERING;RZR;2.0T
2413483
9999999
Not Available
20
COVER-EPS
5438626
$68,24 Unit Price incl. VAT
21
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
22
HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM
7519052
$3,14 Unit Price incl. VAT
23
SCR-TXTH-M6X1.0X15 ZPB TAP
7519092
$2,09 Unit Price incl. VAT
24
EPS MOUNT; BLACK
5257531329
Not Available
25
DRIVER SIDE BOOT RACK
5412012
$115,49 Unit Price incl. VAT
26
PASSENGER SIDE BOOT RACK
5412013
$104,99 Unit Price incl. VAT
27
TAPERED END ROD; RIGHT
7061216
$157,49 Unit Price incl. VAT
28
JAM NUT; LEFT; 14-1.5 MM
2205058
$41,99 Unit Price incl. VAT
29
BOOT CLAMP; SMALL
7080978
$4,19 Unit Price incl. VAT
30
BOOT CLAMP; LARGE
7080979
$10,49 Unit Price incl. VAT
31
TAPERED END ROD; LEFT
7061215
$157,49 Unit Price incl. VAT

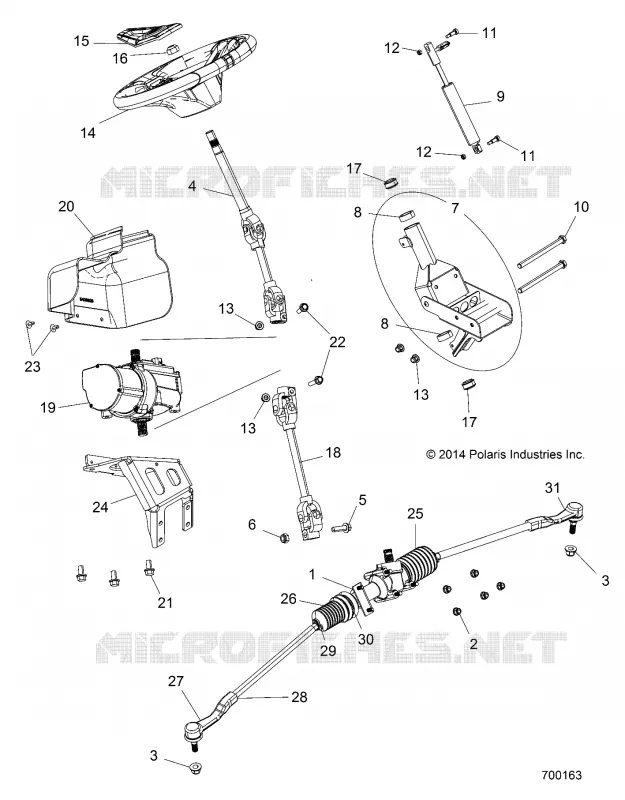

Find the detailed POWER STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RZR S 900 60 INCH EPS EU / TRACTOR

DOORS

DOORS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FENDER FLAIRS

FENDER FLAIRS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FLOOR & ROCKER PANELS

FLOOR & ROCKER PANELS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FRONT BUMPER

FRONT BUMPER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FUEL TANK

FUEL TANK

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

BARKE CALIPER REAR

BARKE CALIPER REAR

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

PARKING BRAKE

PARKING BRAKE

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

BRAKES, PEDAL AND MASTER CYLINDER

BRAKES, PEDAL AND MASTER CYLINDER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

BRAKES, PEDAL AND MASTER CYLINDER

BRAKES, PEDAL AND MASTER CYLINDER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, PRIMARY CLUTCH -Z18VBE87F2/S87C2/CU (49RGRCLUTCHDRV1323181)

DRIVE TRAIN, PRIMARY CLUTCH -Z18VBE87F2/S87C2/CU (49RGRCLUTCHDRV1323181)

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

ELECTRICAL, ACCESSORY COMPONENTS

ELECTRICAL, ACCESSORY COMPONENTS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

BATTERY

BATTERY

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

CYLINDER AND HEAD

CYLINDER AND HEAD

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

ENGINE, ENGINE MOUNTING

ENGINE, ENGINE MOUNTING

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

EXHAUST SYSTEM

EXHAUST SYSTEM

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

ENGINE, INTAKE & THROTTLE BODY

ENGINE, INTAKE & THROTTLE BODY

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

OIL DIPSTICK AND BREATHER

OIL DIPSTICK AND BREATHER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FRONT SUSPENSION STABILIZER BAR

FRONT SUSPENSION STABILIZER BAR

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

REAR SUSPENSION CARRIER

REAR SUSPENSION CARRIER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

REAR SUSPENSION SHOCK MOUNTING

REAR SUSPENSION SHOCK MOUNTING

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FRONT SUSPENSION SHOCK INTERNALS

FRONT SUSPENSION SHOCK INTERNALS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

BODY, FUEL PFA COVER

BODY, FUEL PFA COVER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DECALSS

DECALSS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

HOOD & FRONT BODY WORK

HOOD & FRONT BODY WORK

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

MIRRORS / HITCH / LICENSE PLATE

MIRRORS / HITCH / LICENSE PLATE

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

SEAT BELT MOUNTING

SEAT BELT MOUNTING

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

BRAKE LINES AND MASTER CYLINDER

BRAKE LINES AND MASTER CYLINDER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

CHASSIS, CAB ACCESORIES- Z18VBS87C2/CU (701601)

CHASSIS, CAB ACCESORIES- Z18VBS87C2/CU (701601)

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

CHASSIS, TOW HOOK

CHASSIS, TOW HOOK

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, HALF SHAFT, REAR

DRIVE TRAIN, HALF SHAFT, REAR

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

ECU / REGULATOR

ECU / REGULATOR

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

HEADLIGHTS AND TAILLIGHTS

HEADLIGHTS AND TAILLIGHTS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

COOLING, WATERPUMP

COOLING, WATERPUMP

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

ENGINE, CRANKSHAFT AND PISTON

ENGINE, CRANKSHAFT AND PISTON

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

STARTER & DRIVE

STARTER & DRIVE

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

THROTTLE PEDAL

THROTTLE PEDAL

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FRONT SUSPENSION CARRIER

FRONT SUSPENSION CARRIER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FRONT SUSPENSION SHOCK MOUNTING

FRONT SUSPENSION SHOCK MOUNTING

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

WHEELS, FRONT

WHEELS, FRONT

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FRONT SUSPENSION SHOCK INTERNALS

FRONT SUSPENSION SHOCK INTERNALS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

REAR RACK AND FENDERS

REAR RACK AND FENDERS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

SEAT BASE

SEAT BASE

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

SEAT BELT AND MOUNTING

SEAT BELT AND MOUNTING

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

SEAT ASM. AND SLIDER

SEAT ASM. AND SLIDER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT GEARCASE INTERNALS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

WIRE HARNESS

WIRE HARNESS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

ENGINE, BALANCER

ENGINE, BALANCER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

COOLING SYSTEM

COOLING SYSTEM

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

VALVES AND CAMSHAFTS

VALVES AND CAMSHAFTS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

OWNERS MANUAL AND TOOL KIT

OWNERS MANUAL AND TOOL KIT

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

POWER STEERING

POWER STEERING

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DASHBOARD & GLOVEBOX

DASHBOARD & GLOVEBOX

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

PASSENGER GRAB BAR

PASSENGER GRAB BAR

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

MIRRORS / HITCH / LICENSE PLATE

MIRRORS / HITCH / LICENSE PLATE

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

SEAT BASE ADJUSTER

SEAT BASE ADJUSTER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

BARKE CALIPER FRONT

BARKE CALIPER FRONT

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

CHASSIS, CAB

CHASSIS, CAB

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

CHASSIS, MAIN FRAME AND SKID PLATE

CHASSIS, MAIN FRAME AND SKID PLATE

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, MAIN GEARCASE INTERNALS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

ELECTRICAL, INSTRUMENTS & CONTROLS

ELECTRICAL, INSTRUMENTS & CONTROLS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

IGNITION

IGNITION

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

COOLING, THERMOSTAT AND BYPASS

COOLING, THERMOSTAT AND BYPASS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

CRANKCASE

CRANKCASE

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

OIL PUMP AND OIL COOLER

OIL PUMP AND OIL COOLER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

ENGINE, STATOR AND COVER

ENGINE, STATOR AND COVER

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION CONTROL ARMS

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

FRONT SUSPENSION SHOCK MOUNTING

FRONT SUSPENSION SHOCK MOUNTING

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

STABILIZER BAR, REAR

STABILIZER BAR, REAR

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

WHEELS, REAR

WHEELS, REAR

for RZR S 900 60 INCH EPS EU / TRACTOR from 2018

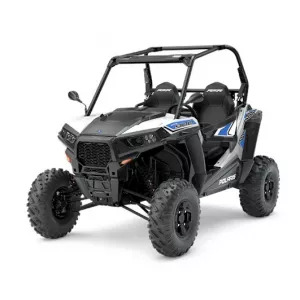

POLARIS RZR S 900 60 INCH EPS EU / TRACTOR 2018

RZR S 900 60 INCH EPS EU / TRACTOR

RZR S 900 60 INCH EPS EU / TRACTOR

Model : RZR 900 60 INCH EU/TRACTOR

Engine capacity : 900

Year : 2018

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
