1
Engine displacement
800
2
Year
2003
3
Trim
800 RMK 159 F/O BUILT AFTER 1/01/02
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
SKI
by
FRONT SUSPENSION
COOLING SYSTEM
1
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
2
HOSE-ENG OUT/TEE
5412135
9999999
Not Available
3
CONNECTOR-TEE 1X1X3/4 BARBED
7052260
9999999
Not Available
4
HOSE-TEE/BRAKE COOLER
5412081
9999999
Not Available
5
HOSE GRIPPER/BRK COOLER
5411946
9999999
Not Available
6
HOSE-CENTER OUT/BOTTLE IN
5412245
9999999
Not Available
7
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
8
WELD-GRIPPER/DEICER LH
1240104
9999999
Not Available
8
WELD-GRIPPER/DEICER RH
1240105
9999999
Not Available
9
HOSE-GRIPPER/REAR CLOSE-OFF
5412205
9999999
Not Available
10
PLATE-REAR COOLER
5245708
9999999
Not Available
11
CLOSEOFF EXCHANGER WELD REAR
1240099
9999999
Not Available
12
RIVET
7661637
$2,09 Unit Price incl. VAT
13
HOSE-GRIPPER/CENTER COOLER
5412083
9999999
Not Available
14
TUBING-CONVOLUTED 1X4.00
5521602
9999999
Not Available
15
SPACER RUBBER
5810291
$7,34 Unit Price incl. VAT
16
WELD-COOLER BULKHEAD
2520292
9999999
Not Available
17
HOSE-CENTER COOLER/TEE
5412082
9999999
Not Available
18
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
19
PUMP AND BOTTLE HOSE
5412160
9999999
Not Available
20
CLAMP-HOSE 1.50 VINYL COATED
7080951
9999999
Not Available
21
WELD-BOTTLE COOLANT
2520312
2520598
$99,74 Unit Price incl. VAT
22
PRESSURE CAP; 13 LB
2511270
9999999
Not Available
23
DECAL-WATER BOTTLE CAP
7170063
9999999
Not Available
24
FUEL LINE; 1/4 ID
84500031525
Not Available
25
CABLE TIE
7080138
$5,24 Unit Price incl. VAT

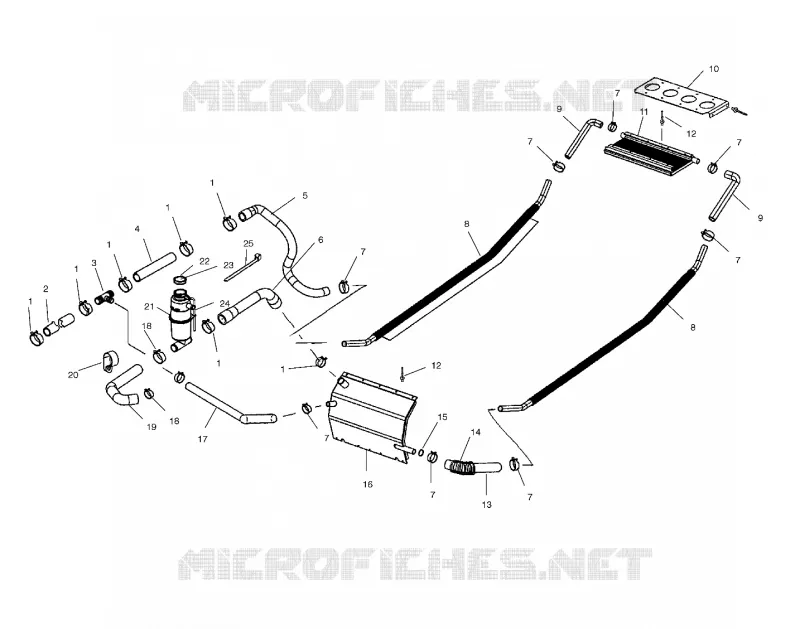

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
