1
Engine displacement
800
2
Year
2003
3
Trim
800 RMK 159 F/O BUILT AFTER 1/01/02
4
Parts Catalog
DRIVE CLUTCH (ELECTRIC START MODELS)
5
Parts Diagram
Parts Catalog
CHAINCASE (REVERSE MODELS)
by
DRIVEN CLUTCH
DRIVE CLUTCH (ELECTRIC START MODELS)
-
WIDE ROLLER SPIDER REBUILD KIT
2201169
$330,74 Unit Price incl. VAT
1
BOLT
7512265
9999999
Not Available
2
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
3
COVER BEARING
3514347
$73,49 Unit Price incl. VAT
3
BEARING COVER
3576516
$62,99 Unit Price incl. VAT
4
RETAINING RING COVER
7710417
$2,09 Unit Price incl. VAT
5
CLUTCH SPRING; BLACK/GREEN
7042083
$115,49 Unit Price incl. VAT
6
JAM NUT
5020425
$41,99 Unit Price incl. VAT
7
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
8
ROLLER AND BUSHING ASSEMBLY
1321622
$62,99 Unit Price incl. VAT
9
GUIDE BUTTON
5430445
$11,54 Unit Price incl. VAT
10
SPACER .130
5132542
9999999
Not Available
10
SPACER .020
5210752
$3,14 Unit Price incl. VAT
10
SPACER .025
5242981
$7,34 Unit Price incl. VAT
10
SPACER .050
5210754
$6,29 Unit Price incl. VAT
10
SPACER .032
5210753
$4,19 Unit Price incl. VAT
11
CLUTCH WEIGHT; 10-56 (3)
1321684
$89,24 Unit Price incl. VAT
11
BUSHING WEIGHT ASSEMBLY(3)
1321587
$73,49 Unit Price incl. VAT
12
HARDENED WEIGHT PIN
7515105
$26,24 Unit Price incl. VAT
13
BEARING SLEEVE
3576502
$40,94 Unit Price incl. VAT
14
INSERT MOVEABLE
5010188
$13,64 Unit Price incl. VAT
15
GEAR-RING
5131062
2877485
$163,79 Unit Price incl. VAT
16
BOLT
7515351
$7,34 Unit Price incl. VAT
17
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
18
ASM-DRIVE CLUTCHESBASIC#125
1322022
9999999
Not Available
18
ASM-DRIVE CLUTCHESBSC118 W/B
1321932
9999999
Not Available
19
DRIVE CLUTCH KIT
2200387
$47,24 Unit Price incl. VAT
20
ROLLER PIN; 1-1/8
5133054
9999999
Not Available
20
ROLLER PIN; 1 IN
5133079
$11,54 Unit Price incl. VAT

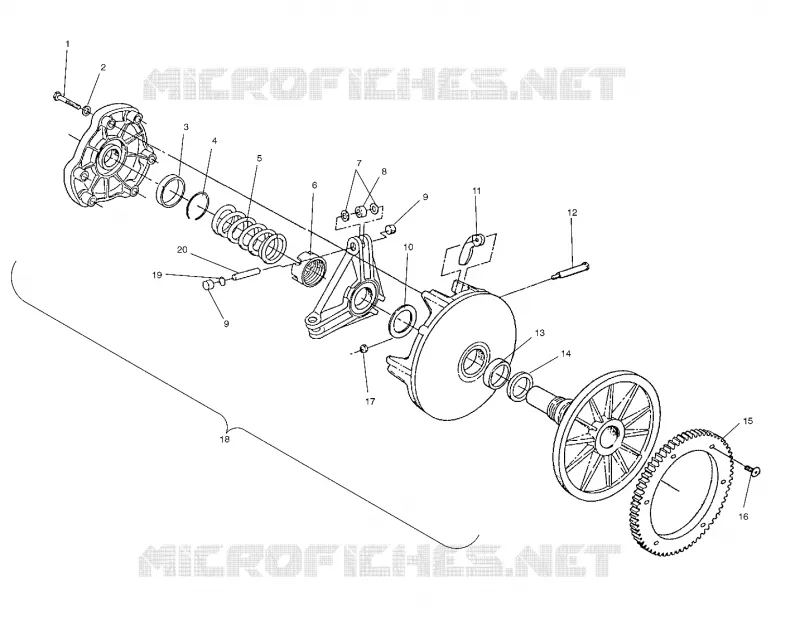

Find the detailed DRIVE CLUTCH (ELECTRIC START MODELS) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
