1
Engine displacement
800
2
Year
2003
3
Trim
800 RMK 159 F/O BUILT AFTER 1/01/02
4
Parts Catalog
MAGNETO
5
Parts Diagram
Parts Catalog
WATER PUMP
by
RECOIL STARTER
MAGNETO
1
SCR-M6X1.0X25 MM HX/FL L (10)
7517998
9999999
Not Available
1
SCREW
7516823
$5,76 Unit Price incl. VAT
2
PULLEY RECOIL
3021144
9999999
Not Available
3
WATERPUMP BELT KIT
2201821
$101,84 Unit Price incl. VAT
4
PULLEY WATERPUMPDRIVE
5630824
9999999
Not Available
5
NUT
7546909
9999999
Not Available
6
WASHER
7555907
$10,49 Unit Price incl. VAT
7
IGNITION FLYWHEEL; 18 DEGREES
4010677
9999999
Not Available
8
SCREW
7517246
$4,71 Unit Price incl. VAT
9
WASHER LOCK
7555969
9999999
Not Available
10
WASHER FLAT
7555970
9999999
Not Available
11
STATOR IGNITION
4010297
9999999
Not Available
12
SCREW
7516734
$5,76 Unit Price incl. VAT
13
HOUSING IGN. ASM.
1202161
9999999
Not Available
14
GROMMET STATOR WIRES
5411178
9999999
Not Available
15
SPARK PLUG CAP
4020159
9999999
Not Available
16
SUBSTITUTED BY 4010124-305
4010124
$173,24 Unit Price incl. VAT
17
COIL IGNITION KOK
4060229
4016199
$246,74 Unit Price incl. VAT
18
KIT-CDI S80-70-4010720
2202327
9999999
Not Available
18
DECAL SPARKPLUG REC.
7077026
9999999
Not Available
18
KIT-CDI S70-70-4010718
2202330
9999999
Not Available
19
HARNESS-IGN SNO TWN KOK NEW
4010549
9999999
Not Available

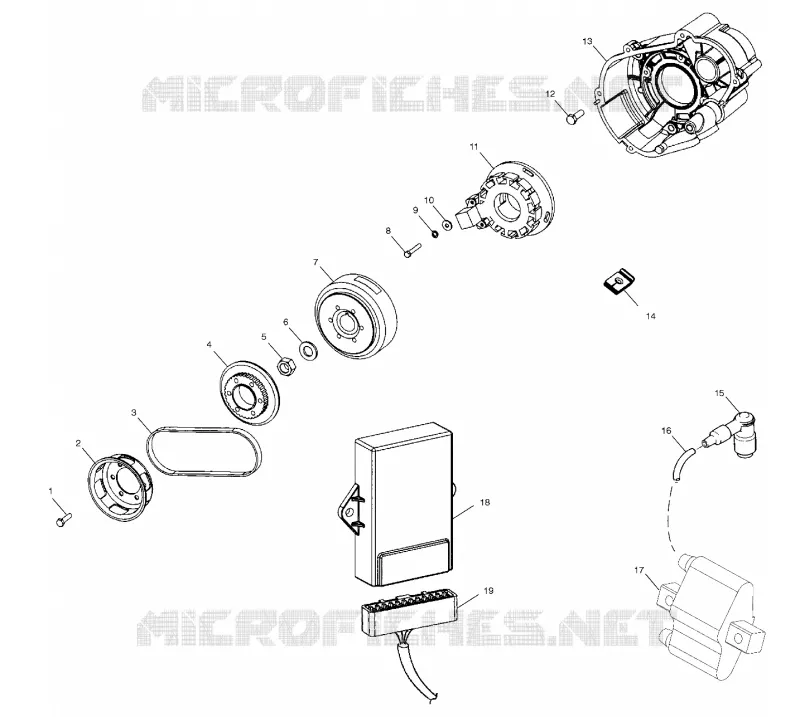

Find the detailed MAGNETO POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
