1
Engine displacement
500
2
Year
1995
3
Trim
500 CARB - 0952764
4
Parts Catalog

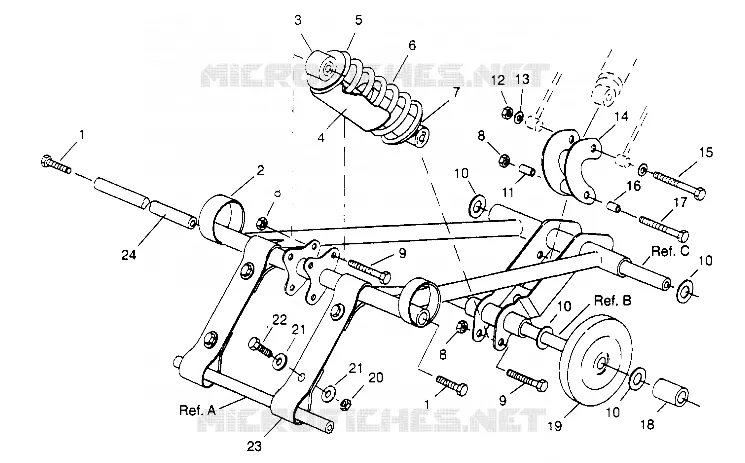

FRONT TORQUE ARM 500 CARB 0952764 (4929192919B011)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY 500 CARB 0952764 (4929192919B009)
by
REAR TORQUE ARM 500 CARB 0952764 (4929192919B012)
FRONT TORQUE ARM 500 CARB 0952764 (4929192919B011)
1
1
2
3
4
5
6
7
8
8
8
9
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
1
BOLT NYLOC BLACK
7515493
9999999
Not Available
2
ARM FR.TORQUE BLK.
1540794067
Not Available
3
SHOCK CTR.SUSP.
7041281
9999999
Not Available
4
SPRING SHIELD
5430671
9999999
Not Available
5
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
6
SPRING-SHOCK SUSP
7041140
Not Available
7
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
8
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
9
SCREW
7515415
9999999
Not Available
10
BUSHING
7556301
$6,29 Unit Price incl. VAT
11
PIVOT TUBE BUSHING
5020561
9999999
Not Available
12
NUT FLEXLOC
7542402
9999999
Not Available
13
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
14
SHOCK ARM WELDBLK.
1540791067
Not Available
15
BOLT
7515525
9999999
Not Available
16
SPACER
5333028
9999999
Not Available
17
BOLT
7515438
$9,44 Unit Price incl. VAT
18
SPACER OUTER
5332784
9999999
Not Available
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
21
WASHER
7555716
$3,14 Unit Price incl. VAT
22
BOLT
7515307
$7,34 Unit Price incl. VAT
23
STRAP LIMITER
5410397
9999999
Not Available
24
SHAFT MOUNTING
5010149
9999999
Not Available

Find the detailed FRONT TORQUE ARM 500 CARB 0952764 (4929192919B011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
