1
Engine displacement
500
2
Year
1995
3
Trim
500 CARB - 0952764
4
Parts Catalog
REAR TORQUE ARM 500 CARB 0952764 (4929192919B012)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM 500 CARB 0952764 (4929192919B011)
by
DRIVE CLUTCH ASSEMBLY 500 CARB 0952764 (4929192919B013)
REAR TORQUE ARM 500 CARB 0952764 (4929192919B012)
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
13
14
15
16
16
17
18
19
20
20
21
21
22
23
24
25
26
27
28
29
30
1
SHAFT MTG REAR
5020570
9999999
Not Available
2
ARM R.TORQUE BLK.
1540793067
Not Available
3
SHAFT R.TORQUE ARM
5020727
Not Available
4
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
5
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
6
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
7
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
8
COLLAR-BRG. LOCK
5010155
9999999
Not Available
9
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
10
WAVE WASHER
7571605
$11,54 Unit Price incl. VAT
11
CARRIER WHEEL
1543023
9999999
Not Available
12
SPRING LH R.SUSP BLK. (Soft)
7041246067
Not Available
12
SPRING RH R.SUSP BLK.
7041249067
Not Available
12
SPRING LH BLK. (SKS)
7041235067
Not Available
12
SPRING RH R.SUSP BLK.
7041247067
Not Available
12
SPRING RH BLK.
7041236067
Not Available
12
SPRING LH R.SUSP BLK.
7041248067
Not Available
13
BUSHING
7556509
$3,14 Unit Price incl. VAT
14
TUBE SPRING
5521234
9999999
Not Available
15
BOLT
7512247
9999999
Not Available
16
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
17
STRAP LIMITER
5410587
9999999
Not Available
18
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
19
NUT FLEXLOC
7542402
9999999
Not Available
20
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
21
PIVOT TUBE BUSHING
5020561
9999999
Not Available
22
SPACER R.PIVOT ARM
5333026
9999999
Not Available
23
ROD; SUSP;BLK.
1540792067
Not Available
24
SPACER
5333028
9999999
Not Available
25
SCREW
7512463
9999999
Not Available
26
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
27
BUSHING
5430537
$7,34 Unit Price incl. VAT
28
BUSHING R.SHOCK
5333030
9999999
Not Available
29
BOLT
7512329
$7,34 Unit Price incl. VAT
30
SHOCK ASM.
7041237
9999999
Not Available

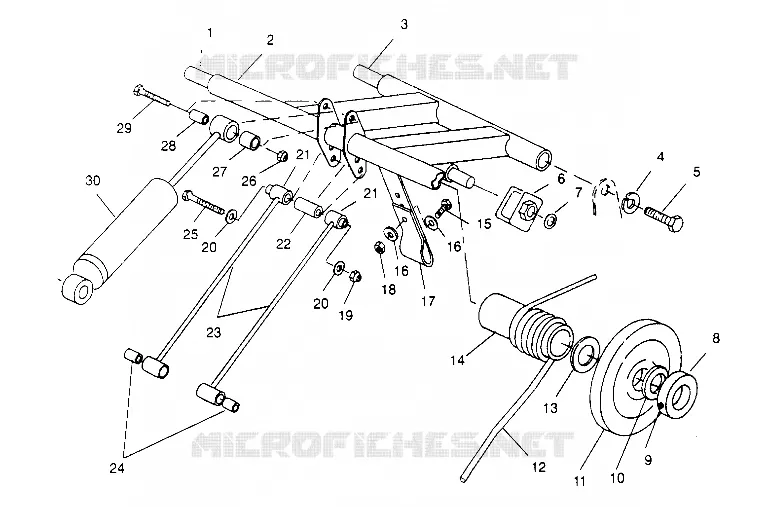

Find the detailed REAR TORQUE ARM 500 CARB 0952764 (4929192919B012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
