1
Engine displacement
500
2
Year
1995
3
Trim
500 CARB - 0952764
4
Parts Catalog
CONTROLS 500 CARB 0952764 (4929192919B004)
5
Parts Diagram
Parts Catalog
IGNITION WIRE HARNESS 500 CARB 0952764 (4929192919B003)
by
SUSPENSION ASSEMBLY 500 CARB 0952764 (4929192919B009)
CONTROLS 500 CARB 0952764 (4929192919B004)
1
2
3
3
3
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
2
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
3
LEVER ASMW/WARMER
2010094
9999999
Not Available
3
LEVER-THROTTLE
5430638
9999999
Not Available
4
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
5
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
6
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
7
SCREW SET
7512465
$7,34 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
10
WASHER (10)
7555727
9999999
Not Available
11
SCREW
7511848
$7,34 Unit Price incl. VAT
12
DESC NOT_AVAILABLE
5810993
Not Available
13
PLATE BLK WIREHOLDER
5240256067
Not Available
14
SCREW
7511858
$7,34 Unit Price incl. VAT
15
SWITCH; DIMMER
4110136
9999999
Not Available
16
MASTER CYL.ASM3/4"
2050070
9999999
Not Available
17
SCREW W/WASHER
7512050
9999999
Not Available
18
COVER MASTER CYL.
5630338
9999999
Not Available
19
MASTER CYLINDER GASKET
5410527
9999999
Not Available
20
WASHER; BAFFLE
1930662
9999999
Not Available
21
BAFFLE MASTER CYL.
1930673
9999999
Not Available
22
MASTER CYLINDER HOUSING
5130955
9999999
Not Available
23
BOLT SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
24
CLAMP MASTER CYL.
5630342
9999999
Not Available
25
WASHER
7555708
9999999
Not Available
26
SPRING; MASTERCYL.
7041311
9999999
Not Available
27
U-PACKING SEAL
5410164
9999999
Not Available
28
PISTON MASTER CYL.
5020679
9999999
Not Available
29
O-RING
5410163
$3,14 Unit Price incl. VAT
30
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
31
STRAP PARK.BRAKE TAG
7080447
9999999
Not Available
32
TAG-PARK BRAKE WARNING [S99CM][FROM 5/18/2018]
5431389
Not Available
33
SCREW
7511866
$9,44 Unit Price incl. VAT
34
BUSHING PK.BRAKE LEVER
5020670
9999999
Not Available
35
LEVER PARK.BRAKE
5240809
9999999
Not Available
36
SPRING PK.BRAKE
7041229
9999999
Not Available
37
LEVER BRAKE
5630409
9999999
Not Available
38
BUSHING BRAKE LEVER
5332931
9999999
Not Available
39
BOLT BRAKE LEVER
7512287
9999999
Not Available

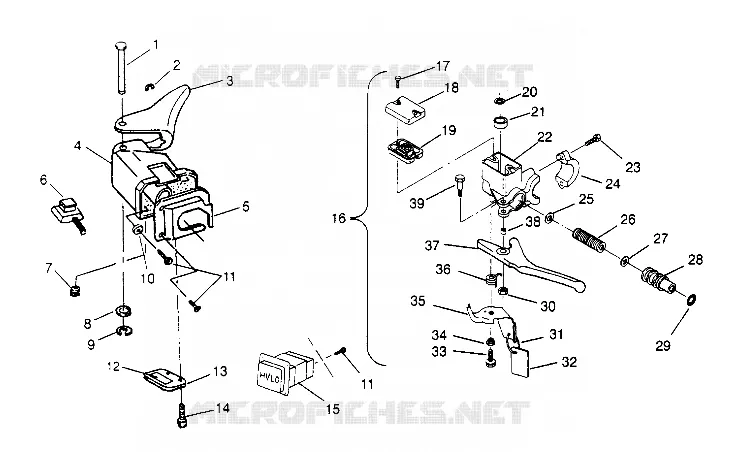

Find the detailed CONTROLS 500 CARB 0952764 (4929192919B004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
