CRANKCASE for POLARIS SPORTSMAN 570 6X6 from 2019

CRANKCASE

1

CRANKCASE KIT

2206361

$1 837,49 Unit Price incl. VAT

2

BALL BEARING; 30 X 62 X 16

3514426

$34,64 Unit Price incl. VAT

3

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

4

PIN-DOWEL M6X10

5137611

5132835

$4,19 Unit Price incl. VAT

5

BEARING RETAINER PLATE

5256915

$47,24 Unit Price incl. VAT

6

BEARING SPACER MACHINED

5140919

5144728

$41,99 Unit Price incl. VAT

7

SCR-M8X1.25X50

7520105

$9,44 Unit Price incl. VAT

8

SCREW

7517598

$19,94 Unit Price incl. VAT

9

SCREW 6 MM X 1.0 MM X 25 MM

7519754

$7,34 Unit Price incl. VAT

10

RING-SNAP 80X2.5

7710660

$7,34 Unit Price incl. VAT

11

SOCKET PLUG; 12 MM X 1.5 MM

7052306

$31,49 Unit Price incl. VAT

12

SCREW 8 MM X 1.25 MM X 90 MM

7520104

$10,49 Unit Price incl. VAT

13

CRANKSHAFT SEAL

3610171

$89,24 Unit Price incl. VAT

14

BALL BEARING; 40 X 80 X 18

3514389

3515831

$55,43 Unit Price incl. VAT

15

COPPER WASHER

5812232

7556937

$6,29 Unit Price incl. VAT

16

OIL PAN MACHINED

5138327

5143696

$188,99 Unit Price incl. VAT

17

OIL PAN GASKET

5414626

$20,99 Unit Price incl. VAT

18

RING-RTNG DHO-62

7710681

$13,64 Unit Price incl. VAT

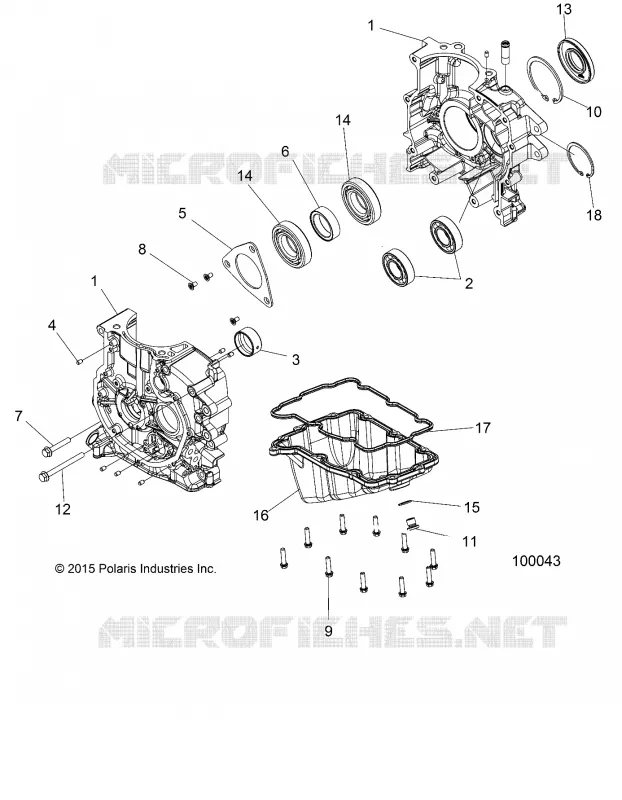

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
