1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 6X6
4
Parts Catalog
DUMP BOX
5
Parts Diagram
Parts Catalog
DECALSS
by
DUMP BOX LEVER & SHOCK MOUNTING
DUMP BOX
16
17
18
19
20
20
21
22
23
24
25
26
1
SCREW
7515177
$5,76 Unit Price incl. VAT
2
WASHER .275 X .84 X .075 BLA
7556386
$9,44 Unit Price incl. VAT
3
ROD HINGE
5132358
$99,74 Unit Price incl. VAT
4
TAILGATE PLASTIC
5433388
$745,49 Unit Price incl. VAT
5
SCREW
7517561
$3,14 Unit Price incl. VAT
6
LATCH FLSHBLT TLGATE BLK
5433656
$120,74 Unit Price incl. VAT
7
T-GATE PADDLE LATCH; BLACK
5433655
$152,24 Unit Price incl. VAT
8
HITCH PIN
7661644
$4,19 Unit Price incl. VAT
9
WSHR RUBBER W/METAL BACK
7556143
$9,44 Unit Price incl. VAT
10
SHFT TLGATE LTCH 5/16 ZINC
5132373
$23,09 Unit Price incl. VAT
11
BACKREST ASSEMBLY; 6 X 6; GLOSS BLACK
2687058070
Not Available
11
BACKREST COVERING; 6 X 6; BLACK
2687059070
Not Available
12
BOX LATCH BRACKET
5243304
$31,49 Unit Price incl. VAT
13
SCREW-1/4-20X2 (10)
7517938
$2,40 Unit Price incl. VAT
14
TIE DOWN RING
7081101
$14,69 Unit Price incl. VAT
15
MUD GUARD; BOX; LEFT; GLOSS BLACK
5452897070
Not Available
16
SCREW1/4-20X3/4PA PN;LK;G2-Y
7517742
$10,49 Unit Price incl. VAT
17
TAILGATE CABLE
7080881
$73,49 Unit Price incl. VAT
18
COVER-TAILGATE BLK
5244068067
Not Available
19
PLASTIC BOX; 6 X 6
5453029
5459927
$1 517,24 Unit Price incl. VAT
20
DECAL-REFLECT.2.88 RED
7079925
$15,74 Unit Price incl. VAT
21
SCREW
7517686
$3,14 Unit Price incl. VAT
22
MUD GUARD; BOX; RIGHT; GLOSS BLACK
5452898070
Not Available
23
WELD-BOX SUPPORT;BLK
1016881067
Not Available
24
SCR-1/4-20X5/8 TORX TRUSS
7518905
$7,34 Unit Price incl. VAT
25
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
26
SCR-10-24X3/4 PH/TX/TRI-SEMS Y (10)
7518196
$2,09 Unit Price incl. VAT

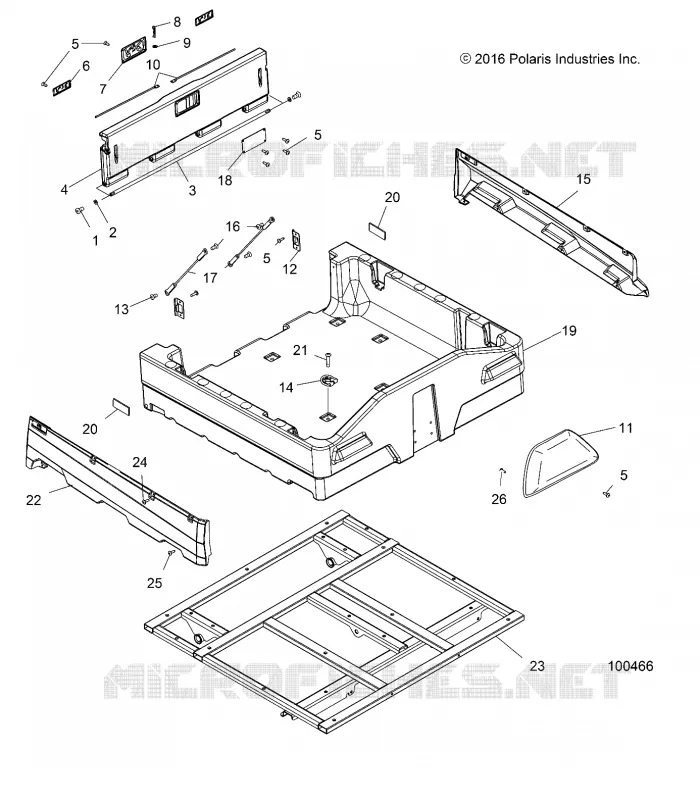

Find the detailed DUMP BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
