ENGINE, MOUNTING for POLARIS SPORTSMAN 570 6X6 from 2019

ENGINE, MOUNTING

1

ENGINE MOUNT; REAR

5256926

$52,49 Unit Price incl. VAT

2

ISOLATOR 3/8 -24 M/M

3023593

3024012

$83,99 Unit Price incl. VAT

2

ISOLATOR-3/8-24M/M 60DURO

3022071

3024012

$83,99 Unit Price incl. VAT

3

ISOLATOR TUBE; REAR

5337887

$27,29 Unit Price incl. VAT

4

ISOLATOR-RUBBER 40D SILICONE

5415404

$9,44 Unit Price incl. VAT

5

ENGINE BRACKET MOUNT; FRONT; LEFT

5259038

$31,49 Unit Price incl. VAT

6

CAST ENGINE MOUNT REAR

5633144

5634600

$141,74 Unit Price incl. VAT

7

ENGINE BRACKET MOUNT; FRONT; RIGHT

5259039

$31,49 Unit Price incl. VAT

8

SCREW

7515417

9999999

Not Available

9

BOLT

7515528

$15,74 Unit Price incl. VAT

10

BOLT-3/8-16X7/8 HEX FLANGE GR5

7518364

$3,14 Unit Price incl. VAT

11

SCR-3/8-24X6.00-HXCP-GR8-Y

7518481

$15,74 Unit Price incl. VAT

12

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

13

NUT

7547108

$9,44 Unit Price incl. VAT

14

WASHER

7555761

$4,19 Unit Price incl. VAT

15

ENGINE MOUNT HOSE

5415442

$9,44 Unit Price incl. VAT

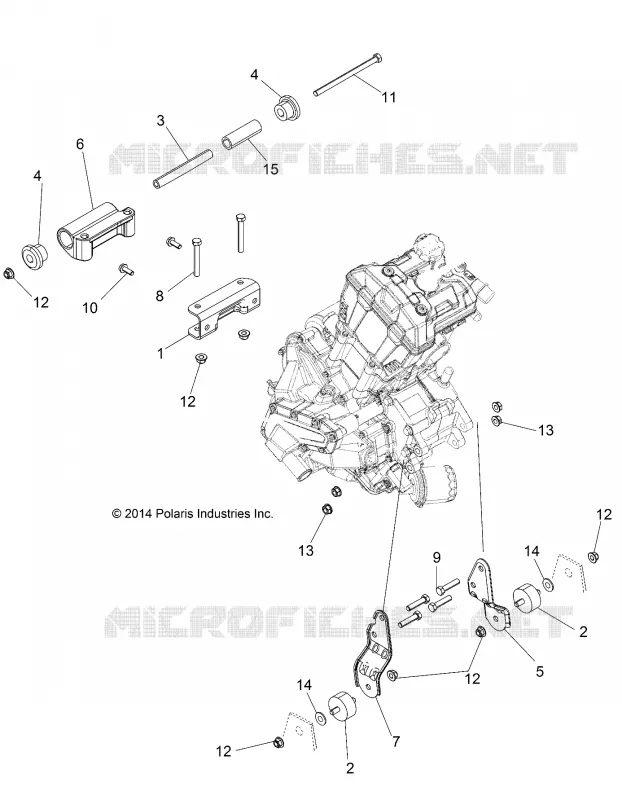

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
