1
Engine displacement
1000
2
Year
2020
3
Trim
RANGER XP 1000 EPS NORTHSTAR RIDE COMMAND
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE MANIFOLD
by
CYLINDER AND PISTON
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
HVAC FAN ASSEMBLY
2415046
2415502
$797,99 Unit Price incl. VAT
2
HEX HEAD FLANGE SCREW; 6 MM X 16 MM
7518591
$6,29 Unit Price incl. VAT
3
HVAC CORE RADIATOR ASSEMBLY
1241164
$976,49 Unit Price incl. VAT
4
SHROUD-RADIATOR FRT HVAC
5453898070
Not Available
5
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
6
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
7
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
8
SURGE TANK
5439202
$178,49 Unit Price incl. VAT
9
GASKET
5810279
$4,19 Unit Price incl. VAT
10
FUEL LINE; 95 CM
845000395
Not Available
11
GROMMET
7052028
$11,54 Unit Price incl. VAT
12
COOLANT TUBE; 1 IN
5140928
$104,99 Unit Price incl. VAT
13
HOSE-COOLANT 3WAY-ENG
5416210
$62,99 Unit Price incl. VAT
14
HVAC FAN SHROUD
5454208
9999999
Not Available
15
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
16
SCR-M6X1X40 TR/TX-M
7519001
$7,34 Unit Price incl. VAT
17
UPPER HOSE; RAD
5416209
$141,74 Unit Price incl. VAT
18
ENGINE HOSE OUTLET
5416140
$89,24 Unit Price incl. VAT
19
HOSE-COOLANT 3WAY-HEATER
5416211
$62,99 Unit Price incl. VAT
20
ENGINE HOSE
5416139
$29,39 Unit Price incl. VAT
21
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
22
RADIATOR MOUNT BRACKET; BLACK
5263654329
Not Available
23
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
24
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
25
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
26
COOLANT TUBE; UPPER; 1 IN
5140984
9999999
Not Available
27
SCREW
7512026
$2,09 Unit Price incl. VAT
28
CLIP-COOLANT ROUTING
5453767
$10,49 Unit Price incl. VAT
29
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
30
TEE CONNECTOR; 1 X 1 X 0.5
7052530
$10,49 Unit Price incl. VAT
31
CAP
1240694
$73,49 Unit Price incl. VAT

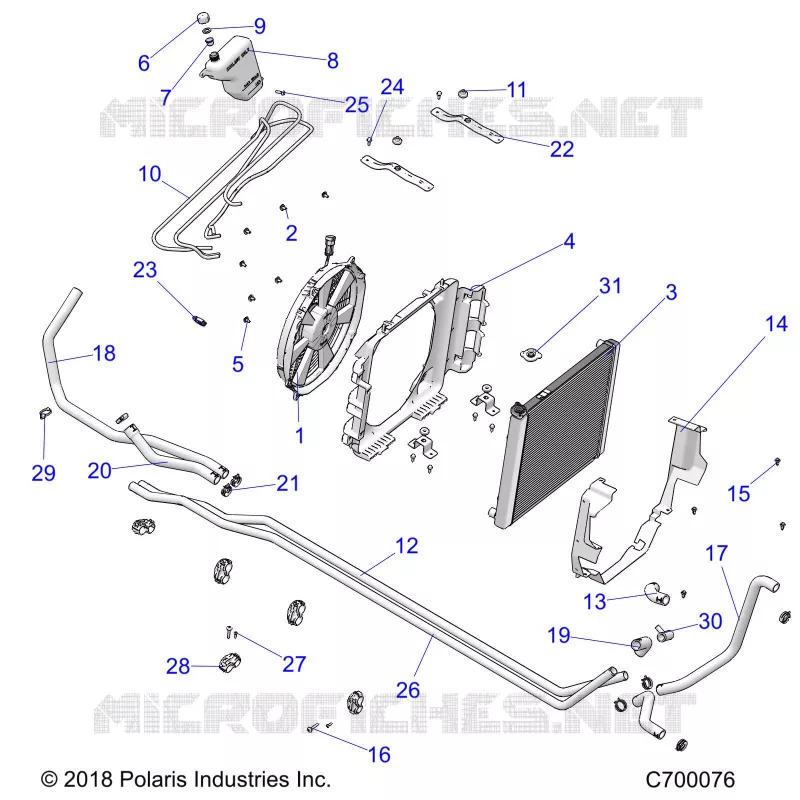

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
