1
Engine displacement
1000
2
Year
2020
3
Trim
RANGER XP 1000 EPS NORTHSTAR RIDE COMMAND
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
ENGINE, ALTERNATOR COVER HVAC
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
1
AIRBOX COVER ASSEMBLY
1241271
$167,99 Unit Price incl. VAT
2
AIRBOX
5455271
$220,49 Unit Price incl. VAT
3
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
4
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
5
ASM-AIRBOX CLIP
7082449
$12,59 Unit Price incl. VAT
6
AIRBOX SEAL
5814776
$68,24 Unit Price incl. VAT
7
AIR FILTER
7082265
$57,63 Unit Price incl. VAT
8
CLAMP-HOSE SLOTTED;60-80 DIA
7082315
$17,84 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
DECAL-CAUT.AIR BOX
7189751
Not Available
11
JOINT HOSE
5416135
$83,99 Unit Price incl. VAT
12
AIRBOX TO TUNNEL HOSE
5416169
$173,24 Unit Price incl. VAT
13
TUNNEL DUCT
5453765
$125,99 Unit Price incl. VAT
14
INTAKE DUCT; FRONT
5453766
$89,24 Unit Price incl. VAT
15
NARROW BAND CLAMP; 70-90 MM
7081279
$5,76 Unit Price incl. VAT
16
CLAMP-HOSE SLOTTED;75-90 DIA
7082314
$19,94 Unit Price incl. VAT
17
WASHER
7555935
$4,19 Unit Price incl. VAT
18
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
19
ENGINE VENT HOSE
5416136
$62,99 Unit Price incl. VAT
20
AIRBOX TO PLENUM ASSEMBLY
1241155
$314,99 Unit Price incl. VAT
21
AIRBOX TO PLENUM HOSE
5416171
$194,24 Unit Price incl. VAT
22
FITTING-3/4 DOUBLE BARB
7052580
$10,49 Unit Price incl. VAT
23
HOSE CLAMP
7081903
$13,64 Unit Price incl. VAT
24
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT

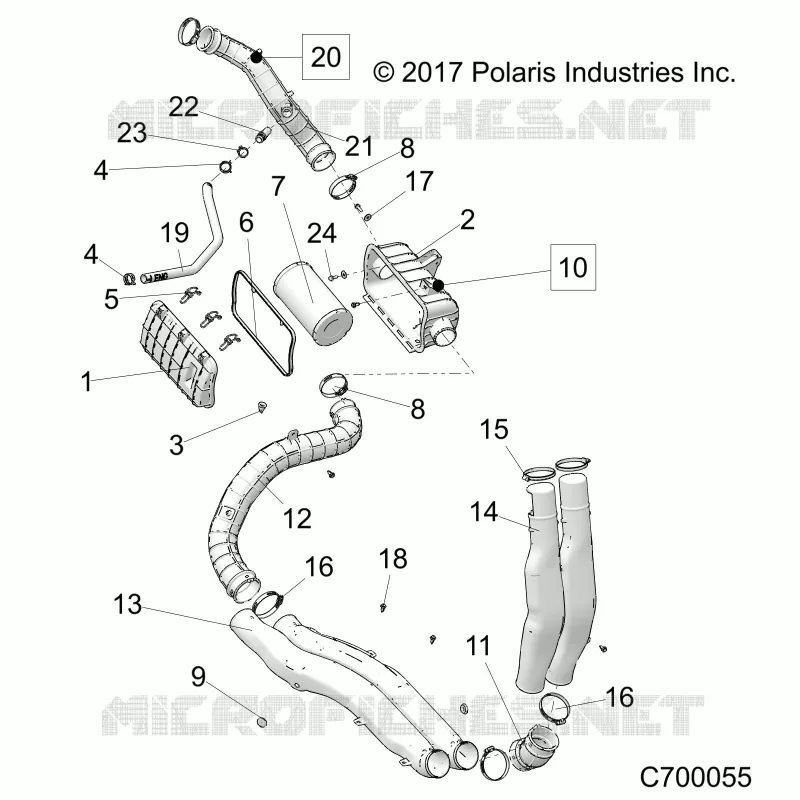

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
