DRIVE TRAIN, CLUTCH COVER AND DUCTING for POLARIS RANGER XP 1000 EPS NORTHSTAR RIDE COMMAND from 2020

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

1

CLUTCH COVER SEAL; OUTER

5416207

$68,24 Unit Price incl. VAT

1

BOLT-STUD

0452335

$20,99 Unit Price incl. VAT

2

BOLT-HEX FLANGE

0452344

0452343

$7,34 Unit Price incl. VAT

2

BOLT-M6X1.0X20 PH/TX-OLIVE D

7518616

$2,09 Unit Price incl. VAT

3

SCREEN BRACKET; BELT

5264258

$52,49 Unit Price incl. VAT

3

BUSHING; RUBBER

0452319

$13,64 Unit Price incl. VAT

4

CRANKCASE-RH

0454811

$440,99 Unit Price incl. VAT

4

INNER CLUTCH COVER

5142591

$414,74 Unit Price incl. VAT

5

TRANSJOINT BRACKET; MAG; MACHINED

5139822

5144809

$89,24 Unit Price incl. VAT

5

PIN-DOWEL

0452342

$7,34 Unit Price incl. VAT

6

INLET CLUTCH DUCT

5416355

5418049

$167,99 Unit Price incl. VAT

6

OIL SCREEN

0452369

$26,24 Unit Price incl. VAT

7

OIL SCREEN SPRING

0452370

$26,24 Unit Price incl. VAT

7

DUCT OUTLET CLUTCH

5416141

5418050

$167,99 Unit Price incl. VAT

8

DRAIN PLUG O-RING

0452371

$3,14 Unit Price incl. VAT

8

HOSE ADAPTOR BOOT

5454194

$47,24 Unit Price incl. VAT

9

DRAIN PLUG; OIL

0452368

$52,49 Unit Price incl. VAT

9

INLET CLUTCH DUCT SEAL PLATE

5633909

$68,24 Unit Price incl. VAT

10

CRANK CASE GASKET

0455347

0455488

$41,99 Unit Price incl. VAT

10

CLUTCH COVER KIT; OUTER; XP

2207560

$398,99 Unit Price incl. VAT

11

BALL BEARING

0452345

$60,89 Unit Price incl. VAT

11

O-RING SEAL; .128 X 7.895

5415647

$3,14 Unit Price incl. VAT

12

SPACER-COLLAR

0452320

$19,94 Unit Price incl. VAT

12

DRAIN PLUG; 9/16-18

5454915

$10,49 Unit Price incl. VAT

13

CRANKCASE; LEFT

0454812

$887,24 Unit Price incl. VAT

13

O-RING; 2.25 X 2.625 X .21; FKM

5416417

$25,19 Unit Price incl. VAT

14

PIN-DOWEL

0450142

$7,34 Unit Price incl. VAT

14

OUTLET DUCT MOUNT

5633826

5634514

$52,49 Unit Price incl. VAT

15

BOLT-HEX

0452137

$13,64 Unit Price incl. VAT

15

DECAL-BELT CAUTION/CHECK

7177469

Not Available

16

WASHER-FLAT

0452136

$7,34 Unit Price incl. VAT

16

JOINT HOSE

5416135

$83,99 Unit Price incl. VAT

17

CLUTCH INLET TO TUNNEL HOSE

5416170

$115,49 Unit Price incl. VAT

17

SPRING-DETENT

0452135

9999999

Not Available

18

CLAMP-HOSE SLOTTED;75-90 DIA

7082314

$19,94 Unit Price incl. VAT

18

BALL; STEEL

0452134

$10,49 Unit Price incl. VAT

19

CLAMP-HOSE SLOTTED;89-100 DIA

7081969

$19,94 Unit Price incl. VAT

19

BOLT-HEX WASHER FACE

0452132

$9,44 Unit Price incl. VAT

20

WASHER-FLAT

0452133

$7,34 Unit Price incl. VAT

20

SCREW 6 MM X 1.0 MM X 25 MM

7519754

$7,34 Unit Price incl. VAT

21

HEX HEAD FLANGE BOLT; 10 MM X 45 MM

7518531

$9,44 Unit Price incl. VAT

21

OIL SEAL

0452341

$73,49 Unit Price incl. VAT

22

SCR-TXBH-M12X1.75X110 8.8 SPC

7520945

$14,69 Unit Price incl. VAT

22

BOLT-HEX FLANGE

0452138

$6,29 Unit Price incl. VAT

23

O-RING GEAR; POSITION SENSOR

0452129

$3,14 Unit Price incl. VAT

23

SCR-TXBH-M12X1.75X245 8.8 SPC

7520946

$25,19 Unit Price incl. VAT

24

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$10,49 Unit Price incl. VAT

24

CRANK CASE SWITCH

0452329

$68,24 Unit Price incl. VAT

25

OIL SEAL

0452340

$20,99 Unit Price incl. VAT

25

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

26

NUT-FLANGE(10)

0450268

$1,56 Unit Price incl. VAT

26

WSHR FLAT INN DIA 10.5 OUT DIA

7556155

$9,44 Unit Price incl. VAT

27

O-RING 0.489 X 0.629 X 0.070

5416606

$6,81 Unit Price incl. VAT

27

WASHER-FLAT

0452325

$7,34 Unit Price incl. VAT

28

WASHER

7555919

$7,34 Unit Price incl. VAT

28

BRKT-MOTOR MOUNT

0452323

$83,99 Unit Price incl. VAT

29

BOLT-HEX FLANGE

0452324

$12,59 Unit Price incl. VAT

30

HOSE-VENT GEARCASE

0455231

$18,89 Unit Price incl. VAT

31

BREATHER-CRANKCASE LOWER

0452125

$20,99 Unit Price incl. VAT

32

NEEDLE BEARING

0452373

$60,89 Unit Price incl. VAT

33

WASHER-FLAT

0452374

$10,49 Unit Price incl. VAT

34

BALL BEARING

0452349

$60,89 Unit Price incl. VAT

35

BEARING-MAIN TRNSMSN SHAFT

0452156

$27,29 Unit Price incl. VAT

36

BALL BEARING

0452348

$54,59 Unit Price incl. VAT

37

BOLT-STUD

0452336

$19,94 Unit Price incl. VAT

38

BOLT-HEX FLANGE

0452330

$7,34 Unit Price incl. VAT

39

WASHER-FLAT

0452337

$7,34 Unit Price incl. VAT

40

CLIP-AIRBOX PREDATOR 50

0453934

$7,34 Unit Price incl. VAT

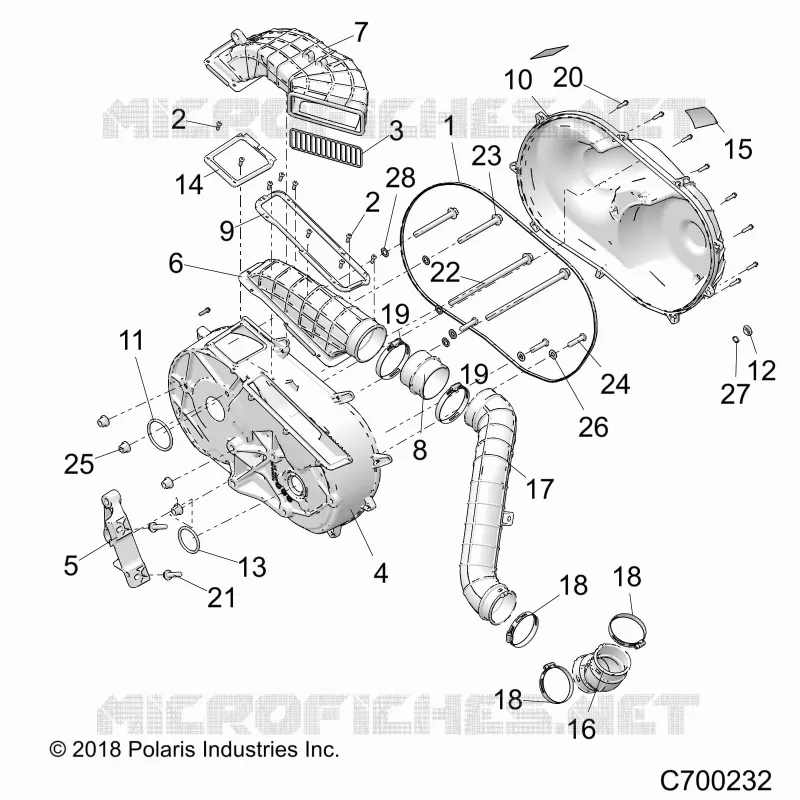

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
