1
Engine displacement
440
2
Year
1995
3
Trim
440 XCR SP - X951660
4
Parts Catalog
REAR TORQUE ARM 440 XCR SP X951660 (4932833283B014)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM 440 XCR SP X951660 (4932833283B013)
by
DRIVE CLUTCH ASSEMBLY 440 XCR SP X951660 (4932833283C001)
REAR TORQUE ARM 440 XCR SP X951660 (4932833283B014)
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
17
18
19
20
20
21
22
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
1
BOLT NYLOC BLACK
7515493
9999999
Not Available
2
SHAFT MTG REAR
5020570
9999999
Not Available
3
ARM R.TORQUE BLK.
1540930067
Not Available
4
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
5
SHAFT R.TORQUE ARM
5020727
Not Available
6
EYE BOLT
7010050
9999999
Not Available
7
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
8
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
9
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
10
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
11
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
12
COLLAR-BRG. LOCK
5010155
9999999
Not Available
13
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
14
WAVE WASHER
7571605
$11,54 Unit Price incl. VAT
15
CARRIER WHEEL
1543023
9999999
Not Available
16
SPRING LH TOR.(.437/77DEG) (Firm)
7041419067
Not Available
16
SPRING LH TOR.(.421/77DEG)
7041417067
Not Available
16
SPRING RH TOR.(.437/77DEG)
7041420067
Not Available
16
SPRING LH TOR.(.406/77DEG.) (Soft)
7041415067
Not Available
16
SPRING RH TOR.(.406/77DEG.) (Soft)
7041416067
Not Available
16
SPRING RH TOR.(.421/77DEG)
7041418067
Not Available
17
BUSHING
7556509
$3,14 Unit Price incl. VAT
18
TUBE SPRING
5521234
9999999
Not Available
19
BOLT
7515307
$7,34 Unit Price incl. VAT
20
WASHER
7555716
$3,14 Unit Price incl. VAT
21
STRAP R.LIMITER
5410985
9999999
Not Available
22
PIVOT TUBE BUSHING
5020561
9999999
Not Available
23
NUT FLEXLOC
7542402
9999999
Not Available
24
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
25
SPACER R.PIVOT ARM
5333026
9999999
Not Available
26
ROD SHOCK BLK.
1540967067
Not Available
27
SPACER
5333028
9999999
Not Available
28
SCREW
7512463
9999999
Not Available
29
NUT FLEX-LOC
7542303
9999999
Not Available
30
BUSHING
5430537
$7,34 Unit Price incl. VAT
31
BUSHING R.SHOCK
5333030
9999999
Not Available
32
BOLT
7512329
$7,34 Unit Price incl. VAT
33
SHOCK R.TRACK FOX
7041403
Not Available
34
BUSHING 1.40
5020657
9999999
Not Available
35
BUSHING SHOCK .340
5431542
9999999
Not Available

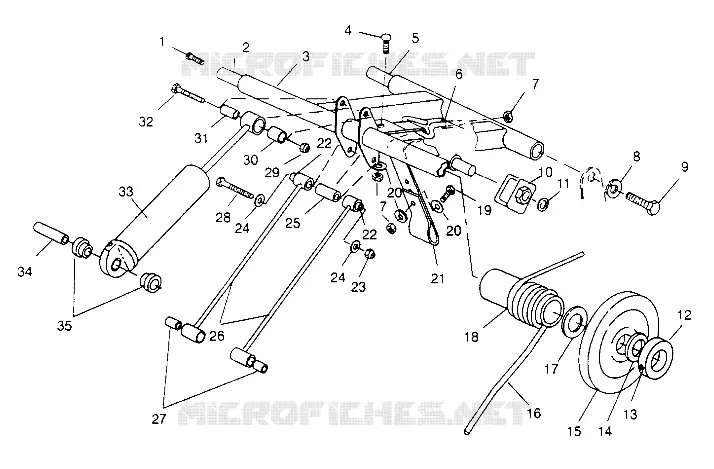

Find the detailed REAR TORQUE ARM 440 XCR SP X951660 (4932833283B014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
