1
Engine displacement
440
2
Year
1995
3
Trim
440 XCR SP - X951660
4
Parts Catalog
WATER PUMP 440 XCR SP X951660 (4932833283C011)
5
Parts Diagram
Parts Catalog
CYLINDER 440 XCR SP X951660 (4932833283C010)
by
PISTON CRANKSHAFT 440 XCR SP X951660 (4932833283C012)
WATER PUMP 440 XCR SP X951660 (4932833283C011)
1
2
3
4
5
6
7
8
9
1
SCREW&WASHER ASM.(10)
3084221
9999999
Not Available
2
O-RING
3082746
9999999
Not Available
3
CASING PUMP 2
3083683
9999999
Not Available
4
WASHER
3082505
9999999
Not Available
5
BOLT&WASHER ASM.
3083370
9999999
Not Available
6
GASKET WATER PUMP
3083367
9999999
Not Available
7
WATERPUMP
3083471
9999999
Not Available
8
BELT
3082747
9999999
Not Available
9
PULLEY
3083371
9999999
Not Available

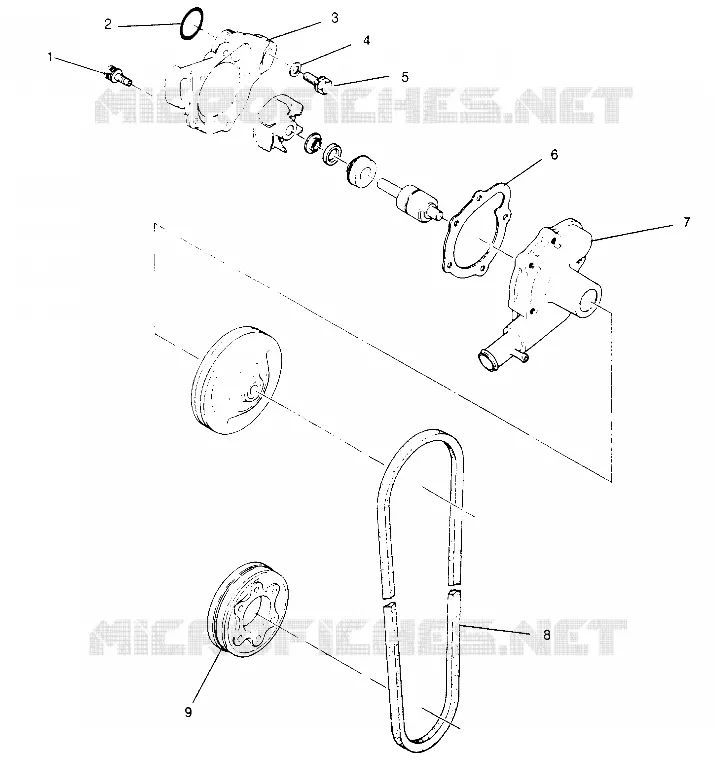

Find the detailed WATER PUMP 440 XCR SP X951660 (4932833283C011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
