1
Engine displacement
440
2
Year
1995
3
Trim
440 XCR SP - X951660
4
Parts Catalog
FOX SHOCK
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH ASSEMBLY 440 XCR SP X951660 (4932833283C001)
by
FOX SHOCK-GAS, MIDDLE 440 XCR SP X951660 (4932833283C007)
FOX SHOCK
-
1
2
3
4
5
6
6
6
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
14
15
16
17
18
19
20
20
20
20
-
SHOCK IFS FOX
7041401
9999999
Not Available
1
BUSHING SHOCK
5431727
9999999
Not Available
2
BUSHING SHOCK .220
5431540
9999999
Not Available
3
RING RETAINING(10)
7710424
9999999
Not Available
4
BUMPER JOUNCE
5410855
9999999
Not Available
5
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT
6
SCREW
1500018
9999999
Not Available
6
O-RING DRUM OUTER
1500022
9999999
Not Available
7
PISTON
1500011
9999999
Not Available
8
O-RING ENDCAP
1500003
9999999
Not Available
9
FLOATING PISTON RING
1500006
$34,64 Unit Price incl. VAT
10
SCREW
1500070
9999999
Not Available
10
WIPER CLR OUTER
1500024
5433298
$23,09 Unit Price incl. VAT
10
O-RING INNER
1500021
9999999
Not Available
10
WIPER INNER
1500025
1500266
$52,49 Unit Price incl. VAT
10
BALL; (FOX)
1500071
$10,49 Unit Price incl. VAT
10
BEARING ASM(.900 W/BLEED)
1500090
9999999
Not Available
10
O-RING; .103 X 1.299
1500020
9999999
Not Available
11
BUSHING 1.16 IN
5020613
9999999
Not Available
12
BUSHING (1.34 IN.)
5020612
9999999
Not Available
13
SCREW
1500019
9999999
Not Available
13
O-RING OUTER
1500023
9999999
Not Available
13
VALVE ASM;AIR
1500072
9999999
Not Available
13
AIR VALVE ASSEMBLY
1500014
9999999
Not Available
14
O-RING BODY FOX .139W-1.234ID
1500004
9999999
Not Available
15
CAP BODY
1500073
Not Available
16
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
17
PLATE BACKUP
1500015
9999999
Not Available
18
DAMPER; PISTON RING
1500002
9999999
Not Available
19
PLATE TOP OUT
1500017
9999999
Not Available
20
KIT VALV.PISTON
2200618
9999999
Not Available
20
EYELET
1500089
9999999
Not Available

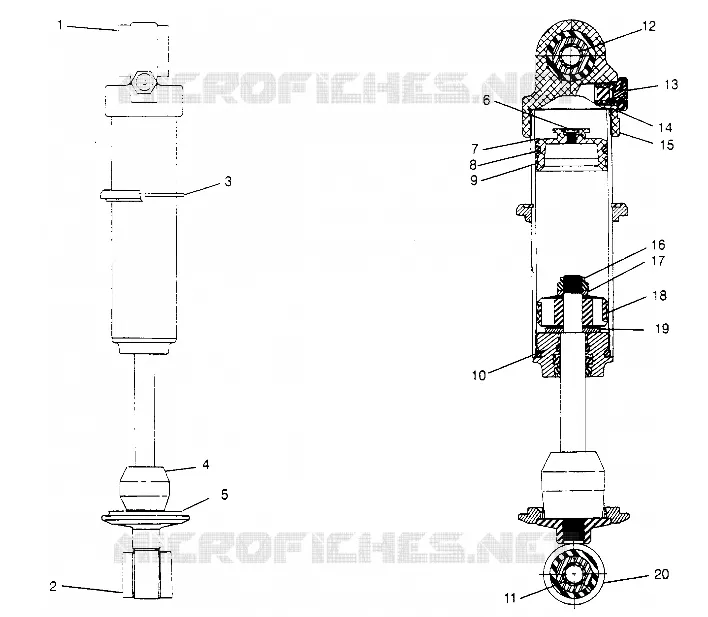

Find the detailed FOX SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
