Engine displacement
autre
2
Year
1989
3
Trim
TRAIL BOSS 4X4 - W898127
4
Parts Catalog
PARKING BRAKE ASSEMBLY 4X4--UPDATED 4/89 (49173717370051)
5
Parts Diagram
Parts Catalog
SHIFT LINKAGE ASSEMBLY 4X4--UPDATED 4/89 (49173717370040)
by
PARKING BRAKE ASSEMBLY 4X4--UPDATED 4/89 (49173717370051)
1
1
2
2
3
4
5
6
7
7
7
7
8
8
9
10
11
12
12
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
1
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
1
PUSHNUT; RED(10)
7670063
9999999
Not Available
2
BUSHING PARK BRAKE(10) [No Longer Available]
5431166
Not Available
2
SCREW
7515415
9999999
Not Available
3
RETAINER; SHOCK
5222118
5251753
$19,94 Unit Price incl. VAT
3
BRACKET Substituted by 5222379-067
5222379
Not Available
4
COMPRESSION SPRING; REAR; GS BLK
7041204067
Not Available
4
ROD PUSH
5224409
Not Available
5
PIN; COTTER
7661103
9999999
Not Available
5
SHOCK REAR
7041218
7041448
$283,49 Unit Price incl. VAT
6
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
6
CAM ADJUSTING SPRING
5630334
9999999
Not Available
7
SCREW
7511989
9999999
Not Available
7
OIL SEAL
3610016
9999999
Not Available
8
BRAKE LOCK ASM;FRONT
2050042
9999999
Not Available
8
WASHER
7555779
9999999
Not Available
9
SUPPORT
3231517
9999999
Not Available
9
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
10
ROLLERCHAIN GUIDE
5431003
9999999
Not Available
11
NUT CROWN LOCK
7542601
9999999
Not Available
12
BOLT LOCK PLATE
5220958
9999999
Not Available
13
BOLT SHOULDER
7512702
9999999
Not Available
14
BUSHING MACH.(10)
7555752
9999999
Not Available
15
BEARING
3576507
9999999
Not Available
16
BUSHING SWING ARM
5010237
9999999
Not Available
17
ARM; SWING
1580048067
Not Available
18
RIVET
7621433
$2,09 Unit Price incl. VAT
19
GUIDE CHAIN
5431017
9999999
Not Available
20
FLANGED SCREW
7515304
9999999
Not Available
21
BUSHING
5332828
9999999
Not Available
22
GUARD CHAIN(MODIFIED)
5430952
9999999
Not Available
23
SCREW
7512252
9999999
Not Available
24
GUARD SWING ARM Substituted by 1040166-067
1040166
Not Available
25
WASHER
7552604
$3,14 Unit Price incl. VAT
26
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
27
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
28
DECAL HITCH Substituted by 7078261
7072533
Not Available
29
HITCH WELD.
1040162067
Not Available
30
BOLT
7512569
9999999
Not Available
31
HOUSING AXLE
5130663
9999999
Not Available
32
SHOULDER BOLT
7512701
9999999
Not Available
33
ADAPTER SPRING SEAT
5630351
9999999
Not Available
34
SPRING PROTECTOR SLEEVE
5431032
9999999
Not Available

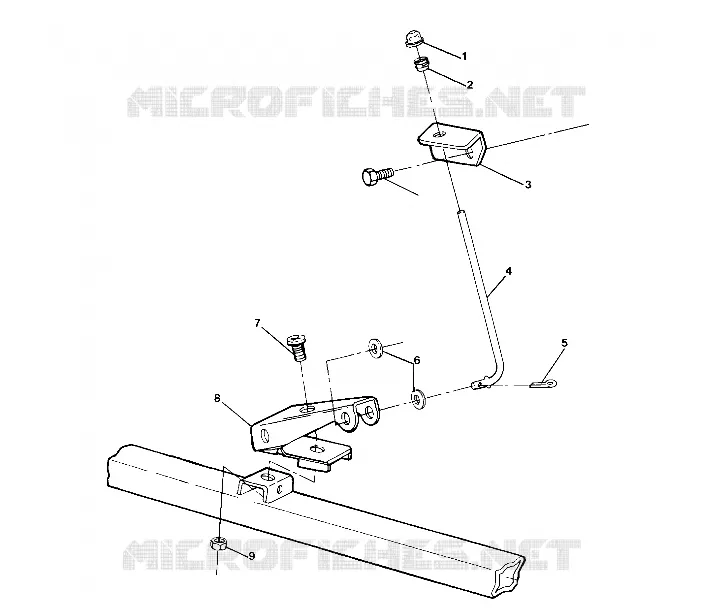

Find the detailed PARKING BRAKE ASSEMBLY 4X4--UPDATED 4/89 (49173717370051) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
