Engine displacement
autre
2
Year
1989
3
Trim
TRAIL BOSS 4X4 - W898127
4
Parts Catalog

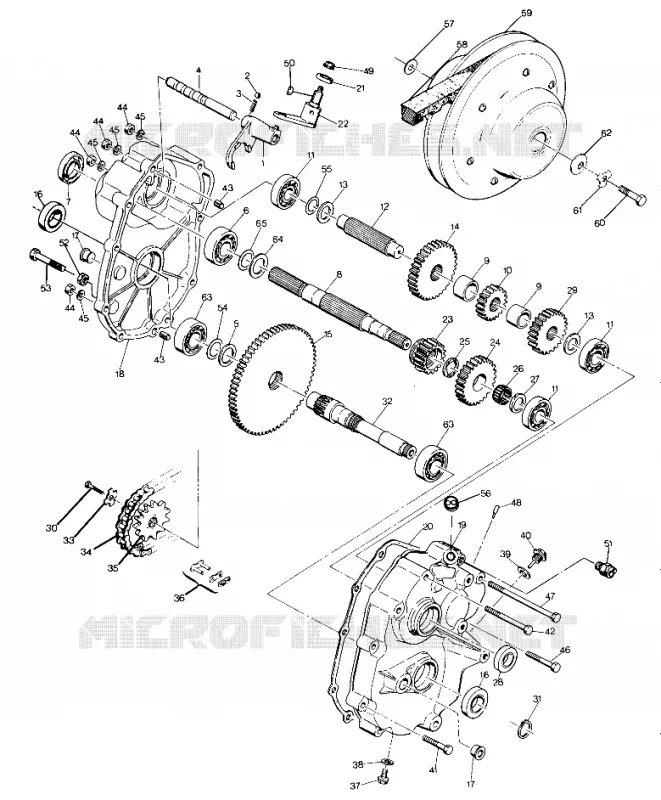

GEARCASE ASSEMBLY (ME25P5) (4916351635037A)
5
Parts Diagram
Parts Catalog
GEARCASE ASSEMBLY (ME253A) (4916351635035A)
by
FRONT BRAKE (4916351635039A)
GEARCASE ASSEMBLY (ME25P5) (4916351635037A)
-
1
2
3
4
5
6
7
8
9
9
10
11
11
11
12
13
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
35
35
35
35
35
35
35
36
37
38
39
40
41
42
43
43
44
44
44
44
45
45
45
45
46
47
48
49
50
51
52
53
54
54
54
54
55
55
55
55
51
57
58
59
60
61
62
63
63
-
GEARCASE ASM.(4X4)
1341057
9990000
Not Available
1
SHIFTER
3231501
9999999
Not Available
2
BALL STEEL
3231502
Not Available
3
SPRING
3231550
9999999
Not Available
4
SHAFT SHIFT
3231504
9999999
Not Available
5
WASHER
3231505
9999999
Not Available
6
BEARING
3231506
9999999
Not Available
7
SEAL OIL
3231507
9999999
Not Available
8
SHAFT INPUT
3231508
9999999
Not Available
9
COLLAR
3231509
Not Available
10
GEAR
3231510
9999999
Not Available
11
BEARING
3231511
9999999
Not Available
12
SHAFT
3231512
9999999
Not Available
13
WASHER
3231513
9999999
Not Available
14
GEAR
3231514
Not Available
15
GEAR
3231515
9999999
Not Available
16
SEAL OIL Substituted by 3231516
3231570
Not Available
17
SUPPORT
3231517
9999999
Not Available
18
CASE LH
3231571
9999999
Not Available
19
CASE RH Substituted by 3231583
3231572
Not Available
20
PACKING
3231553
9999999
Not Available
21
SEAL OIL
3231521
9999999
Not Available
22
SHAFT SELECT
3231559
9999999
Not Available
23
GEAR Substituted by 3231585
3231523
Not Available
24
GEAR
3231524
9999999
Not Available
25
WASHER
3231525
Not Available
26
BEARING NEEDLE
3231526
9999999
Not Available
27
WASHER
3231527
9999999
Not Available
28
SEAL OIL
3231528
9999999
Not Available
29
GEAR
3231529
9999999
Not Available
30
BOLT(10)
7512391
9999999
Not Available
31
C RING
3231531
9999999
Not Available
32
SHAFT OUTPUT
3231573
9999999
Not Available
33
WASHER SHAKEPROOF 5/16
7577902
Not Available
34
CHAIN; DRIVE
3224043
9999999
Not Available
35
SPKT 13T (SPLINED)
3221045
3221041
$83,99 Unit Price incl. VAT
35
SPROCKET; 11 TOOTH
3221043
$73,49 Unit Price incl. VAT
35
SPROCKET; 12 TOOTH
3221044
$83,99 Unit Price incl. VAT
36
CONNECTOR LINK
3225024
9999999
Not Available
37
PLUG DRAIN 20MM MAGNET
3231569
9999999
Not Available
38
GASKET [No Longer Available]
3231538
Not Available
39
GASKET
3231539
9999999
Not Available
40
PLUG OIL
3231561
9999999
Not Available
41
BOLT [No Longer Available]
3231541
Not Available
42
BOLT [No Longer Available]
3231542
Not Available
43
PIPE KNOCK
3231543
9999999
Not Available
44
NUT(10) [No Longer Available]
3231544
Not Available
45
WASHER SPRING(10)
3231545
Not Available
46
BOLT [No Longer Available]
3231546
Not Available
47
BOLT [No Longer Available]
3231547
Not Available
48
PIPE BREATHER
3231548
Not Available
49
NUT LOCK
3231555
Not Available
50
KEY; HI-PRO
7721113
9999999
Not Available
51
SW REV./NEUT.INDIC.
4110062
$62,99 Unit Price incl. VAT
52
NUT
7542404
$3,14 Unit Price incl. VAT
53
BOLT
7515485
9999999
Not Available
54
SHIM 25 0.1
3231563
9999999
Not Available
54
SHIM 25 0.3
3231562
9999999
Not Available
55
SHIM 20 0.3
3231564
9999999
Not Available
55
SHIM 20 0.1
3231565
9999999
Not Available
56
SW REV./NEUT.INDIC.
4110062
$62,99 Unit Price incl. VAT
57
SPACER WASHER DRIVEN CLUTCH
5211041
9999999
Not Available
58
BELT-DRIVE(5)
3211048
3211077
$107,93 Unit Price incl. VAT
59
CLUTCH; DRIVEN
1322112
9999999
Not Available
60
BOLT
7515327
$10,49 Unit Price incl. VAT
61
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
62
DOMED WASHER
5220646
$4,19 Unit Price incl. VAT
63
BEARING
3231574
Not Available

Find the detailed GEARCASE ASSEMBLY (ME25P5) (4916351635037A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
