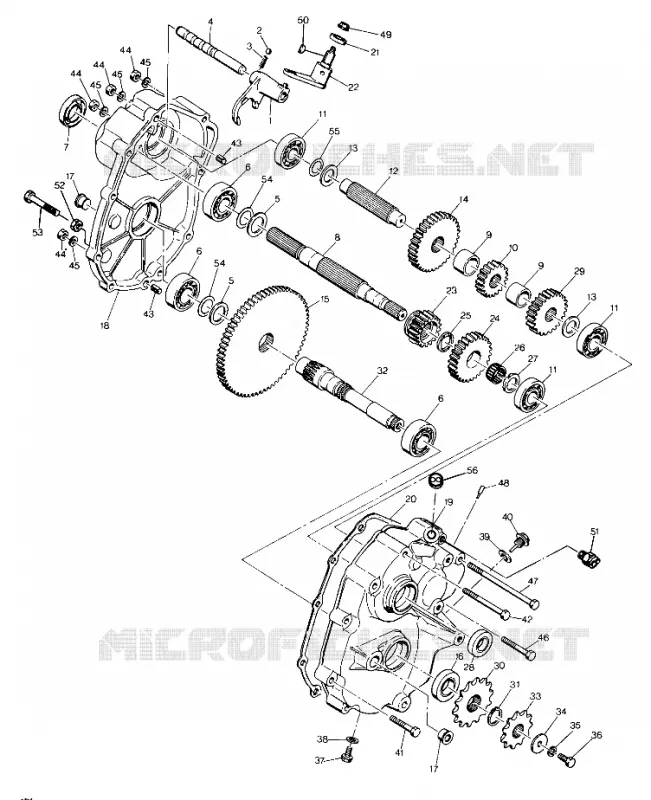

GEARCASE ASSEMBLY (ME253A) (4916351635035A)
5
Parts Diagram
Parts Catalog
WIRING HARNESS (4916351635033A)
by
GEARCASE ASSEMBLY (ME25P5) (4916351635037A)
GEARCASE ASSEMBLY (ME253A) (4916351635035A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
-
1
2
3
4
5
6
6
6
7
8
9
9
10
11
11
11
12
13
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
43
44
44
44
44
45
45
45
45
46
47
48
49
50
51
52
53
54
54
54
54
54
54
54
54
55
55
55
55
55
55
55
55
51
-
GEARCASE ASM.(4X4) [No Longer Available] (ME253A)
1341056
Not Available
1
SHIFTER
3231501
9999999
Not Available
1
SCREW; SEMS(10)
7511860
9999999
Not Available
2
SWITCH O RIDE REV.LIMIT
4110072
9999999
Not Available
2
BALL STEEL
3231502
Not Available
3
SPRING
3231550
9999999
Not Available
3
BRKT. O#RIDE SW.
5220837
Not Available
4
SHAFT SHIFT
3231504
9999999
Not Available
4
SCREW
7512011
9999999
Not Available
5
WASHER
3231505
9999999
Not Available
5
WASHER TOOTH-LOCK
7555780
9999999
Not Available
6
HOUSING MASTER CYL.
5630312
2050073
$456,74 Unit Price incl. VAT
6
BEARING
3231506
9999999
Not Available
7
SEAL OIL
3231507
9999999
Not Available
7
BRAKE LOCK ASM.
2050040
9999999
Not Available
8
SHAFT INPUT
3231508
9999999
Not Available
8
SCREW; SEMS(10)
7512010
9999999
Not Available
9
COLLAR
3231509
Not Available
9
WASHER
7555708
9999999
Not Available
10
GEAR
3231510
9999999
Not Available
10
COMPRESSION SPRING
7041203
9999999
Not Available
11
BEARING
3231511
9999999
Not Available
11
U-PACKING SEAL
5410164
9999999
Not Available
12
SHAFT
3231512
9999999
Not Available
12
O-RING
5410163
$3,14 Unit Price incl. VAT
13
WASHER
3231513
9999999
Not Available
13
PISTON
5020511
9999999
Not Available
14
SCREW;SET(10)
7512308
9999999
Not Available
14
GEAR
3231514
Not Available
15
GEAR
3231515
9999999
Not Available
15
BUSHING
5332892
Not Available
16
LEVER BRAKE
5610106
9999999
Not Available
16
SEAL OIL
3231516
9999999
Not Available
17
SUPPORT
3231517
9999999
Not Available
17
SCREW SEMS
7511859
9999999
Not Available
18
CASE; LH
3231551
9999999
Not Available
18
COVER RESERVOIR
5630127
9999999
Not Available
19
GASKET
5410487
Not Available
19
CASE RH
3231558
Not Available
20
BAFFLE MASTER CYL.
5410512
9999999
Not Available
20
PACKING
3231553
9999999
Not Available
21
SEAL OIL
3231521
9999999
Not Available
21
GRIP HANDLEBAR
5431025
Not Available
21
GRIP; HANDLE BAR
5410416
5433834-070
$52,49 Unit Price incl. VAT
22
LINE BRAKE UP. W/FTGS.
1930633
1930748
$167,99 Unit Price incl. VAT
22
SHAFT SELECT
3231559
9999999
Not Available
23
GEAR Substituted by 3231585
3231523
Not Available
23
FITTING TEE
7052044
Not Available
24
GEAR
3231524
9999999
Not Available
24
LINE;BRAKE;R.;W/FTGS.
1930632
9999999
Not Available
25
WASHER
3231525
Not Available
25
LINE BRAKE LH.FRT W/FTGS.
1930631
9999999
Not Available
26
PAD GAS TANK [No Longer Available]
5850040
Not Available
26
BEARING NEEDLE
3231526
9999999
Not Available
27
WASHER
3231527
9999999
Not Available
27
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
28
LINE BRAKE RH FRT.
1930634
9999999
Not Available
28
SEAL OIL
3231528
9999999
Not Available
29
CABLE; THROTTLE
7080370
9999999
Not Available
29
GEAR
3231529
9999999
Not Available
30
LEVER
2010049
9999999
Not Available
30
SPROCKET
3231530
3221044
$83,99 Unit Price incl. VAT
31
HOUSING; THROTTLE
5130673
9999999
Not Available
31
C RING
3231531
9999999
Not Available
32
SHAFT; OUTPUT
3231578
9999999
Not Available
32
ARM THROTTLE [No Longer Available]
2010069
Not Available
33
SPROCKET
3231533
9999999
Not Available
33
WASHER [No Longer Available]
2010052
Not Available
34
WASHER [No Longer Available]
3231534
Not Available
34
NUT
2010053
Not Available
35
COVER;THROTTLE CONTROL
5430804
9999999
Not Available
35
WASHER SPRING [No Longer Available]
3231535
Not Available
36
SCREW
2010054
Not Available
36
BOLT
3231536
9999999
Not Available
37
PLUG DRAIN 8MM.MAGNET
3231568
Not Available
37
HOLDER LEVER LOW.1
2050005
Not Available
38
GASKET [No Longer Available]
3231538
Not Available
38
SCREW&WASHER
2010047
Not Available
39
GASKET
3231539
9999999
Not Available
40
PLUG OIL
3231561
9999999
Not Available
41
BOLT [No Longer Available]
3231541
Not Available
42
BOLT [No Longer Available]
3231542
Not Available
43
PIPE KNOCK
3231543
9999999
Not Available
44
NUT(10) [No Longer Available]
3231544
Not Available
45
WASHER SPRING(10)
3231545
Not Available
46
BOLT [No Longer Available]
3231546
Not Available
47
BOLT [No Longer Available]
3231547
Not Available
48
PIPE BREATHER
3231548
Not Available
49
NUT LOCK
3231555
Not Available
50
KEY; HI-PRO
7721113
9999999
Not Available
51
SW REV./NEUT.INDIC.
4110062
$62,99 Unit Price incl. VAT
52
NUT
7542404
$3,14 Unit Price incl. VAT
53
BOLT
7515485
9999999
Not Available
54
SHIM 25 0.1
3231563
9999999
Not Available
54
SHIM 25 0.3
3231562
9999999
Not Available
55
SHIM 20 0.3
3231564
9999999
Not Available
55
SHIM 20 0.1
3231565
9999999
Not Available
56
SW REV./NEUT.INDIC.
4110062
$62,99 Unit Price incl. VAT

Find the detailed GEARCASE ASSEMBLY (ME253A) (4916351635035A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for TRAIL BOSS 4X4 - W898127

BODYWORK 4X4-UPDATED 4/89 (4916351635001A)

BODYWORK 4X4-UPDATED 4/89 (4916351635001A)

for TRAIL BOSS 4X4 - W898127 from 1989

FRAME ASSEMBLY WITH RACKS 4X4-UPDATED 4/89 (4916351635003A)

FRAME ASSEMBLY WITH RACKS 4X4-UPDATED 4/89 (4916351635003A)

for TRAIL BOSS 4X4 - W898127 from 1989

ENGINE AND MUFFLER MOUNTING (4916351635005A)

ENGINE AND MUFFLER MOUNTING (4916351635005A)

for TRAIL BOSS 4X4 - W898127 from 1989

HEADLIGHT ASSEMBLY (4916351635007A)

HEADLIGHT ASSEMBLY (4916351635007A)

for TRAIL BOSS 4X4 - W898127 from 1989

FRONT TIGHTENER ASSEMBLY-PN 1380024 (4916351635013B)

FRONT TIGHTENER ASSEMBLY-PN 1380024 (4916351635013B)

for TRAIL BOSS 4X4 - W898127 from 1989

STEERING ASSEMBLY (4916351635015A)

STEERING ASSEMBLY (4916351635015A)

for TRAIL BOSS 4X4 - W898127 from 1989

Control Assembly (4916351635017A)

Control Assembly (4916351635017A)

for TRAIL BOSS 4X4 - W898127 from 1989

STRUT ASSEMBLY (4916351635019A)

STRUT ASSEMBLY (4916351635019A)

for TRAIL BOSS 4X4 - W898127 from 1989

DRIVE CLUTCH ASSEMBLY (4916351635028A)

DRIVE CLUTCH ASSEMBLY (4916351635028A)

for TRAIL BOSS 4X4 - W898127 from 1989

DRIVEN CLUTCH ASSEMBLY (4916351635029A)

DRIVEN CLUTCH ASSEMBLY (4916351635029A)

for TRAIL BOSS 4X4 - W898127 from 1989

RIGHT HAND CHAIN COVER ASSEMBLY (4916351635030A)

RIGHT HAND CHAIN COVER ASSEMBLY (4916351635030A)

for TRAIL BOSS 4X4 - W898127 from 1989

RIGHT GEARCASE BRAKE MOUNTING (4916351635031A)

RIGHT GEARCASE BRAKE MOUNTING (4916351635031A)

for TRAIL BOSS 4X4 - W898127 from 1989

SHIFT LINKAGE ASSEMBLY (4916351635040A)

SHIFT LINKAGE ASSEMBLY (4916351635040A)

for TRAIL BOSS 4X4 - W898127 from 1989

CRANKCASE AND CYLINDER (4916351635043A)

CRANKCASE AND CYLINDER (4916351635043A)

for TRAIL BOSS 4X4 - W898127 from 1989

CRANKSHAFT AND PISTON ASSEMBLY (4916351635044A)

CRANKSHAFT AND PISTON ASSEMBLY (4916351635044A)

for TRAIL BOSS 4X4 - W898127 from 1989

OIL PUMP ASSEMBLY (4916351635045A)

OIL PUMP ASSEMBLY (4916351635045A)

for TRAIL BOSS 4X4 - W898127 from 1989

TOOL KIT ASSEMBLY (4916351635050A)

TOOL KIT ASSEMBLY (4916351635050A)

for TRAIL BOSS 4X4 - W898127 from 1989

STEERING ASSEMBLY 4X4 -- UPDATED 4/89 (49173717370015)

STEERING ASSEMBLY 4X4 -- UPDATED 4/89 (49173717370015)

for TRAIL BOSS 4X4 - W898127 from 1989

FRONT WHEEL ASSEMBLY 4X4-UPDATED 4/89 (49173717370021)

FRONT WHEEL ASSEMBLY 4X4-UPDATED 4/89 (49173717370021)

for TRAIL BOSS 4X4 - W898127 from 1989

AIR BOX (4916351635008A)

AIR BOX (4916351635008A)

for TRAIL BOSS 4X4 - W898127 from 1989

FUEL TANK ASSEMBLY (4916351635009A)

FUEL TANK ASSEMBLY (4916351635009A)

for TRAIL BOSS 4X4 - W898127 from 1989

FRONT DRIVE ASSEMBLY (4916351635011A)

FRONT DRIVE ASSEMBLY (4916351635011A)

for TRAIL BOSS 4X4 - W898127 from 1989

DETAILS-FRONT DRIVE ASSEMBLY CENTER TIGHTENER ASSEMBLY-PN 1380023 (4916351635013A)

DETAILS-FRONT DRIVE ASSEMBLY CENTER TIGHTENER ASSEMBLY-PN 1380023 (4916351635013A)

for TRAIL BOSS 4X4 - W898127 from 1989

FRONT WHEEL ASSEMBLY 4X4-UPDATED 4/89 (4916351635021A)

FRONT WHEEL ASSEMBLY 4X4-UPDATED 4/89 (4916351635021A)

for TRAIL BOSS 4X4 - W898127 from 1989

REAR WHEEL DRIVE ASSEMBLY (4916351635023A)

REAR WHEEL DRIVE ASSEMBLY (4916351635023A)

for TRAIL BOSS 4X4 - W898127 from 1989

SWING ARM WELDMENT AND REAR SHOCK ASSEMBLY (4916351635025A)

SWING ARM WELDMENT AND REAR SHOCK ASSEMBLY (4916351635025A)

for TRAIL BOSS 4X4 - W898127 from 1989

CLUTCH COVER ASSEMBLY (4916351635027A)

CLUTCH COVER ASSEMBLY (4916351635027A)

for TRAIL BOSS 4X4 - W898127 from 1989

REAR BRAKE ASSEMBLY 4X4-UPDATED 4/89 (4916351635032A)

REAR BRAKE ASSEMBLY 4X4-UPDATED 4/89 (4916351635032A)

for TRAIL BOSS 4X4 - W898127 from 1989

WIRING HARNESS (4916351635033A)

WIRING HARNESS (4916351635033A)

for TRAIL BOSS 4X4 - W898127 from 1989

GEARCASE ASSEMBLY (ME253A) (4916351635035A)

GEARCASE ASSEMBLY (ME253A) (4916351635035A)

for TRAIL BOSS 4X4 - W898127 from 1989

GEARCASE ASSEMBLY (ME25P5) (4916351635037A)

GEARCASE ASSEMBLY (ME25P5) (4916351635037A)

for TRAIL BOSS 4X4 - W898127 from 1989

FRONT BRAKE (4916351635039A)

FRONT BRAKE (4916351635039A)

for TRAIL BOSS 4X4 - W898127 from 1989

CARBURETOR ASSEMBLY (4916351635046A)

CARBURETOR ASSEMBLY (4916351635046A)

for TRAIL BOSS 4X4 - W898127 from 1989

STARTING MOTOR ASSEMBLY (4916351635047A)

STARTING MOTOR ASSEMBLY (4916351635047A)

for TRAIL BOSS 4X4 - W898127 from 1989

MAGNETO ASSEMBLY (4916351635048A)

MAGNETO ASSEMBLY (4916351635048A)

for TRAIL BOSS 4X4 - W898127 from 1989

RECOIL STARTER ASSEMBLY (4916351635049A)

RECOIL STARTER ASSEMBLY (4916351635049A)

for TRAIL BOSS 4X4 - W898127 from 1989

BODYWORK 4X4-UPDATED 4/89 (49173717370001)

BODYWORK 4X4-UPDATED 4/89 (49173717370001)

for TRAIL BOSS 4X4 - W898127 from 1989

FRAME ASSEMBLY WITH RACKS 4X4-UPDATED 4/89 (49173717370003)

FRAME ASSEMBLY WITH RACKS 4X4-UPDATED 4/89 (49173717370003)

for TRAIL BOSS 4X4 - W898127 from 1989

FRONT DRIVE ASSEMBLY (49173717370011)

FRONT DRIVE ASSEMBLY (49173717370011)

for TRAIL BOSS 4X4 - W898127 from 1989

REAR BRAKE ASSEMBLY 4X4-UPDATED 4/89 (49173717370032)

REAR BRAKE ASSEMBLY 4X4-UPDATED 4/89 (49173717370032)

for TRAIL BOSS 4X4 - W898127 from 1989

SHIFT LINKAGE ASSEMBLY 4X4--UPDATED 4/89 (49173717370040)

SHIFT LINKAGE ASSEMBLY 4X4--UPDATED 4/89 (49173717370040)

for TRAIL BOSS 4X4 - W898127 from 1989

PARKING BRAKE ASSEMBLY 4X4--UPDATED 4/89 (49173717370051)

PARKING BRAKE ASSEMBLY 4X4--UPDATED 4/89 (49173717370051)

for TRAIL BOSS 4X4 - W898127 from 1989

POLARIS TRAIL BOSS 4X4 - W898127 1989

TRAIL BOSS 4X4 - W898127

TRAIL BOSS 4X4 - W898127

Model : TRAIL BOSS 4X4

Engine capacity : autre

Year : 1989

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
